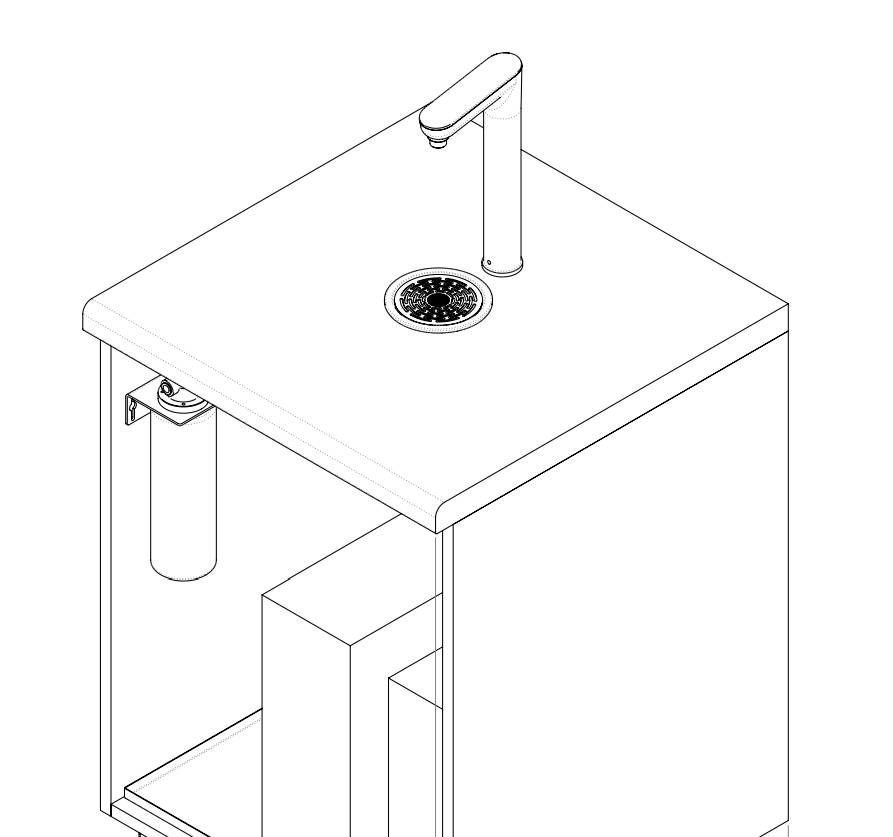

Aqua illi - Boiling & Ambient (BA) Water Tap - Fully Integrated Water Tap System
Verified by manufacturer 6 days ago
Aqua illi BA tap, no extension
Aqua illi BA tap, no extension
Fully integrated water tap system delivering purified hot and ambient water; available in polished and matte black as standard.
Application
Suitable for a variety of environments including workplace and offices, education, healthcare and hospitality.
Particularly suitable for glasses, cups and short bottles in the following applications:
- Office/workplace breakout rooms.
- Executive lounges.
- Staff rooms.
- Wellness and spa areas.
Description
The Aqua illi is a fully integrated tap system for modern workplaces, delivering purified hot and ambient water in a sleek design that seamlessly complements any interior for effortless, dependable hydration.
Features and benefits:
- Robust - intuitive - beautifully minimal.
- Designed to withstand high daily use.
- Engineered for teams who value form and function.
- Less visual clutter - more clarity.
- Patented boiler design gives high volumes of boiling water.
- Featuring Aqua Purifier four-stage + PFAS/ microplastic filtration.
- Installed in modular form.
- Perfect water flow.
- Continuous and timed dispensing modes to accommodate precise fill volumes.
- Tap height extensions are available for dispensing into a variety of vessel sizes.
- Plumbed-to-waste.
- Flush-fitting drip tray.
- Safe hot dispense with a touch padlock feature.
- Removable dispense nozzle for improved hygiene.
- Equality Act - Compliant options available.
- Regulation 4 Certified.
General information
Color | Black Silver Other Beige Blue |
Finish | Matt Polished Coated Chrome Electro polished |
Material | Steel |
Shape | Other |
Length | 155 mm Guidance for specification option: Spout depth (overall). 600 mm Guidance for specification option: Cabinet (external). |
Width | 45 mm Guidance for specification option: Spout diameter. 600 mm Guidance for specification option: Cabinet (external). |
Height | 298 mm Guidance for specification option: Spout height (overall; no extension). 358 mm Guidance for specification option: Spout height (overall; with 60 mm extension). 408 mm Guidance for specification option: Spout height (overall; with 110 mm extension). 1198 mm Guidance for specification option: Spout and cabinet height (overall; no spout extension). 1258 mm Guidance for specification option: Spout and cabinet height (overall; with 60 mm spout extension). Manufacturer guidanceSpout height (overall). |
Warranty description | One year |
Uniclass | |
CAWS | N12/380 Sinks, taps, traps and wastes N11/30 Sinks, taps, traps and wastes N11/350 Sinks, taps, traps and wastes N12/380 Sinks, taps, traps and wastes |
Specification data - Instant boiling and cold water taps
Classification data | |
Water | Boiling, ambient. |
Duty | |
Tank capacity | Up to 45 litres. |
Hot cups | 180 per hour at 250 mL. Guidance for specification option: Glasses for boiling/ ambient water. |
Dimensions | Tap: 298 mm high; 155 mm deep; 45 mm diameter column. Cabinet: 900 x 600 x 600 mm. Guidance for specification option:
|
Electrical connection | |
Power | 3 No. 50 Hz single switched 13 A power sockets. |
Voltage | 220–240 V. |
Water inlet | 1 No. potable cold mains water supply terminating in a 15 mm Ballofix isolation valve - compression connection. |
Safety features | Touch operated. |
Components | Touch tap; flush-fitting round drip tray; CTO filter; purifier storage tank; purifier; standard boiler. |
Colour/ Finish | Polished chrome. Satin black. Aqua Libra Studio. Guidance for specification option: Bespoke colour matching - consult manufacturer for details of colour, material and finish options, and insert requirements. |
Extension | Not applicable. Guidance for specification option: 234 mm dispense height; 298 overall visible height. |
Accessories | Cover plate. Guidance for specification option: Cover plate options available for replacing existing fixtures. Colour/ finish to match tap unless specified otherwise. Not required. |
Water pressure | 2.5 bar (minimum). |
Flowrate | 300 L/h (minimum). |
Ventilation | Required. Guidance for specification option:
|
Power consumption | Peak: 1650 W. |
Current | Peak: 8 A. |
Waste | Requires 40 mm upstand trapped waste pipe, 500 mm high. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Steel |
Literature
Aqua illi BA- 110 EXT product information
Aqua illi BA- 60EXT product information
Aqua illi BA product information
