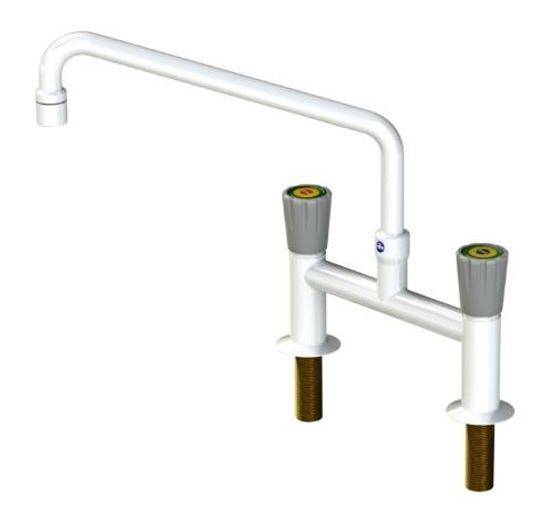

Arboles UK 'H' Pattern Mixer Tap With Movable Swan Neck

Name: Arboles UK 'H' Pattern Mixer Tap With Movable Swan Neck
Brand: Arboles UK Ltd
SKU: j3YWhf7XruLzud2LVXMXAg

Verified by manufacturer 6 months ago

Balanced flow swivel swan neck hot and cold mixer tap with aerated nozzle.

Jump to:

Application

Standard laboratory mixer water tap for all applications where header tank supply is present (full WRAS approval).

Balanced flow swivel swan neck hot and cold mixer tap with aerated nozzle.

Features and benefits:

Construction: All brass body rilsan plastic coated, white (RAL 9016). Grey rotating handwheels, identification coding to DIN 13792.
Options: Removable or full-bore nozzles are available on request.
Connection and mounting: 2 x ½” BSP male flat ended shanks x 60 mm long with back nut. Two mounting holes 22 mm diameter at 178 mm centres are required.
Pressure and flow: Maximum pressure 100 PSI (Recommended 20 PSI).
Flow Rate at 20 PSI = 35 L/min.
Spares: Spare handwheel assembly, part number: 960180; Valve headworks, part number: 950148.
WRAS approved.

Color	White Guidance for specification option: RAL 9016.
Finish	Coated Guidance for specification option: Rilsan plastic coated. Manufacturer guidance As per manufacturer.
Material	Brass
Shape	Other
Length	250 mm
Width	178 mm
Height	330 mm
Warranty description	Five year

Uniclass	Pr_40_20_87_99 Washbasin thermostatic water supply setsPrimary
CAWS	N10/130 Laboratory furniture N13/335 Washbasins N13/30 Washbasins

Approvals	Water Regulations Advisory Scheme (WRAS) approved.
Form	Mixer taps.
Materials	-
Body	Brass.
Finish and colour	Rilsan plastic coated, white (RAL9016).
Flow rate (maximum)	35 L/minute at 20 psi. Guidance for specification option: Maximum pressure 100 psi (recommended 20 psi).
Integral accessories	Not required. Spare handwheel assembly. Guidance for specification option: Pt No 960180. Valve headworks. Guidance for specification option: Pt Nos 950148.

Options	Removeable nozzles. Full-bore nozzles.
Connection	2 x ½” BSP male flat ended shanks x 60 mm long with back nut.
Mounting	Two mounting holes 22 mm diameter at 178 mm centres are required.
Base	∅50 mm.
Height	330 mm (overall); 240 mm (nozzle).
Projection	250 mm.
Width	178 mm.
