Architectural Slimline Cam Action Concealed Door Closer Size EN 2-4 (HUKP-0204-01) - Door accessories
Verified by manufacturer 15 days ago

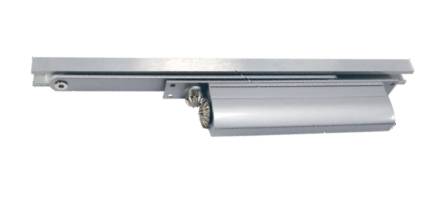

Cam action concealed door closer.
Application
- Suitable for single action only, for minimum door thickness of 44 mm and for installation into top rail of door.
- For use on timber fire doors with separate intumescent pack.
- Not suitable for steel doors and frames.
Description
Cam action concealed door closer.
Features and benefits:
- Power adjustable by spring, closing speed and latch action.
- Maximum opening angle 105° - single action.
- Power size EN 2-4.
- Maximum door weight 80 kg.
- Maximum door width 1100 mm.
General information
Color | Silver Gold Black Bronze Manufacturer guidanceRAL colour available to special order. |
Finish | Matt Polished Satin |
Material | Stainless steel |
Shape | Rectangle |
Length | 215 mm |
Width | 32 mm |
Height | 51 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | P21/12 Controlled door closers P21/410 Controlled door closers |
Product range |
Specification data - Controlled door closers
Standard | To BS EN 1154 and BS 8300. |
Classification grades (minimum) | |
Category of use | 3. |
Durability | 8. |
Door closer power size | 4. |
Safety | 1. |
Form | Overhead, concealed. |
Closer functions | Latching. |
Materials and finishes | |
Bodies | Stainless steel.Satin.Matt.Polished. |
Arms | Stainless steel. |
Casings | Stainless steel. |
Colour | Satin stainless.Silver.Matt black.Light bronze.Dark bronze.Hafele black.Polished brass.Satin brass.RAL colour.Manufacturer guidanceOther finishes available to special order. |
Third-party certification | CE marked and Certifire approved CF 5783. |
Dimensions | 215 x 32 x 57 mm. Guidance for specification option: Length x width x height. |
Maximum weight | 80 kg. Guidance for specification option: Maximum door weight. |
Opening | 105°. |
Sustainability data
Contains Red List materials | No |
Country of material origin | China |
Country of product manufacture | China |
Recyclability | Yes |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 97 % |
Literature
7. Project - Architectural Door Controls
