Armourcoat® Clay Lime Plaster Rammed Earth

Name: Armourcoat® Clay Lime Plaster Rammed Earth
Brand: Armourcoat Ltd
SKU: 5GeYjLMsvr3DpmfPRcRcWS

Verified by manufacturer 2 days ago

Armourcoat Ltd

Product certifications:

HPDC Certification
Certificate type
EPD
Certificate type

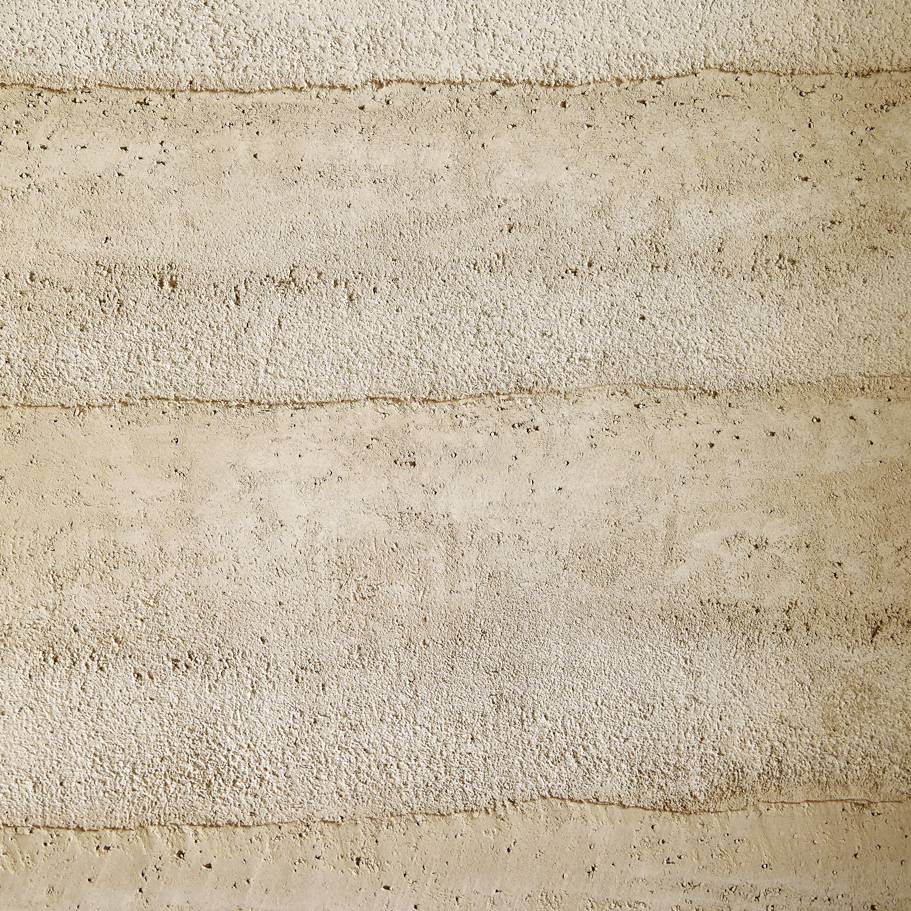

Organically layered rammed earth clay lime plaster finish with a deeply textured, raw aesthetic.

Jump to:

Request BIM

+44 (0)1732 460668 Website

Application

Suitability for Armourcoat Clay Lime Plaster Rammed Earth

Suitable for seamless internal application to walls and ceilings.
Suitable for well-ventilated areas exposed to moisture, but not suitable as a waterproof finish.
Can be applied directly to any stable, firm substrate that is ready for decoration, such as plastered or rendered masonry (block, brick or concrete), taped and skimmed boards such as plasterboard and GRG (glass-fibre reinforced gypsum), plasterboard surfaces prepared with Armourcoat Anti Crack skim coat, single sheet 18 mm primed MDF.
Substrate must adhere to a tolerance of +- 1 mm/600 mm or +-3 mm/1800 mm.
Suitable for existing painted walls and ceilings, provided the paint is well-adhered to the substrate.
Not suitable for papered surfaces.
Also available on pre-manufactured, ready-to-hang panels.

Materials and number of coats:

Plasterboard substrates to be prepared with gypsum skim coat and sealer or taped, jointed and sealed by others.
On unprepared plasterboard: Armourcoat AntiCrack skim coat plaster (typically 3–5 mm) applied by trowel.
System build-up comprising three to four coats (approximately 4–8 mm).

Description

Armourcoat Rammed Earth is a natural clay and lime plaster that reflects the aesthetic and craft of the traditional building method.

It is a naturally sustainable wall finish made from abundant raw earth materials such as unfired clay, limestone and recycled marble. It is a durable, breathable and sustainable wall finish that has been responsibly developed to maximize longevity, well-being and aesthetics whilst minimizing environmental impact.

It is water vapour-permeable and as such is suitable for traditional plastered masonry, including historic buildings.

Product attributes:

Zero VOC.
Indoor Air Comfort (IAC) Gold status.
Completely non-combustible: A1 reaction to fire classification, according to EN 13501-1:2018.
Low embodied carbon: 0.94–1.4 kg CO2e/m² (A1–A3).
High recycled content: 78%.
Durable.
Cement-free.
Naturally breathable.
Helps to regulate humidity.
Resistant to mould and mildew.
Biodegradable.
Can be recycled.
Colour matching service available.
Developed, manufactured, installed and guaranteed by Armourcoat in the UK.
Suitable for use with Armourcoat Anticrack, a reinforced gypsum skim-coat plaster which resists cracking at board joints and significantly improves impact resistance and durability of plasterboard construction. AntiCrack is a preparatory product that removes the need to use a gypsum skimcoat or tape and joint unprepared plasterboard walls.

General information

Color	Beige Black Blue Bronze Brown Copper Cream Green Grey Ivory Orange Pink Purple Red Turquoise White Yellow Other Show more Manufacturer guidance 15 standard colours available plus bespoke colour matching service
Finish	Waxed Guidance for specification option: Sealed with Armourcoat Aquawax as standard. Manufacturer guidance Coarsely textured finish.
Material	Clay Marble Lime
Shape	Formless
Length	Bespoke
Width	Bespoke
Height	Bespoke Guidance for specification option: Slight variation can occur due to the hand applied nature of the product. Manufacturer guidance Nominal thickness
Warranty description	Ten year

Uniclass	Pr_35_31_64_14 Clay plastersPrimary Pr_35_31_64_47 Lime plasters
CAWS	M20/42 Multicoat proprietary plaster M20/220 Multicoat proprietary plaster

Specification data - Clay plasters

Classification data
Colour	Bespoke.
Reaction to fire	To EN 13501-1:2018: A1.
VOC content	BREEAM International, exemplary level / Indoor Air Comfort, pass / Indoor Air Comfort Gold, pass / French CMR components, A+ / French VOC Regulation, pass / Italian CAM Edilizia, pass / ABG/AGBB, pass / Belgian Regulation, pass / CDPH, pass. Manufacturer guidance VOC Content / Emissions.
Weight	4–6 kg/m².
Thickness	4–8 mm.
Sealer	Armourcoat Aquawax as standard.
Recycled content (minimum)	78%.
Location	As drawing. Guidance for specification option: Show dimensions, also edge, corner and shadow joint beads by main contractor.
Preparatory reinforcing skimcoat	Not required. Armourcoat anti-crack. Guidance for specification option: Applied to pre-beaded plasterboard substrates where joints are left open in the top layer by 3–4 mm.

Sustainability data

Contains Red List materials	No
Country of material origin	Italy
Country of product manufacture	United Kingdom
Material	Clay Marble Lime
Carbon dioxide equivalent
Carbon dioxide equivalent, as defined in BS EN 15804 Certified
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/m²) Stage:A1–A3 ('Production stage') Normalised unit : Declared unit : 0.94-1.40
Recyclability	Yes
Recycled content As defined in clause 7.8 of BS EN ISO 14021	78 % Manufacturer guidance Uses pre-consumer recycled crushed marble.
Expected Life	Lifetime
