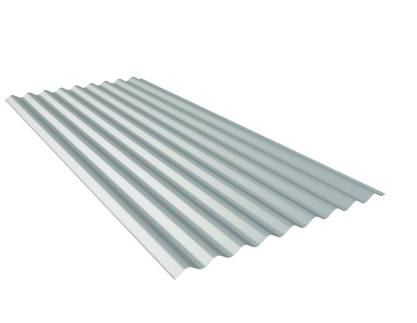

AS13/3 Profiled Sheeting
Verified by manufacturer 15 days ago
0.5 mm Steel
0.5 mm Steel
Steel cladding sheet for single skin roofs and walls.
Application
Suitable for single skin roofs and walls.
Description
18 mm deep steel cladding sheet for roofs and walls.
Features and benefits:
- Minimum roof pitch 4°, 6° if rooflights are required.
- Walls can be laid vertically.
- Available in 0.5 mm and 0.7 mm thicknesses and a variety of finishes.
General information
Color | Other Guidance for specification option: To standard colour charts. |
Finish | Galvanized Painted Plastisol |
Material | Steel |
Shape | Rectangle |
Length | Bespoke 1100 mm Guidance for specification option: Minimum. 8000 mm Guidance for specification option: Maximum. |
Width | 991 mm Manufacturer guidanceCover width. |
Height | 18 mm |
Warranty description | Manufacturer guidanceConsult manufacturer for details. |
Uniclass | |
CAWS | H31/10 Metal H31/120 Metal |
Specification data - Galvanized carbon steel profiled sheets
Standard | |
Sheet roofing products | To BS EN 14782. |
Material | To BS EN 508-1:2014. |
Designation | S220GD+Z275.S220GD+AZ150.S220GD+ZA255. |
Profile | |
Depth (overall) | 18 mm. |
Thickness (nominal) | 0.5 mm. |
Form | Sinusoidal. |
Dimensions | |
Profile height | 18 mm. |
Pitch | 76 mm. |
Cover width | 991 mm. |
Top surface (side 1) | |
Top surface finish | Plastisol PVC (P), 200 µm.Polyester SP, 25 µm.Colorcoat HPS200 Ultra®, 200 µm.Colorcoat Prisma®, 65 µm.Colorcoat® LG, 200 µm.Colorcoat® GP, 200 µm. |
Colour | Manufacturer guidanceTo standard colour charts. Consult manufacturer and insert requirements. |
Reaction to fire | |
External face | To BS EN 13501-1:2018, C-s3,d1 (plastisol coated (PVC) steel); A2-s1,d0 (polyester coated (SP) steel). |
Fire performance | To BS EN 13501-5:2016, Broof (T4). Manufacturer guidanceExternal fire performance. |
Length | 1100 mm (minimum); 8000 mm (maximum). Guidance for specification option: Insert requirements. |
Weight | 4.8 kg/m². Manufacturer guidanceNominal profile weight. |
Curve | Guidance for specification option: Insert requirements.
Manufacturer guidanceCurve options - smooth curving. |
Non-fragility rating | To ACR[M]001:2019, Class B. Guidance for specification option: When screw fixed as described in the installation section (consult manufacturer's literature for details). |
Sustainability data
Country of product manufacture | United Kingdom |
