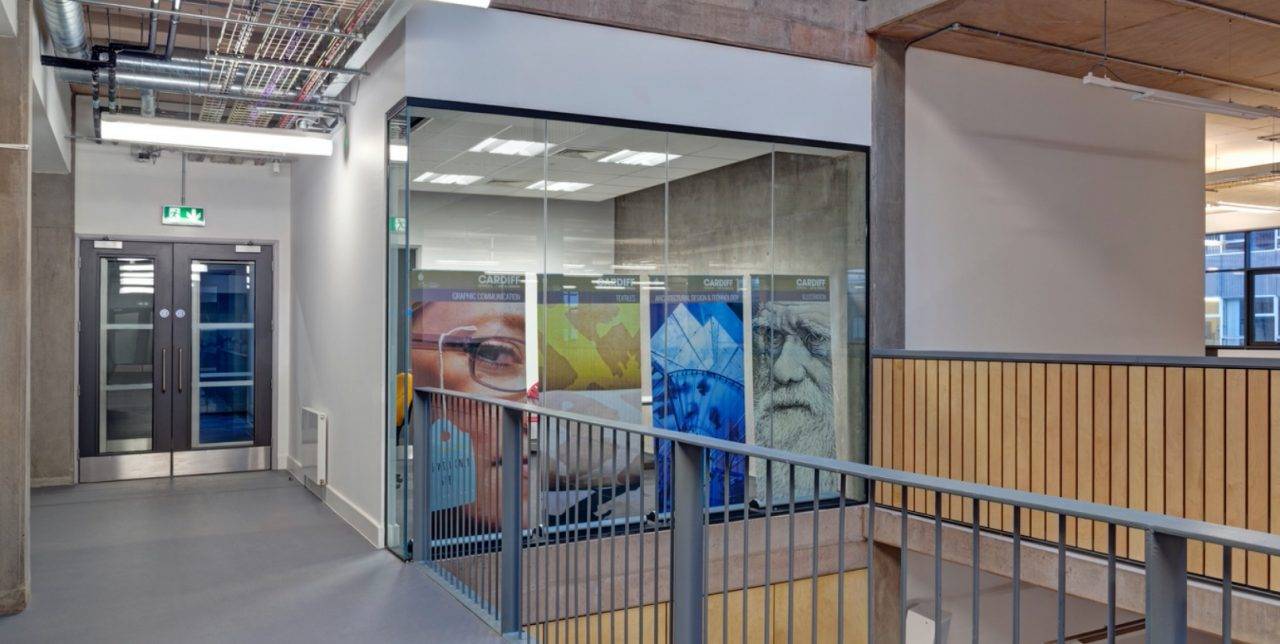

Atria/Structural Glazing

Name: Atria/Structural Glazing
Brand: Lusso Systems Ltd
SKU: tawingt6tZAZoAgD2KxznF

Verified by manufacturer 2 months ago

Lusso 25 Atria

Lusso Systems Ltd

A range of glazed partitions for atria and edge protection environments.

Jump to:

BOS

01275 372293 Website

Application

For use in a range of applications and sectors. These include commercial, education, healthcare, leisure, automotive, retail and technology.

Description

The increasing demand and requirement for atria and edge protection glazing can be met with Lusso's structural glazing systems. Atria glazing provides the option of edge protection glazing systems across the product range, from Lusso 25 frameless single glazed to Lusso 105M framed double glazed.

These systems incorporate various specialist strengthened laminate glass to provide barrier edge protection and high acoustic performance. Various configurations of Lusso's systems are available to achieve a line load of up to 3.0 kN/Lm.

Features and benefits:

Minimalistic powder-coated aluminium framework, in a variety of RAL colours and finishes.
A range of door options such as timber or glass, swing or sliding, with various ironmongery types.
Glass thicknesses from 6–17 mm.
Deflection head details available in ±15 mm and ±25 mm to accommodate building movement.
High acoustic performance ranging from 34–54 dB.
Suitable in atria and edge protection environments.
Free standing glazing options for contemporary style.

Please note that acoustic, fire-rated and structural certification and support for Lusso products and systems is available on a project-specific basis. Please contact Lusso's specification team directly for further information.

General information

Color	Other Guidance for specification option: RAL polyester powder-coated or anodized.
Finish	Powder-coated Polished Guidance for specification option: Chemically brightened. Anodized
Material	Glass Aluminium
Shape	Rectangle
Length	Bespoke Guidance for specification option: Please consult manufacturer for further details.
Width	Bespoke Guidance for specification option: Please consult manufacturer for further details.
Height	Bespoke Guidance for specification option: Please consult manufacturer for further details.
Warranty description	- Manufacturer guidance Based on a job specific basis, please contact Lusso for further information.

Uniclass	Pr_25_71_57_60 Partition panelsPrimary
CAWS	K30/10 Relocatable partition system K30/130 Relocatable partition system

Specification data - Partition panels

Third-party certification	Constructionline-Gold; Builders Profile; CHAS; FIRAS; SMAS; Acclaim (SIPP).
Unit size	-
Thickness	24 mm. 30 mm.
Partition height (nominal)	- Manufacturer guidance Insert requirements. Maximum standard height 3000 mm.
Width (nominal)	- Manufacturer guidance Insert requirements. For partitions over 1200 mm wide, consult with Lusso.
Deflection allowance (maximum)	-
Head	28 mm deep x 24 mm wide (no deflection). Guidance for specification option: To suit 10-12.8 mm glass. 50 mm deep x 24 mm wide (±15 mm deflection). Guidance for specification option: To suit 10-12.8 mm glass. 28mm deep x 30 mm wide (no deflection). Guidance for specification option: To suit 15-17 mm glass. 50 mm deep x 30 mm wide (±15 mm deflection). Guidance for specification option: To suit 15-17 mm glass. 80 mm deep x 30 mm wide (±25 mm deflection). Guidance for specification option: To suit 15-17 mm glass.
Floor	28 mm deep x 24 mm wide with clip-on-bead. Guidance for specification option: To suit 10-12.8 mm glass. 50 mm deep x 24 mm wide base track. Guidance for specification option: To suit 10-12.8 mm glass. 28 mm deep x 30 mm wide with clip-on-bead. Guidance for specification option: To suit 15-17 mm glass. 50 mm deep x 30 mm base track. Guidance for specification option: To suit 15-17 mm glass.
Verticals	28 mm deep x 24 mm wide with clip-on-bead. Guidance for specification option: To suit 10-12.8 mm glass. 50 mm deep x 24 mm wide. Guidance for specification option: To suit 10-12.8 mm glass. 28 mm deep x 30 mm wide with clip-on-bead. Guidance for specification option: To suit 15-17 mm glass. 50 mm deep x 30 mm wide. Guidance for specification option: To suit 15-17 mm glass.
Panel partition type	Frameless relocatable partition.
Framing, fixing points and joints	Aluminium extruded sections. Guidance for specification option: Fixings as per manufacturer literature.
Joint treatment	-
Type	Glass-to-glass I joint. Silicone joints. Slimline 40 mm wide mullion.
Glazed panels	-
Type	Single glazed, 10.8–16.8 mm laminate safety glass. Single glazed, 10.8–16.8 mm acoustic laminate safety glass. Single glazed, 10–15 mm toughened safety glass. Single glazed, 10–15 mm heat-soaked toughened safety glass. Single glazed, 10–15 mm switchable smart glass. Manufacturer guidance Low iron available on request. All glass types available; please consult Lusso with all requirements.
Door arrangement	-
Type	Not required. Silenzio framed glass door, single leaf, single action, up to 41 dB (Rw). Silenzio framed glass door, unequal leaves, single action, up to 41 dB (Rw). Silenzio framed glass door, double leaves, single action, up to 41 dB (Rw). Eclipse sliding door, exposed single leaf. Eclipse sliding door, exposed double leaves. EclipseSG sliding door, concealed single leaf. EclipseSG sliding door, concealed double leaf.
Door frames	Not required. Lusso 25 aluminium door frame. Guidance for specification option: 50mm wide aluminium face.
Door panels	-
Type	Not required. Silenzio, single glazed aluminium framed door leaf – 31 dB (Rw). Silenzio, single glazed aluminium framed door leaf – 34 dB (Rw). Silenzio, single glazed aluminium framed door leaf – 36 dB (Rw). Silenzio, single glazed aluminium framed door leaf – 41 dB (Rw). Eclipse sliding door, exposed, single. Eclipse sliding door, exposed, double. EclipseSG sliding door, concealed, single. EclipseSG sliding door, concealed, double. Lusso frameless glass door leaf – 32 dB (Rw).
Trims	25 mm Geometric trims bonded to glazing to create mullion and/or transom effect (doors included).
Hardware	- Manufacturer guidance Insert requirement for specified ironmongery options.
Cable management and outlets	Not required. Double glazed Tech Panel to accommodate access control and other electronics.

Manifestation	None. 2 rows of 50 mm opal frost dots. 2 rows of 50 mm opal frost squares. Privacy mirror film. Client specific custom designs. Guidance for specification option: Insert requirements.
Strength grade	0.36 kN/m. 0.74 kN/m. 1.5 kN/m. Manufacturer guidance Structural test on glass barriers tested in accordance with BS 5234-2: 1992 and BS 6180:2013. Based upon line load, UDL, point load and resistance to crowd pressure. All glass used satisfies the requirement of Class 3 BS EN 12600 or Class C of BS 6206.
Acoustic performance	34 dB (Rw). 35 dB (Rw). 38 dB (Rw). 40 dB (Rw). 41 dB (Rw). Manufacturer guidance Ratings in accordance with BS EN ISO 717-1: 1997 and tested to BS EN ISO 140-3:1995.
Fasteners	To manufacturer’s specifications.
System accessories	- Manufacturer guidance Access control, tech panels – consult manufacturer for details.
Samples required	- Manufacturer guidance Available from manufacturer on request.

Sustainability data

Contains Red List materials	No
Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Recyclability	100% (Aluminium and glass)
Recycled content As defined in clause 7.8 of BS EN ISO 14021	80 % Manufacturer guidance Glass % available from manufacturer on request.

BIM objects

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform	Compatible	Version
Revit	-	1
IFC	-	1
