AudioSuite | Single Doorset | FD30/FD60 - Architectural Acoustic Doors

Verified by manufacturer 1 month ago

Primed

DorSuite Variant:

Fire rated, single timber doorset.

Jump to:
+44 (0)1355 229966 Website

Application

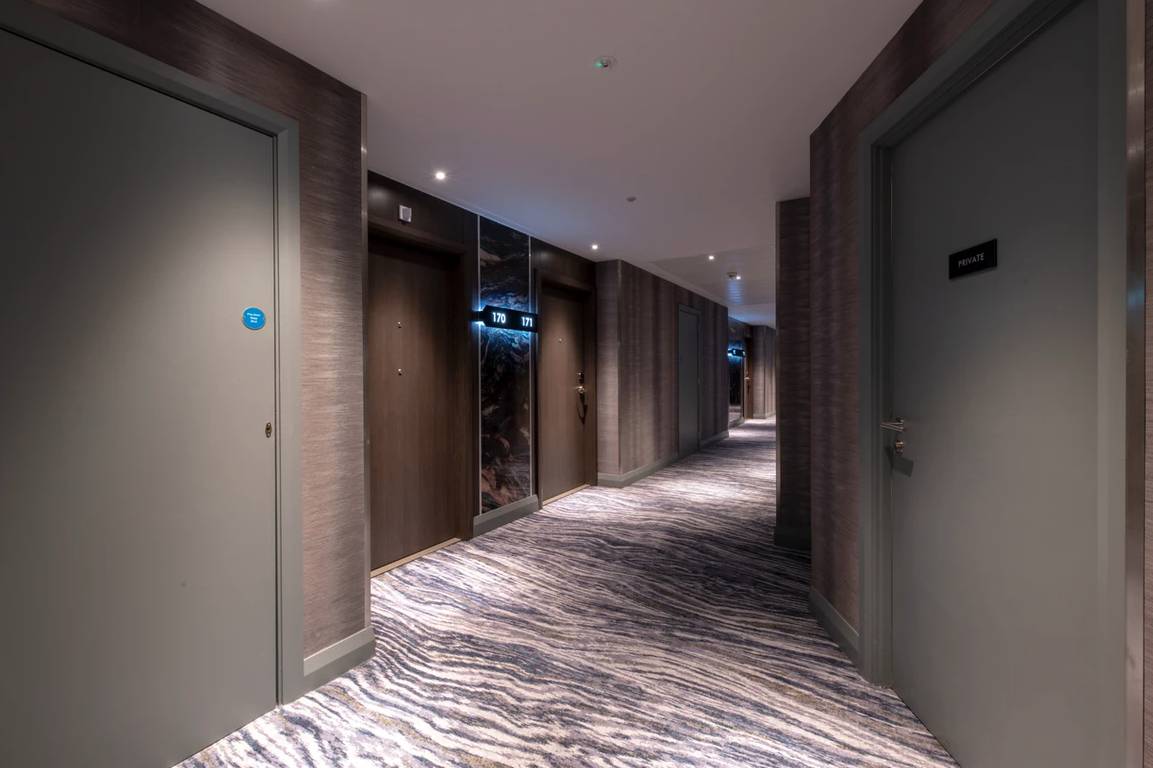

AudioSuite doors are specified in any location where it is desirable to reduce the transfer of noise. Common applications include music and arts venues, hotel bedroom doors, schools, meeting rooms and auditoriums, plant rooms, toilets off public spaces and recording studios.

Description

DorSuite’s performance doorsets are available in various configurations to meet the needs of any project.


AudioSuite doorsets incorporate high-performance cores and acoustic sealing tested to achieve an impressive noise reduction of up to 44 RW dB.


Features and benefits:

  • Fire ratings from FD30 to FD60.
  • To achieve higher dB performance Epicore dB is used which is a specialized layered core, available in a range of thicknesses, to achieve enhanced acoustic ratings.
  • Acoustic ratings - up to 43 RW dB.
  • Available with vision panels specified in a size and position in accordance with BS 8300 recommendations.
  • Laminate, wood veneer, primed and painted finishes available.
  • Frame options include both loose stop and rebated frames.
  • A wide range of ironmongery and access control products in a selection of styles and finishes.
  • Factory assembled doorset.
  • Solid core door leaves with hardwood lipping on all four edges.
  • Fully factory prepared for mortice ironmongery, including lock cases, flush bolts and floor springs.
  • Timber-framed glazed screens available, up to FD60 and a wide range of acoustic ratings.
  • Factory fitted intumescent, smoke and acoustic seals.

General information

Color

Brown

White

Cream

Grey

Black

Show more

Finish

Primed

Painted

Veneered

Laminated

Material

Timber

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

15 year

Uniclass

Pr_30_59_24_97 Wood doorsetsPrimary

CAWS

L20/420 Wood doorsets

L20/410 Wood doorsets

L20/55 Doorsets

Specification data - Wood doorsets

Standard

Internal fire-rated doorset.

Configuration

Single-leaf, single-action.

Doorset size

-

Manufacturer guidance

Consult manufacturer and insert requirements.


FD30 dimensions:

  • Maximum width with latch: 1411 mm (at 2404 mm height).
  • Maximum width unlatched: 1153 mm (at 2900 mm height).
  • Maximum height with latch: 3125 mm (at 1085 mm width).
  • Maximum height unlatched: 3145 mm (at 1050 mm width).

FD60 dimensions:

  • Maximum width with latch: 1384 mm (at 2441 mm height).
  • Maximum width unlatched: 1359 mm (at 2685 mm height).
  • Maximum height with latch: 3050 mm (at 825 mm width).
  • Maximum height unlatched: 3000 mm (at 825 mm width).

Performance

-

Fire resistance

-

Integrity

30 minutes.

60 minutes.

Acoustic performance

-

Manufacturer guidance

Consult manufacturer and insert requirements. Acoustic ratings up to 43 RW dB available.

Strength and durability

Severe duty.

Manufacturer guidance

Tested to DD171 and BS EN 1191.

Frame

-

Material

Hardwood.

Softwood.

Species

Primed softwood (up to FD30).

Primed hardwood.

American White Oak.

European Oak.

American Ash.

Steamed Beech (up to FD30).

Maple.

American Black Walnut.

Threshold

-

Manufacturer guidance

Consult manufacturer and insert requirements or omit.

Finish

Primed.

Lacquered.

Colour

-

Manufacturer guidance

Insert colour requirements.

External

-

Manufacturer guidance

Insert colour requirements.

Internal

-

Manufacturer guidance

Insert colour requirements.

Installation fasteners

Manufacturer's standard.

Frame accessories

-

Manufacturer guidance

Consult manufacturer and insert requirements or omit.

Door leaf

-

Thickness

44 mm.

54 mm.

59 mm.

Manufacturer guidance

Dependent on fire/acoustic rating – please consult manufacturer.

Core

Epicore dB.

Facings

Not applicable.

Cut

Not applicable.

Lippings

Concealed timber lipping.

Perimeter seals

Acoustic.

Guidance for specification option:

A range of drop seals including face fit or morticed into the bottom of the door, automatically activating upon door closure to provide a firm seal.

Finish

Primed.

Colour

-

External

-

Manufacturer guidance

Insert colour requirements.

Internal

-

Manufacturer guidance

Insert colour requirements.

Glazing

-

Type

Not applicable.

Manifestation

Not applicable.

Beading

-

Type

Not applicable.

Material

Not applicable.

Door accessories

-

Manufacturer guidance

Consult manufacturer and insert requirements or omit.

Hardware

-

Manufacturer guidance

Consult manufacturer and insert requirements or omit.

Accessories

-

Manufacturer guidance

Consult manufacturer and insert requirements or omit.

Vision panels

Not applicable.

Door frame profile

Loose stop frame.

Rebated frame.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Timber

Expected Life

30 year
