Baby and small child changing table, low start 800 x 1400 mm, electrically height adjustable, with sanitary appliances R8684000 - Baby Changing Unit
Verified by manufacturer 20 days ago
UK Conformity Assessed (UKCA)
Certificate type

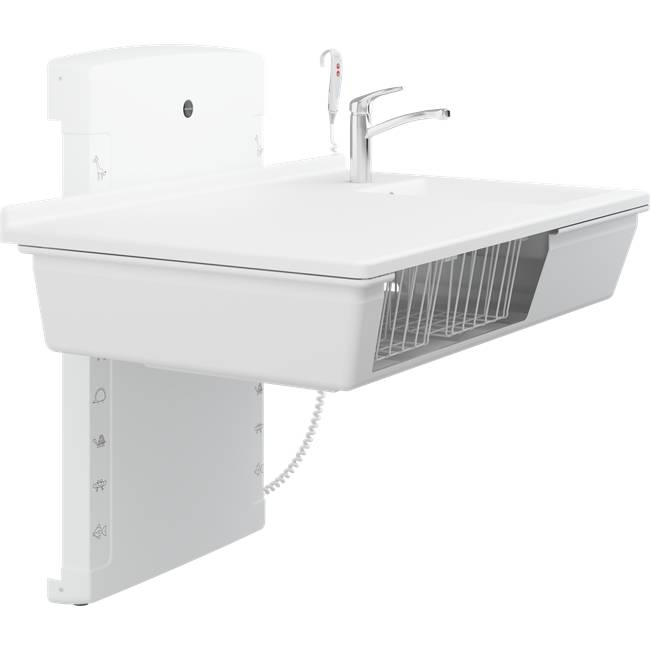

Baby and small child changing table. Low start, wallhung changing table, with sanitary appliances and a 75 kg safe working load (SWL). Height adjustable, with wired hand control and safety stop.
Application
Suitable for for changing and caring for a child.
Description
Baby and small child changing table, with a safe working load (SWL) of 75 kg.
Features and benefits:
- Low start - ergonomic.
- Wall hung changing table, with sanitary appliances, 800 x 1400 mm.
- Safe working load (SWL) of 75 kg.
- Height adjustable from 300–1000 mm, with wired hand control and safety stop function.
- Provides safe working heights for carers/ assistants.
- Easy-to-clean surfaces ensure optimum hygiene.
- Integrated sink and tap.
- Integrated safety system prevents entrapment
- Waste pipe is resistant to both chemical and physical influences.
Mattress
- Mattress must be ordered separately.
- R8703000 white
- R8703438 pastel blue
- R8703432 medium grey
- R8703378 navy blue
Optional safety rail and end guard available.
General information
Color | White |
Finish | Powder-coated |
Material | Acrylonitrile butadiene styrene (ABS) Steel Acrylic Polyurethane PVC |
Shape | Rectangle |
Length | 1400 mm |
Width | 800 mm |
Height | Bespoke Manufacturer guidanceHeight adjustable from 300–1000 mm. |
Warranty description | Three year |
Uniclass | |
CAWS | N13/494 Baby changing units |
Specification data - Baby changing units
Form | Wall-mounted. |
Material | Moulded worktop in ABS plastics, synthetic acrylic and powder-lacquered steel. |
Finish and colour | White. |
Size (nominal) | 800 x 1400 mm. |
Integral accessories | Integrated sink, lever operated mixer tap, feed/ waste system and two wire baskets. |
Verification | |
Submittals | Guidance for specification option: Insert details. |
Timing | Guidance for specification option: Insert details. |
Height | 300–1000 mm, adjustable. |
Maximum weight | 75 kg. Manufacturer guidanceMaximum user weight (MUM) and safe working load (SWL). |
Speed | Downwards: 38 mm/s. |
Noise | 48 dB. |
Mains | 230 V, 50/60 Hz. |
Ingress protection (IP) rating | IPX0. |
Actuator | LA31 Deskline (Linak), 2500N, IPX1. |
Control | Control box: CBD6 (Linak), IP20. |
Power consumption | Maximum: 96 W. |
Weight | 70 kg. |
Accessories | Not required. Sanitary appliances. Pull-out shower head. |
Sustainability data
Material | Acrylonitrile butadiene styrene (ABS) Steel Acrylic Polyurethane PVC |
Third party certifications

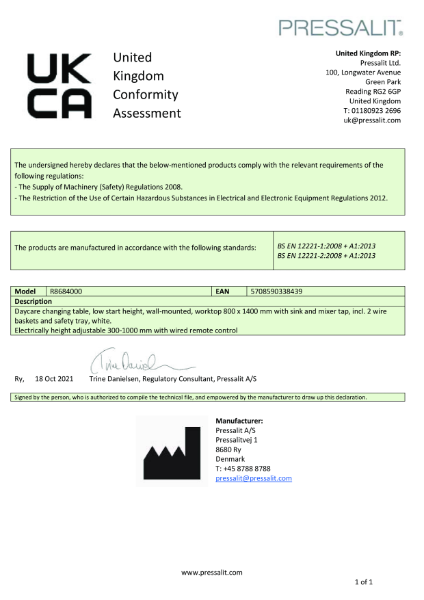

UK Conformity Assessed (UKCA)
UKCA for R8684000
Literature

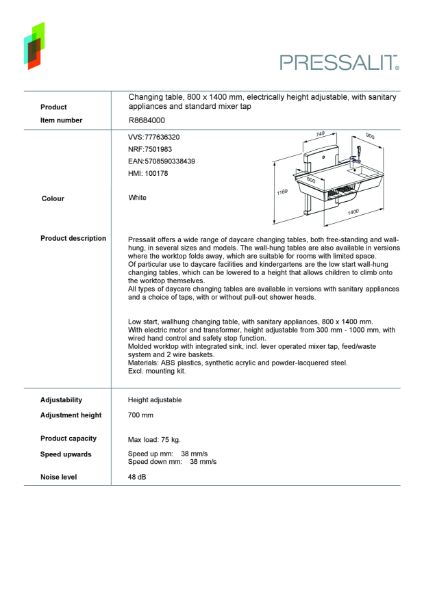

Changing table, 800 x 1400 mm, electrically height adjustable, with sanitary appliances and standard mixer tap - R8684000
