Baffle300 - Acoustic Baffle

Name: Baffle300 - Acoustic Baffle
Brand: Configured Platforms Ltd
SKU: hko4geneVvKMokpdokKfxP

Verified by manufacturer 3 days ago

Acoustic baffles for Series 1, 2, 3 Platforms fitted with Flatscreen, Standardscreen, Louvre100, Peaceflow300 and Speedscreen.

Jump to:

Application

To provide additional acoustic attenuation, especially where Louvre100 and Peaceflow300 are used to allow side airflow.
Can be configured to any of the perimeter sides and installed horizontally across the top of the enclosure.

Acoustic baffles for Series 1, 2, 3 Platforms fitted with Flatscreen, Standardscreen, Louvre100, Peaceflow300 and Speedscreen.

Features and benefits:

Clean straight lines for a tidy look.
Aluminium frame with acoustic baffle made from CFC and HCFC-free closed-cell polyethene foam infill.

Color	Grey Black
Finish	Mill Guidance for specification option: Frame.
Material	Aluminium Guidance for specification option: Extruded aluminium structure and aluminium sheet acoustic panel. Stainless steel Guidance for specification option: Fixings. Polyethylene Guidance for specification option: Polyethylene foam acoustic batt.
Shape	Rectangle Guidance for specification option: U-shaped channel with flat Peacemaker batt.
Length	Bespoke
Width	300 mm Guidance for specification option: Depth.
Height	Bespoke
Warranty description	20 year

Uniclass	Pr_25_71_14_04 Aluminium insulating sandwich panelsPrimary
CAWS	Q40/30 Proprietary fencing Q40/430 Proprietary fencing

Panels	Insulating sandwich panels.
Panel construction	-
Core insulation	Polyethylene foam Peacemaker batt.
Panel dimensions	-
Length	- Manufacturer guidance To suit screen height. Consult manufacturer and insert requirements or refer to a drawing.
Thickness	300 mm.
Integral accessories	Not required. Self closing door. Double doors.

Frame	Welded aluminium U channel, mill finish.
Size of slat	65 x 16 mm rectangular hollow section.
Slat orientation	Horizontal. Guidance for specification option: With 15 mm gap between slats (closed behind slats).
Calculated weighted sound reduction index (Rw)	Rw 30.
Frequency range	100–5000 Hz.
Calculated noise reduction coefficient (NRC)	NRC 1.
Weight	16.5 kg/m².

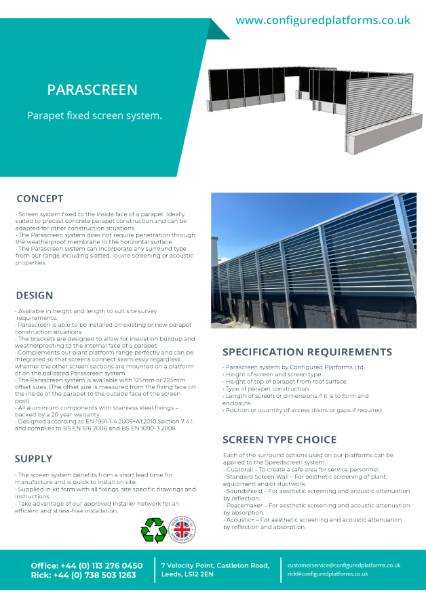

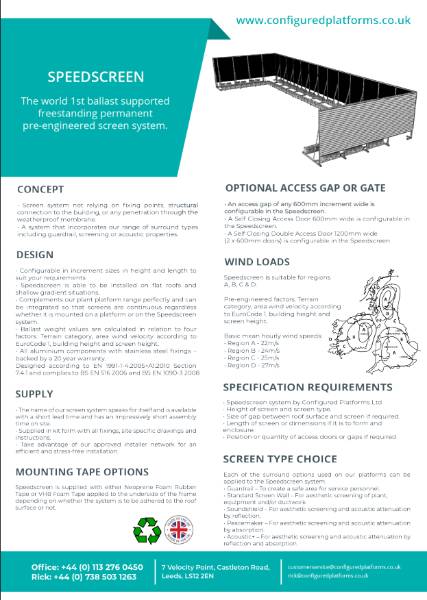

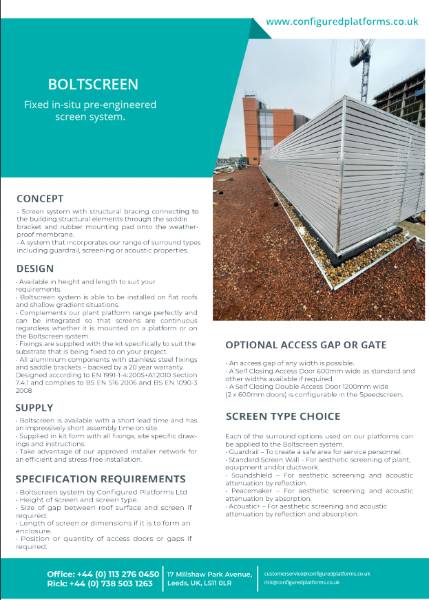

Support system	Boltscreen. Parascreen. VertScreen. Speedscreen.
Screen panel	Standard Screen. Louvre100. Flatscreen.

Material	Aluminium Guidance for specification option: Extruded aluminium structure and aluminium sheet acoustic panel. Stainless steel Guidance for specification option: Fixings. Polyethylene Guidance for specification option: Polyethylene foam acoustic batt.
A1-A3 (production stage)	Embodied carbon as defined in BS EN 15804
Normalised unit	10 kg CO₂ eq/kg
Declared unit	10 kg CO₂ eq/kg Self-declared
Recyclability	100% recyclable
Recycled content As defined in clause 7.8 of BS EN ISO 14021	100 % Guidance for specification option: Aluminium.
