Bailey Zenith™ Expanded Mesh Ventilated Facade Treatment
Verified by manufacturer today
Ventilated façade system.
Application
Designed for use in projects requiring air flow through the facade, especially those where air flow restrictions would be hazardous, for example car parks; and where water penetration is not an issue.
It is also used for visually screening otherwise unsightly elements such as structural steelwork.
Description

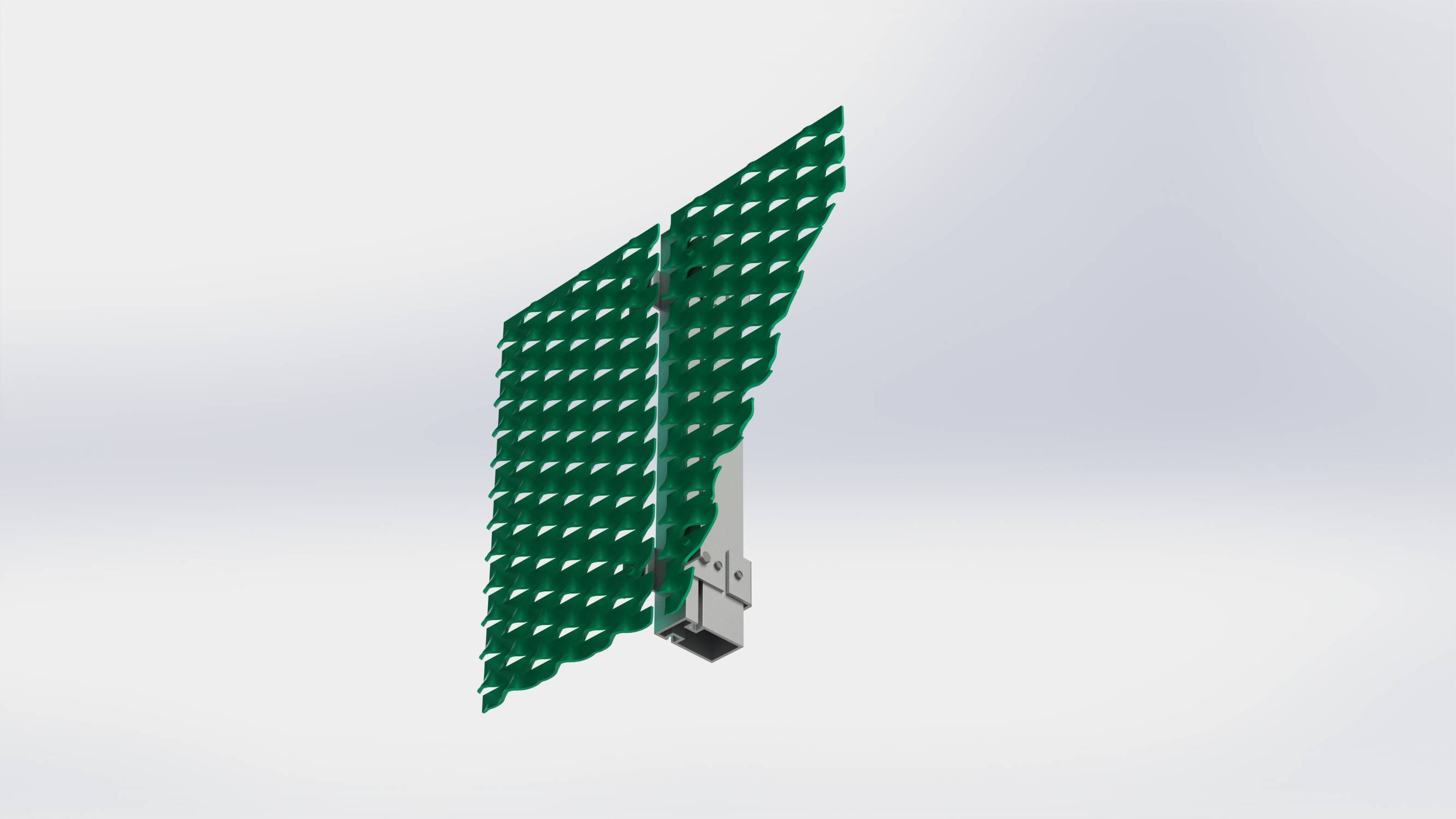

A ventilated façade created using expanded metal which can be used to realise stunning designs. The system is available in framed, or frameless versions providing a complete choice of fix and appearance.
A range of mesh designs are available based on the airflow requirements for the project, with Bailey’s designers available to assist in choosing the best option. Zenith™ can be produced for use in a standard, flat setting or to fit with more complex design features. Finishes include powder coating and anodizing.
Features and benefits:
- Ideal where airflow is required e.g., car parks.
- Aesthetic solution for concealing unsightly structure
- Speedy installation.
- Offers design flexibility.
Associated products:
- Platinum Modular™;
- Platinum Linear™;
- Synergy™;
- Harmony™;
- Samson™ Helping Hands fixing.
General information
Color | Other Manufacturer guidanceThe product is available in any standard RAL polyester powder coat colour and anodised colour ranges. |
Finish | Powder-coated Anodized Natural |
Material | Aluminium |
Shape | Other Diamond Manufacturer guidanceThe standard product has an expanded diamond mesh pattern referenced as 200 x 80 x 25 x 3mm |
Length | Bespoke Manufacturer guidanceProduct is available in lengths up to 3000mm |
Width | Manufacturer guidanceProduct is available in widths up to 1200mm. 1000mm is the preferred width for cost effective material usage |
Height | Manufacturer guidanceProduct height (or depth actually) is 40mm |
Warranty description | 40 year Manufacturer guidanceProject specific. |
Uniclass | |
CAWS | H92/120 Rainscreen cladding K30/170 Mesh panel partitions K30/40 Mesh panel partitions |
Product range |
Specification data - Drained and back-ventilated rainscreen cladding systems
Classification data | |
Cladding panels | |
Material | Aluminium mesh panels. |
Panel Type | Mesh. |
Profile | Flat. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | United Kingdom |
Manufacturing plant location | |
Material | Aluminium |
Recyclability | Fully Recyclable |
Expected Life | 30 year |
Literature
Bailey Zenith Mesh Brochure
