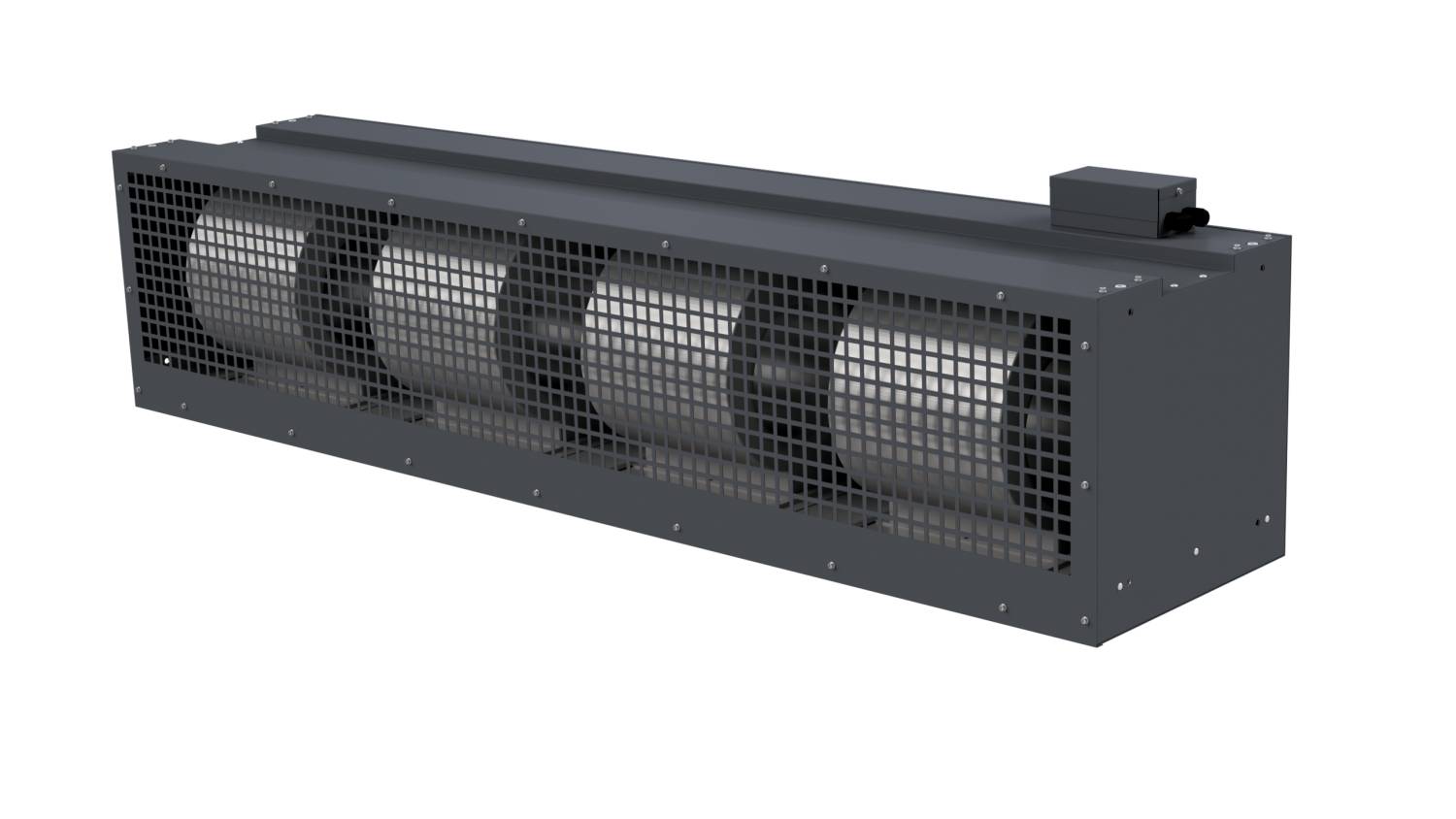

Baratherm Door/Air Curtains
Verified by manufacturer 5 months ago
BAR3/16A - Ambient
BAR3/16A - Ambient
A range of high velocity heated and ambient door air curtains for industrial and commercial applications.
Application
For industrial and commercial properties including warehouses, factories, garage workshops, distribution/ logistic centres, garden centres, showrooms and retail outlets.
Description
Powrmatic’s range of ambient and heated electric/gas fired door curtains are designed to provide an effective solution to energy loss and draughts adjacent to loading doors. Powrmatic Gas Fired Air Curtains units are fitted with centrifugal fans that force the air out through the downward facing exit slot that has directional louvres fitted. Horizontal high level mounted Baratherm has the additional advantage of recycling stratified warm air back to occupancy level to help break up any layer of cold air that has entered the building.
Features and benefits:
- Reduces building energy costs.
- Prevents heat loss.
- Adaptable installation.
- Improves workforce comfort.
- Reduce ingress of air bourne contaminants and insects.
General information
Color | Grey Other |
Finish | Powder-coated |
Material | Steel |
Shape | Rectangle |
Length | 1750 mm 2250 mm |
Width | 550 mm 1150 mm |
Height | 466 mm 720 mm |
Warranty description | Two year |
Uniclass |
Specification data - Air curtains
Arrangement | Horizontal.Vertical. |
Air volume | 7000 m³/h. |
Electrical supply | 230 V, 50 Hz. |
Casing finish | Epoxy powder-coated, RAL 7015.Epoxy powder-coated, BS/ RAL.Guidance for specification option: Other BS and RAL colours are available as an option on request; insert requirements. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Literature
Baratherm Air Curtain Brochure
