Barbican® Barbed-Top Fencing

Name: Barbican® Barbed-Top Fencing
Brand: Jacksons Fencing
SKU: coFku9pHB9ujWsAHBWfUV6

Verified by manufacturer 5 months ago

Jacksons Fencing

Third party certifications:

ISO 9001 Quality Management
Certificate type

Barbed top pale vertical bar security fencing

Jump to:

0800 408 4757 Website

Application

Commercial premises; medium-risk areas; train stations.

Description

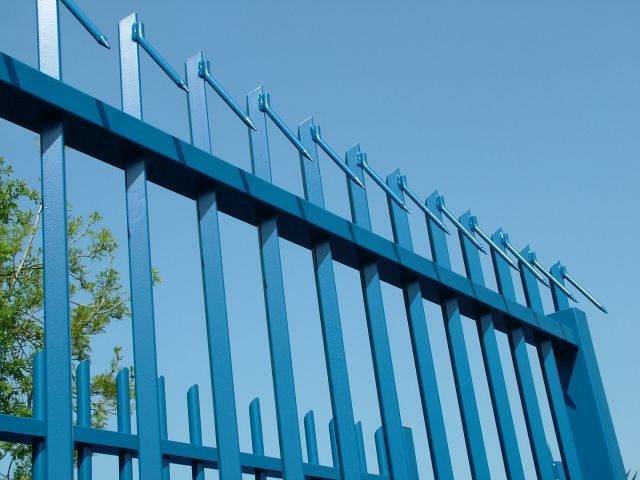

Vertical bar steel security fencing with barbs welded to the top of each pale to provide a highly effective deterrent and barrier to intruders attempting to climb.

Features and benefits:

Anti-climb design.
Panels are available in heights from 2.25 to 3.0 m to prevent accidental injuries to the public caused by contact with the protruding spikes.
Can be stepped, or special panels can be made to accommodate sloping ground.
Pales can be extended and set into concrete to protect against burrowing.
Matching gates are available in swing, cantilever sliding, and tracked in either automated or manual operation (specified separately).
Welded pale-through-rail construction.
Various mounting options including on wall, inset and free-standing.
25-year guarantee.

General information

Color	Black Blue Brown Green Grey Red White Yellow Other Show more
Finish	Galvanized Powder-coated
Material	Steel
Width	2484 mm 3000 mm
Height	2250 mm 2500 mm 2750 mm 3000 mm
Warranty description	25 year Guidance for specification option: Jacksons' Service Life guarantee provides cover against defects such as design, manufacturing finish and fitness for purpose. Consult manufacturer for full details.

Uniclass	Ss_25_14_61_86 Steel vertical bar fencing systemsPrimary
CAWS	Q40/30 Proprietary fencing Q40/340 Steel vertical bar fencing Q40/430 Proprietary fencing

Product range	Vertical Bar Railings

Specification data - Steel vertical bar fencing systems

Posts	Manufacturer's standard. Guidance for specification option: Rectangular hollow section (RHS) posts with anti-tamper fixings, with internal connectors and no visible bolts. 1800–2000 mm-high panels use 60 x 60 mm posts; 2500–3000 mm-high panels use 80 x 60 mm posts.
Post foundations	Set in concrete. Guidance for specification option: Standard. Base-plated. Guidance for specification option: To bolt down onto concrete. Cranked.
Rails	Horizontal, rectangular hollow section rails 60 x 40 mm. Guidance for specification option: 2250–2750 mm-high panels: two rails; 3000 mm-high panels: three rails.
Panels	Tubular steel pales, 2250 mm high. Guidance for specification option: Overall post length: 3050 mm; post centres: 3000 mm. Tubular steel pales, 2500 mm high. Guidance for specification option: Overall post length: 3300 mm; post centres: 3000 mm. Tubular steel pales, 2750 mm high. Guidance for specification option: Overall post length: 3550 mm; post centres: 2484 mm. Tubular steel pales, 3000 mm high. Guidance for specification option: Overall post length: 3800 mm; post centres: 2484 mm. Manufacturer guidance Post centres dependent on height specified.
Fence topping	Built-in barbed top on each pale. Guidance for specification option: Other security toppings can be added retrospectively.
System accessories	None. Matching gates. Guidance for specification option: To be specified separately.

Worked finish	Hot-dip-galvanized. Guidance for specification option: Standard. To BS EN 1461. Galvanized and powder-coated, black RAL 9005. Guidance for specification option: To BS EN 13438. Galvanized and powder-coated, green RAL 6005. Guidance for specification option: To BS EN 13438. Galvanized and powder-coated, other. Guidance for specification option: Special order, insert requirements (BS or RAL). Marine coated. Guidance for specification option: For installations within 500 m of saltwater or an estuary.
