Basin Mixer Tap - Wall Mounted - Single Lever Mixer - IXMO - Basin mixer
Verified by manufacturer 2 days ago
59516010101
59516010101
WRAS
Certificate type

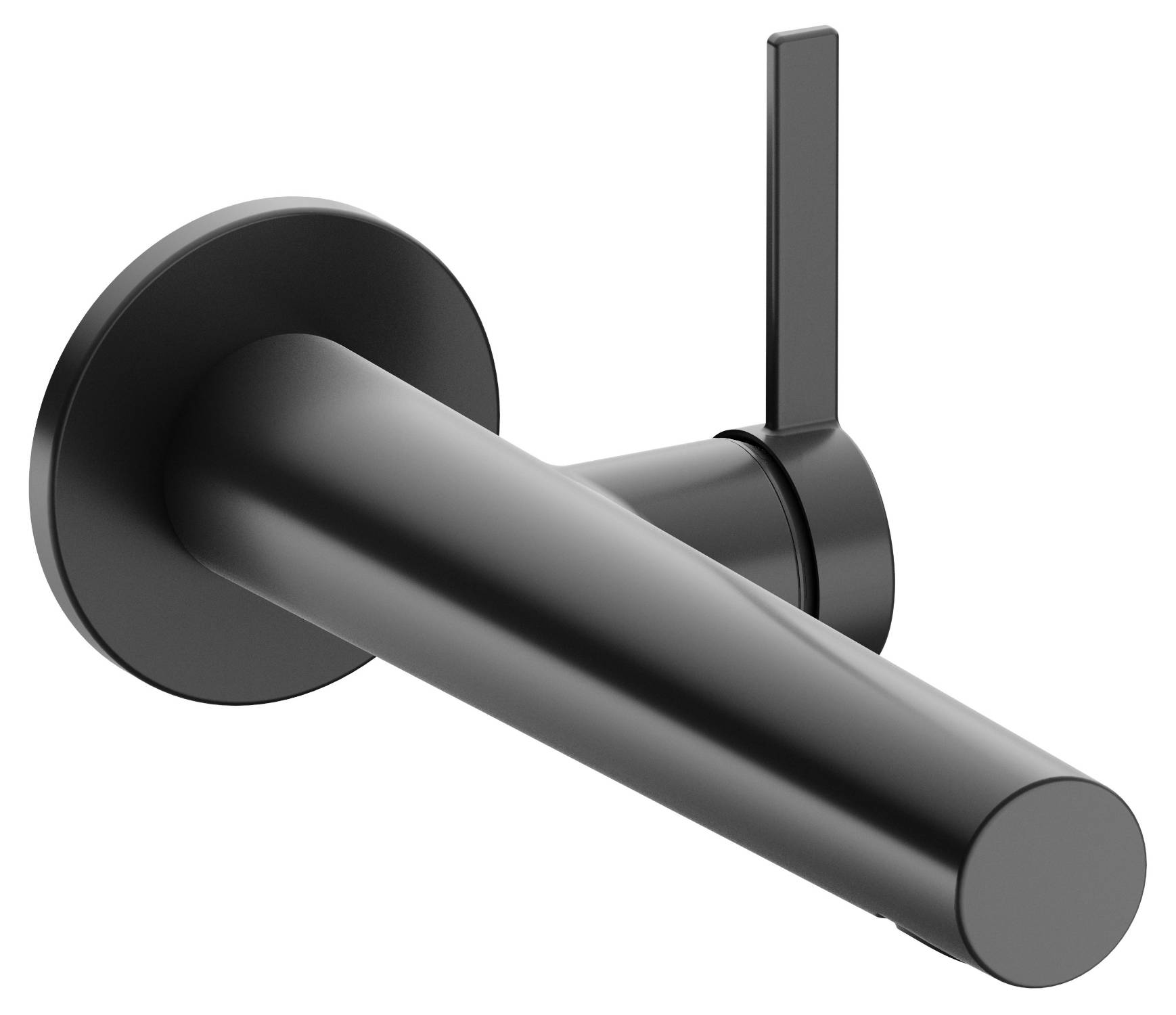

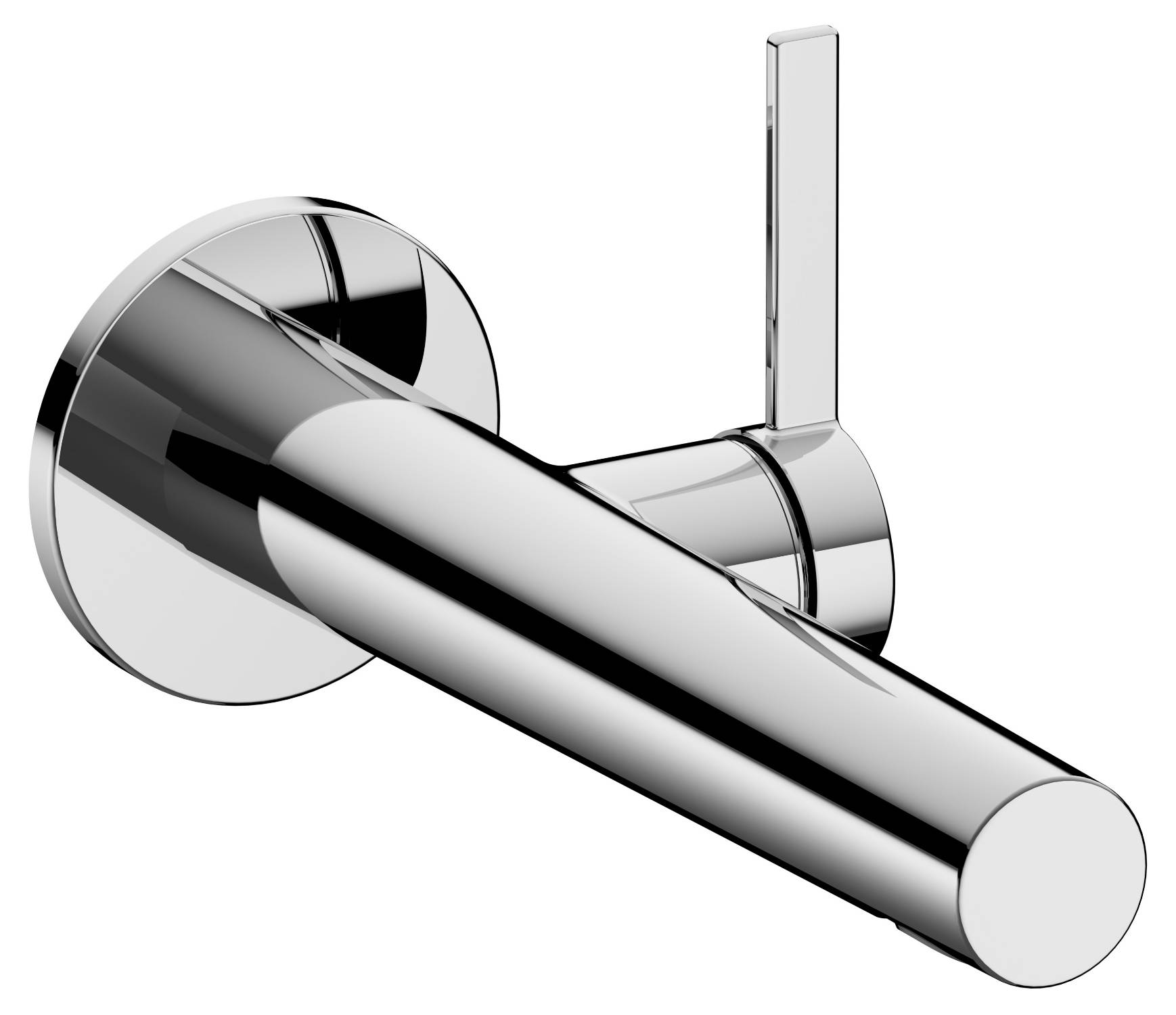

Wall mounted single elver basin mixer with Concealed, DN 15 mixing cartridge with round and square decorative disc and ceramic sealing gaskets.
Application
For bathtub or washbasin applications in private or public facilities.
Description
The IXMO concept enlarges scope for maximum design freedom. With the IXMO modules in their small and uniform dimensions, a variety of impressive installation types can be realized. All visible parts project exactly 80 mm out from the wall (IXMO_solo: 90 mm), producing a coherent big picture.
The minimalist elegance of IXMO is complemented by the slender decor discs. Because they are available as either round or square model, IXMO can be combined with any other Keuco line.
Even if you would like to combine a spout system with a single-lever mixer on your bathtub, thanks to a reduction to only a few multifunctional modules, IXMO always provides for a geometrically stimulating appearance of clarity around the bathtub. With their lightweight form and clear linearity, the modules harmonize happily with a variety of furnishing styles.
Features and benefits:
- Concealed.
- DN15.
- Optional round or square decorative disc.
- Mixing cartridge with ceramic sealing gaskets.
- Aerator SLIM SSR M 24x1.
- Adjustable.
- Available in six finish options.
- Flow rate limited to 7.6 L/min.
General information
Color | Silver Bronze Grey Black |
Finish | Brushed Chrome |
Material | Brass |
Shape | Circle Square |
Width | 88 mm |
Height | 74 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N13/35 Baths N13/355 Baths N13/30 Washbasins N13/335 Washbasins |
Product range |
Specification data - Washbasin thermostatic water supply sets
Form | Thermostatic combination mixer taps. |
Materials | |
Body | Brass. |
Finish and colour | Chrome-plated. |
Flow rate (maximum) | 7.6 L/min. |
Integral accessories | Mixing cartridge with ceramic sealing gaskets Aerator SLIM SSR M 24x1. |
Installation accessories | Not required. 59916 installation unit. Guidance for specification option: Rough part for recessed installation installation depth 70-100 mm. |
Width | 88 mm. |
Height | 74 mm. |
Depth | 187 mm. |
Design style | Round. Manufacturer guidance(decorative disc): |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
Material | Brass |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
Third party certifications

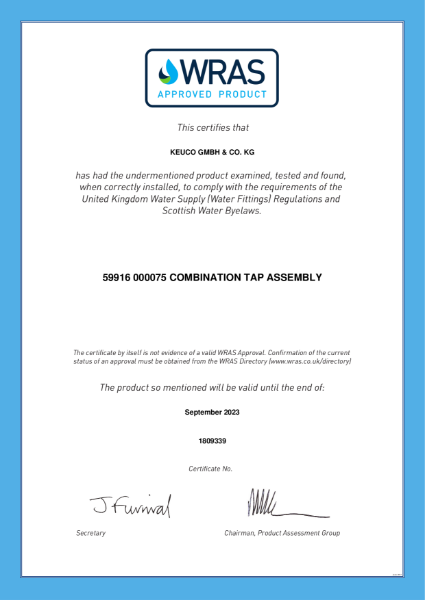

WRAS
WRAS cert for IXMO 59516
Literature
KEUCO Fittings Accessories & Light Mirrors
