BASWA Basic - impact resistant acoustic plaster system - Acoustic plaster

Verified by manufacturer 1 month ago

BASWA Basic One

BASWA acoustic AG Variant:

Impact resistant and sound absorbing acoustic panel, for use with BASWA seamless finish coatings on walls and ceilings.

Jump to:
BOS
 +44 (0)777 334 2181 Website

Application

  • Suitable for ceilings and walls in all interior areas and protected exterior areas.
  • Suitable for seamless surfaces, up to the maximum permissible size of the mineral substrate or substrate structure.

Description

BASWA Basic is a pressure-stable (limited ball impact resistance), acoustic panel made of expanded glass granulate to reduce reverberation time. The panels are adhered to a mineral substrate and coated seamlessly.

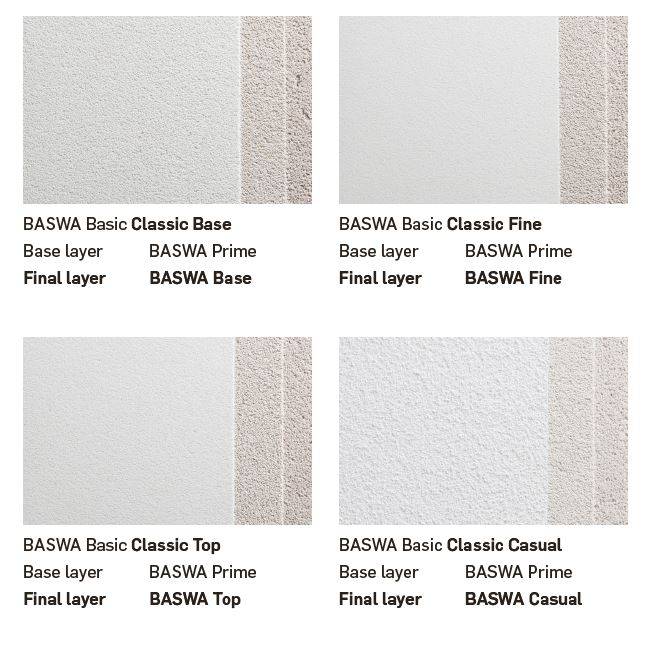

May be used with all BASWA marble surface coat options: Base, Fine, Classic Top and in all colours.


Features and benefits:

  • High surface quality standard.
  • BASWA Basic One: Can be installed within one day for areas of up to approximately 50 m².
  • BASWA Basic Classic Casual: Installation possible without full area scaffolding (mobile scaffolding).
  • Materials harmless to health.
  • High percentage of recycled materials (up to 92%).
  • Very pressure resistant, stable surface.
  • High whiteness/ L-value: up to 92%.
  • BASWA Fill joint filler not required.
  • The systems are installed directly onto all mineral substrates such as concrete, already plastered substrates, drywall systems (GKP, etc.).
  • The glued BASWA Basic acoustic panels can be coated seamlessly, with various end coatings from BASWA Acoustic Coatings.
  • System installations and penetrations without BASWA installation platforms.
  • Comprehensive cleaning and renovation concept.


System properties:

  • Sound absorption up to αw 0,6/ NRC 0.65, Class C.
  • Non-flammable A2-s1, d0 (DIN EN 13501-1).
  • Interior emissions A+ rating for VOCs.
  • Suitable for damp rooms and weather-protected outdoor areas.
  • Fiber and solvent free.
  • Limited ball impact safety according to DIN 18032-3:1197-04.
  • Recyclable.
  • System thickness 30 mm.
  • Two coat system.
  • Standard colour shade BASWA Base, Fine and Top: NCS S 0500-N.
  • Standard colour shade BASWA One/ Casual: NCS S 0300-N.
  • Unlimited colour selection (RAL, NCS, etc.) BASWA Base, Fine and Top.
  • BASWA One/ Casual: Colours on request.
  • Surface coating options from textured (BASWA Casual) to ultra-smooth (BASWA Top).

General information

Color

White

Guidance for specification option:

Standard.

Other

Guidance for specification option:

Comprehensive colour selection (BASWA Colours – chart 'BC', NCS, RAL).

Finish

Smooth

Guidance for specification option:

Ultra-smooth (BASWA Top), seamless surface.

Material

Mineral board

Guidance for specification option:

Expanded glass granulate.

Shape

Rectangle

Length

600 mm

Width

800 mm

Warranty description

Five year

Uniclass

Ss_25_25_75_05 Acoustic panel lining systemsPrimary

CAWS

K13/170 Acoustic panel lining

K13/170 Acoustic panel lining

Product range

BASWA acoustic plaster systems

Specification data - Acoustic panel lining systems

System performance

Acoustic performance up to αw = 0.6, NRC = 0.65, Class C.

Guidance for specification option:

Expanded glass granulate to reduce reverberation time.

Panelling

-

Type

Individual panels.

Surface material

BASWA Basic One coating, marble plaster with an acrylic binder, pressure-resistant.

Guidance for specification option:

Single coat finish that can be applied the same day as BASWA Basic panel installation.

Surface finish

Smooth, seamless to Q3 standard, stable.

Fasteners

Adhered, BASWA Fix C.

Guidance for specification option:

  • Material: Portland cement, calcitic aggregates and mating admixtures.
  • Colour: Cement grey.


Adhered, BASWA Fix K.

Guidance for specification option:

  • Material: Plaster, calcium carbonate, resin and different reagent.
  • Colour: White/ beige.
  • Drying time (at 20°C/ 50% RH): Hard: 1–1.5 hours; dry: 24 hours.


System accessories

Not required.

Access hatches.

Guidance for specification option:

The BASWA inspection opening flaps are individually height-adjustable and already RAL9010 PUR-coated.

Stop beads.

Trims.

BASWA fastening rod.

Guidance for specification option:

Additional mechanical fastening of bonded acoustic panels with BASWA fastening rod for supporting effect, to prevent third-party damage.

BASWA Protect.

Guidance for specification option:

A specially developed premium impregnation system to achieve

deep water repellency, with optimum protection for BASWA acoustic surfaces.

BASWA Blonde.

Guidance for specification option:

Bleaching agent for removal of partial organic soiling, such as drink stinks, grease and nicotine.

BASWA Clean.

Guidance for specification option:

Special enzyme cleaner for removal of partial organic soiling, such as drink stinks, grease and nicotine.

BASWA Fresh.

Guidance for specification option:

Mineral dispersion technology, used to renovate age and use-related discolourations of BASWA surfaces.

BASWA Casual.

Guidance for specification option:

Acoustic spray plaster, which is used for the renovation of existing BASWA acoustic surfaces.

Execution

Certified BASWA installer.

Thickness

30 mm.

Colour/ Texture

NCS S 0300-N.

Guidance for specification option:

Standard.

Manufacturer guidance

Consult manufacturer and insert requirements.

Noise reduction coefficient (NRC)

0.70/ 0.70.

Manufacturer guidance

To ASTM E 1264: Solid ceilings (on concrete)/ Suspension 200 mm.

Sound absorption

αw = 0.55 (M), Class D/ αw = 0.65 (M), Class C.

Manufacturer guidance

To ISO 11654: Solid ceilings (on concrete)/ Suspension 200 mm.

Thermal transmittance (U-Value)

Manufacturer's standard.

ThermalConductivity

λ = 0.073 W/m·K.

Weight

9.6 kg/m² (approximate).

Adhesive bond

25 kg/m² (tensile).

Guidance for specification option:

Minimum substrate adhesive tensile strength.

TemperatureRange

Application: 15–30°C, Storage: 5–30°C.

Guidance for specification option:

  • Application temperature to be maintained during installation until drying is complete.
  • During drying time, there should not be a temperature gradient greater than 10°C.

RelativeHumidity

At 30°C (± 2°C): 90% RH.

Guidance for specification option:

  • Relative humidity up to stress Class B (SN EN 13964 for suspended ceilings).
  • If there are strong fluctuations in temperature and relative humidity, care must be taken to ensure that the dew point is not located on the surface or within the BASWA acoustic system.

Colour (Light reflectance value (LRV)

0.77.

Guidance for specification option:

Degree of whiteness (CIE-Y-Value): 90.15, L-value up to 90%.

Manufacturer guidance

Values refer to measurements carried out according to DIN EN ISO11664-4 according to CIELAB system.

Grain size

0.5–1.0 mm.

Guidance for specification option:

Rougher surface structure.

Manufacturer guidance

Final layer.

Primer

BASWA Prime.

Guidance for specification option:

Base layer for all BASWA Basic system variations.

Reaction to fire (to BS EN 13501-1)

A2–s1, d0.

VOC emissions

A+ (Interior emissions).

Sustainability data

Contains Red List materials

No

Country of material origin

Switzerland

Country of product manufacture

Switzerland

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

-

Manufacturer guidance

Please see the BASWA EPD.

Recyclability

-

Manufacturer guidance

Please see the BASWA EPD.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

92 %
