BauderPVC NLF-R 50 Emergency Overflow

Name: BauderPVC NLF-R 50 Emergency Overflow
Brand: Bauder Ltd
SKU: u9pnZsnvQUXhub3LcYU1f2

Verified by manufacturer 1 day ago

Third party certifications:

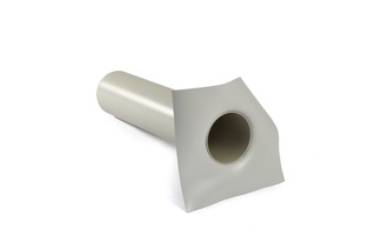

An emergency overflow PVC outlet (without leaf guard).

Jump to:

Application

Suitable for welding to Thermofol membrane upstands or bonding in conjunction with a Cold Applied Liquid Waterproofing upstand.

Bauder emergency overflow PVC outlet is a rigid rainwater outlet with a Thermofol membrane flange that can be welded to Thermofol membrane upstands.

Only to be used as part of a full Bauder Single Ply Thermofol System or Bauder Cold Applied Liquid Waterproofing System.

Color	Grey
Material	Polyvinyl chloride (PVC)
Shape	Other
Length	500 mm
Width	50 mm Guidance for specification option: Spigot.

Uniclass	Pr_65_50_35_37 Gravity rainwater outletsPrimary
CAWS	R10/26 Proprietary rainwater outlets R10/365 Proprietary rainwater outlets

Roof construction	-
Form	- Manufacturer guidance Only to be used as part of a BauderTHERMOFOL or Bauder Cold Applied Liquid Waterproofing System.
Roof insulation thickness	- Manufacturer guidance Insert requirements or omit.
Material	- Manufacturer guidance Insert requirements or omit.
Grating	- Manufacturer guidance Insert requirements or omit.
Spigots	Bauder emergency overflow PVC DN50 outlet (without leaf guard) with 500 mm long spigot.
