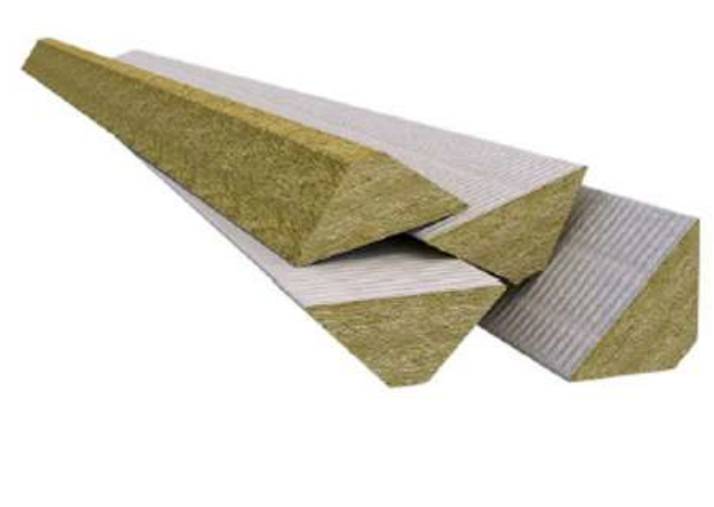

BauderROCK Angle Fillets - Profiled Insulation Section

Name: BauderROCK Angle Fillets - Profiled Insulation Section
Brand: Bauder Ltd
SKU: 5ZvChUHQD4mNwJpeygd7Kx

Verified by manufacturer 1 day ago

Bauder Ltd

Product certifications:

BBA Agrément Certificate
Certificate type
EPD
Certificate type

BauderROCK Angle Fillets are a profiled section of BauderROCK, manufactured with an integral mineral-coated glass fibre fleece on the uppermost surface.

Jump to:

Request BIM

+44 (0)1473 257671 Website

Application

For use in conjunction with BauderROCK Insulation (specified separately).

The product is designed to fully support the waterproof membrane at 90° abutments, providing a smooth transition between the horizontal and vertical interface.

Description

BauderROCK Angle Fillets are a profiled section of BauderROCK, manufactured with an integral mineral-coated glass fibre fleece on the uppermost surface, which ensures a strong bond can be achieved with the subsequently applied roofing membrane.

The underside of the profile has the corner cut away to ensure the profile sits snugly against the upstand.

For use in conjunction with BauderROCK Insulation specified separately). The product is designed to fully support the waterproof membrane at 90° abutments, providing a smooth transition between the horizontal and vertical interface.

General information

Color	Silver
Finish	Coated
Material	Mineral wool
Shape	Trapezoid
Length	1200 mm
Width	53 mm Guidance for specification option: Maximum depth (when installed).
Height	53 mm Guidance for specification option: Maximum depth (when installed).
Warranty description	- Manufacturer guidance A comprehensive range of guarantee options are available. Please contact your local Bauder Area Technical Manager for more information.

Uniclass	Pr_35_90_07_04 Angle filletsPrimary
CAWS	J41/26 Thermal insulation J31/26 Thermal insulation J31/334 Mineral wool insulation J42/425 Mineral wool (MW) insulation J42/27 Thermal insulation J41/335 Angle fillets

SKU Code	GB30222350

Specification data - Angle fillets

Classification data
Material	Mineral fibre with glass fibre fleece.
Size (minimum)	53 x 53 mm, triangular in section. Guidance for specification option: Approx. 75 mm across facing. Thickness: 30 mm.
Reaction to fire	Core material complying with Euroclass A1. With facing: Euroclass A2-s1, d0.
Surface finish	Top: 300 g/m³. Bottom: raw.
