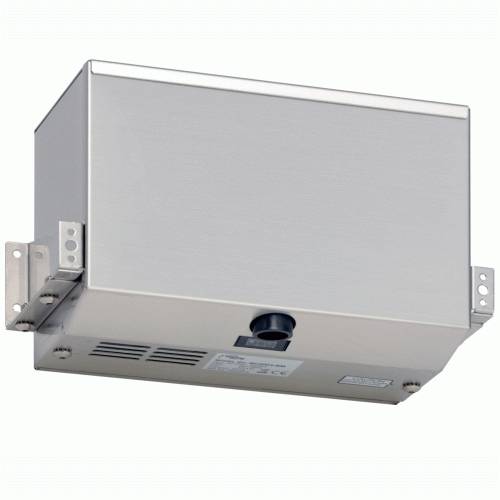

BC2003BM Dolphin Velocity Behind Mirror Dryer
Verified by manufacturer 8 months ago
A behind mirror, stainless steel, high speed hand dryer.
Application
Suitable for use in commercial washroom areas.
Description
A behind mirror, stainless steel, high speed hand dryer.
Features and benefits:
- High speed low energy hand dryer.
- Dryer delivers 101.7 m³/ hour (90 m/s).
- Operating power of only 1000 W (500 W heating element), saving 80% of user’s energy costs.
- Infra-red, self-adjusting sensor.
- 29 000 rpm brush motor.
- Class 1 rated isolation.
General information
Color | Grey Silver |
Finish | Satin |
Material | Stainless steel |
Shape | Rectangle |
Length | 263 mm |
Width | 139 mm |
Height | 170 mm |
Uniclass | |
CAWS | N13/472 Hand dryers V90/590 Equipment |
SKU Code | BC2003BM |
Product range |
Specification data - Hand dryers
Classification data | |
Form | High speed low energy. |
Operation | Automatic. |
Timer | Adjustable. Guidance for specification option: Self-adjusting sensor. |
Electrical supply | |
Power rating | 1.0 kW. |
Body | |
Material | Stainless steel. |
Finish | Satin. |
Colour | Grey. Silver. |
Ingress protection (minimum) | To BS EN 60529, IPX1. |
Dimensions | 170 x 263 mm. |
Noise level at 1 m (maximum) | 75 dB(A). |
Projection | 139 mm. |
Air flow | 55ºC. Manufacturer guidanceAir output temperature. |
Drying time | Dries hands in 13 seconds. Guidance for specification option: Reducing the CO2 emissions. |
Heating element | 500 W. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
Literature
Dolphin Velocity Range
