BE5V - BSEN Class 5 SD Vinyl Edge Banded Panel - Raised Access Flooring Panel

Name: BE5V - BSEN Class 5 SD Vinyl Edge Banded Panel - Raised Access Flooring Panel
Brand: Bathgate Flooring Ltd
SKU: ivWjEd56JvTZ1i76UVK3ZD

Verified by manufacturer 21 days ago

Bathgate Flooring Ltd

Third party certifications:

FSC
Certificate type

Access Flooring Gravity-laid, steel-encapsulated panel with vinyl covering and edge banding.

Jump to:

BOS

+44 (0) 1432 347700 Website

Application

Internal, Commercial, Office access floor panel.

Description

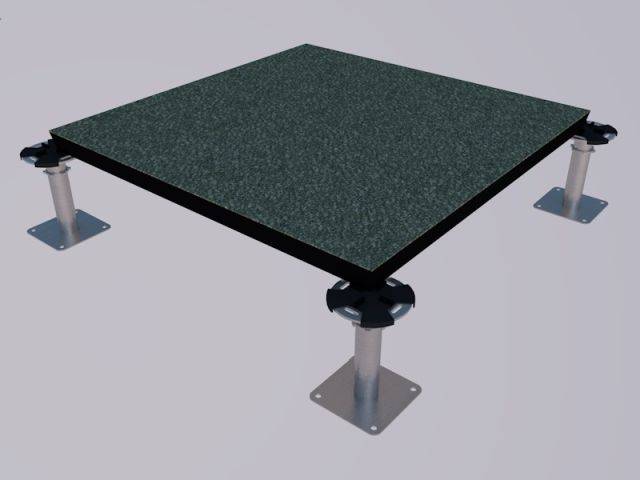

Raised Access Floor Gravity-laid panel, consisting of a high-grade, FSC® certified, 30 mm thick, high-density particle board core in a sandwich construction, with a steel top and bottom sheet, covered with standard static dissipative Gerflor Mipolam EL7 Robust Vinyl or other approved covering. A full-depth acrylonitrile butadiene styrene (ABS) edge band is then applied, creating a fully encapsulated 600 mm² panel.

The panel has been tested to the BS EN 12825:2001 5/A/3/2 specification and is fully compliant.

Features and benefits:

FSC® certified.
Designed to be loose-laid with complete electrical continuity.
High resistance to damage.
Can be perforated for airflow.
Manufactured in the UK.

General information

Color	Grey Other Guidance for specification option: Customer specified vinyl finish.
Material	Steel Guidance for specification option: Top lid and bottom tary. Acrylonitrile butadiene styrene (ABS) Particleboard Vinyl
Shape	Square
Length	600 mm
Width	600 mm
Height	33 mm
Warranty description	25 year

Uniclass	Pr_25_71_42_71 Raised access floor panels with finishPrimary
CAWS	K41/130 Raised access floor K41/130 Raised access floor K41/315 Floor panels K41/315 Floor panels

Specification data - Raised access floor panels with finish

Casing	-
Material	Steel.
Factory finishes	Galvanized.
Core	HD particleboard.
Panel size	600 x 600 x 33 mm. Manufacturer guidance Width x length x height.
Dimensional deviations	To BS EN 12825 Class 5. Guidance for specification option: 5/A/3/2.
Weight (maximum)	35 kg/m².
Panel fixing	Gravity laid.
Integral finish	-
Material	Gerflor mipolam EL7 robust vinyl. Guidance for specification option: Standard. Special order. Guidance for specification option: Insert requirement.
Fixing	Factory-bonded.
Edges	Full-depth acrylonitrile butadiene styrene (ABS) edge band.

Perforations	Not required. Required. Guidance for specification option: Insert requirements.
Loading	Working load safety factor: 3x; Uniform distributed load: >10 kN/m².
SurfaceSpreadOfFlame	Class 0.

Sustainability data

Country of material origin	Germany Guidance for specification option: Particleboard core Manufacturer guidance For steel or vinyl - see manufacture
Country of product manufacture	United Kingdom
Recyclability	100
Recycled content As defined in clause 7.8 of BS EN ISO 14021	78.88 %
