Bespoke Architectural Fabrications - Fascias, Soffits and Gutters
Verified by manufacturer 2 months ago
Architectural fabrications service.
Application
Fascias, soffits and gutter applications.
Description
A bespoke architectural fabrications service for aluminium combined fascias, soffits and gutters.
Features and benefits:
- Soffit systems can be tapered to accommodate curved detailing.

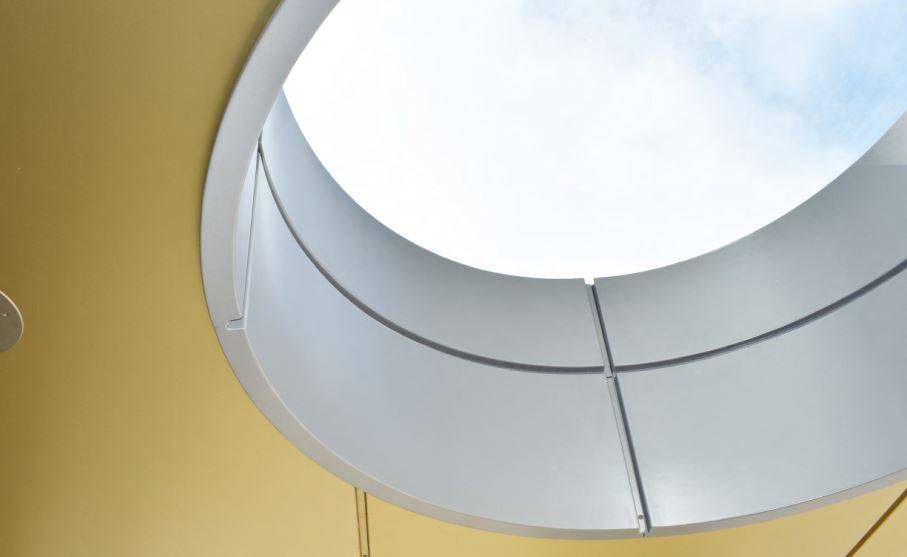

- Smoothed curved fascias can be manufactured in a range of radii, limited only by the material type and fascias profile.
- The BTS gutter range includes insulated membrane line composite gutters, membrane lined single skin gutters and pre and powder-coated trimline (eaves) gutters.
- Multiple fabrications available to suit specification.
- Blue Marble™ certified carbon neutral.
General information
Color | Other Guidance for specification option: Powder-coated to any RAL colour. |
Finish | Powder-coated |
Material | Aluminium |
Shape | Other Guidance for specification option: Curved. |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | R10/13 Combined fascia, soffit and gutter G20/99 Fascias/ barges/ soffits R10/321 Combined fascia, soffit and gutter G20/950 Fascias/ barges/ soffits |
Specification data - Aluminium combined fascias, soffits and gutters
Form | Fascia, soffit and gutter. |
Third-party product certification | Blue Marble™ certified carbon neutral. |
Fascias | |
Profile | Curved with welded butt straps.Curved with secret-fix joint detail.Guidance for specification option: With zero visible fixing points. |
Size | Manufacturer guidanceBespoke. Insert requirements. |
Thickness or gauge | Manufacturer guidanceBespoke. Insert requirements. |
Finish | Powder-coated. |
Colour | Manufacturer guidancePowder-coated to any RAL colour. Insert requirements. |
Soffits | |
Profile | Secret fix.Discreet fix.Interlocking plank. |
Size | Manufacturer guidanceBespoke. Insert requirements. |
Thickness or gauge | Manufacturer guidanceBespoke. Insert requirements. |
Gutters | |
Profile | Insulated membrane lined composite gutters.Membrane lined single skin gutters.Trimline (eaves) gutters. |
Size | Manufacturer guidanceBespoke. Insert requirements. |
Thickness or gauge | Manufacturer guidanceBespoke. Insert requirements. |
Finish | Pre-coated.Powder-coated. |
Colour | Manufacturer guidancePre-coated or powder-coated to any RAL colour. Insert requirements. |
Sustainability data
Material | Aluminium |
