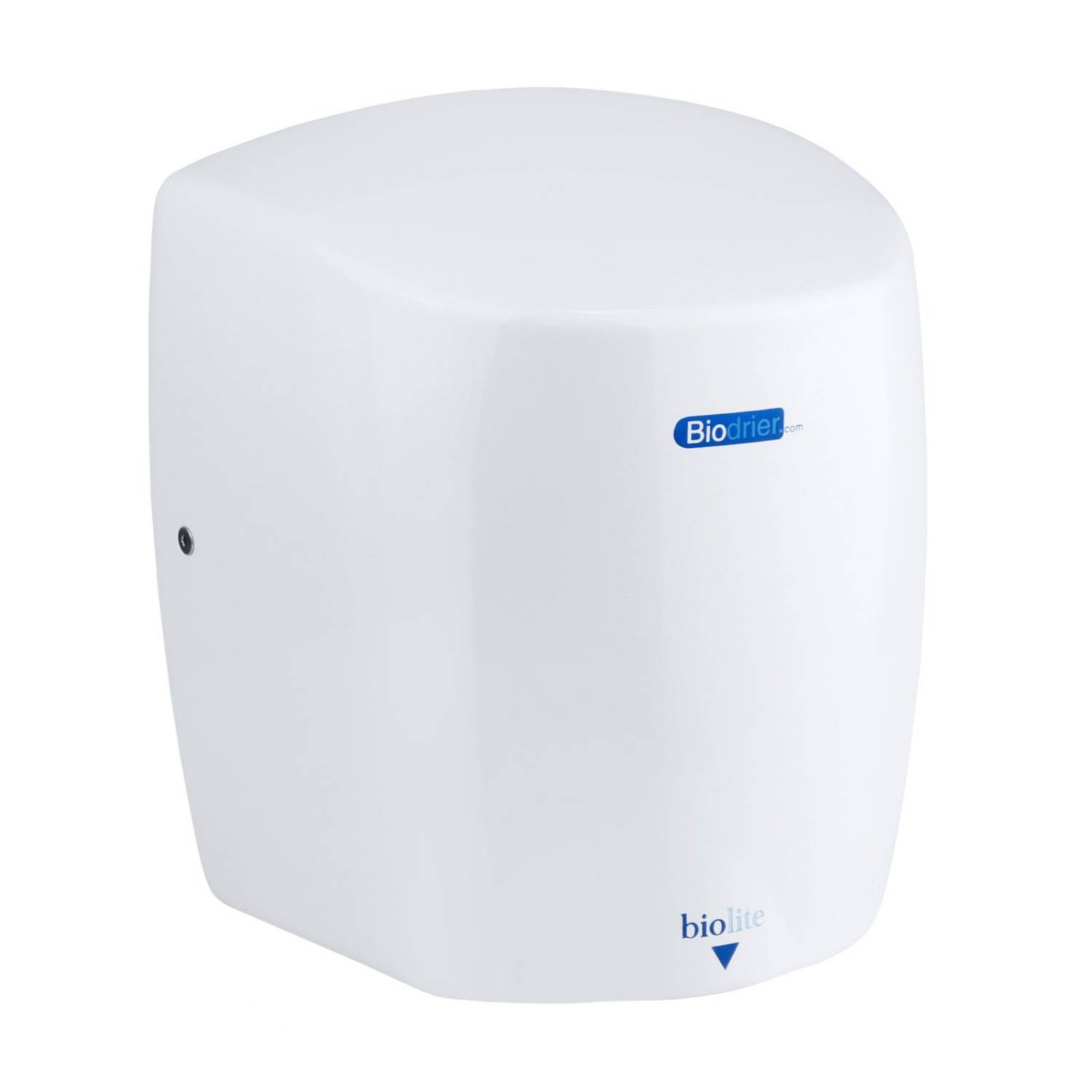

Biodrier Biolite Hand Dryer - Compact Jet Hand Dryer

Verified by manufacturer 28 days ago

White

FW3 Variant:

Compact, high-speed, jet hand dryer, suitable for washrooms.

Jump to:
BOS
+44 (0)1823 672 970 Website

Application

Hand dryer for washrooms, bathrooms and toilets.


  • Suitable for low, medium and high usage.
  • Suitable for the following locations in particular: offices, schools/colleges/universities, bars/restaurants/hotels, hospitality settings, retail settings, airports, and cinemas.

Description

Compact jet hand dryer, which uses powerful streams of air to dry hands.


Tested, chosen, and used by the Department of Energy and Climate Change for being the most cost effective and energy efficient hand dryer.


Available in white, silver and chrome.


Features and benefits:

  • Fast drying: under 10 seconds.
  • Low energy: uses just 650-900 W energy.
  • Guarantee: Five-year warranty with an unrivalled three years rapid-response, on-site breakdown cover.
  • Adjustable heater element: heater can be turned on or off in this hand dryer. Allows users to turn off the heater when it is not needed in warmer seasons, to save even more energy and money.
  • Powerful: a compact jet hand dryer, which is small yet powerful.
  • Low noise: 76 dBA @ 1 metre.
  • IP22 rating.
  • Low maintenance: can be easily & swiftly cleaned with a damp cloth, making it an ideal hand dryer for busy environments.
  • High quality: die cast aluminium construction
  • Modern design: when activated, cool blue LED lights guide the user to the airflow on the hand dryer.
  • Environmentally friendly: All Biodrier hand dryers use 90% less energy than conventional hand dryers.

General information

Color

Silver

Guidance for specification option:

Silver or chrome.

White

Finish

Satin

Chrome

Smooth

Material

Aluminium

Shape

Other

Rectangle

Length

176 mm

Guidance for specification option:

Depth.

Width

240 mm

Height

268 mm

Warranty description

Five year

Guidance for specification option:

3 year on-site warranty.

Uniclass

Pr_40_70_62_37 Hand dryersPrimary

CAWS

N13/64 Hand dryers

N13/472 Hand dryers

Product range

All Products
Hand Dryers / Hands Under Hand Dryers

Specification data - Hand dryers

Form

High-velocity air.

Operation

Automatic.

Guidance for specification option:

Infrared, self-adjusting.

Timer

Fixed.

Guidance for specification option:

60 seconds auto shut-off.

Electrical supply

-

Power rating

0.65 kW (heater off); 0.9 kW (heater on).

Rated operational voltage (Ue)

220–240 V a.c.

Frequency

50 Hz.

Final connection

Guidance for specification option:

Insert requirements. Consult manufacturer's installation manual for details.

Body

-

Material

Die cast aluminium.

Finish

Powder-coated.

Colour

White.

Ingress protection (minimum)

IP22.

Guidance for specification option:

Isolation class I.

Dimensions

268 x 240 x 176 mm

Guidance for specification option:

Height x width x depth.

Noise level at 1 m (maximum)

76 dB(A).

Features

Hands only.

Integral accessories

Heater element (250 W thermal protected).

Drying time

<10 seconds.

Air speed

64 m/s.

Weight

4.5 kg.

Motor type

650 W adjustable brush type.

Approvals

UKCA marked; CE marked; UKAS ISO 9001:2008 Quality Management; ETL listed; TÜV approved, SafeContractor approved; WEEE compliant; GreenSpec®.

Sustainability data

Contains Red List materials

No

Country of material origin

China

Country of product manufacture

China

Material

Aluminium

Recyclability

Yes, the plastic can be recycled.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Literature

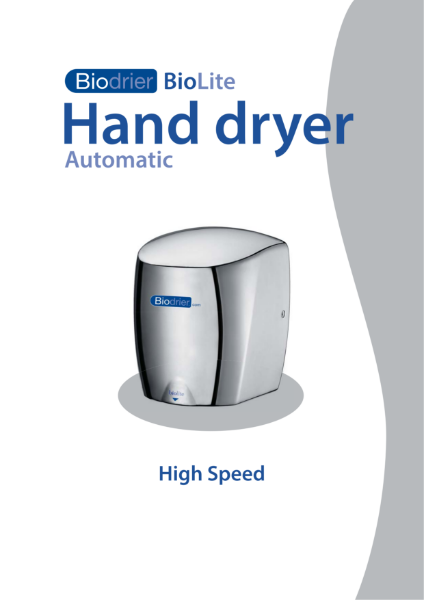

Biodrier Biolite (HD-BL09) User Manual

Biodrier Biolite (HD-BL09) User Manual

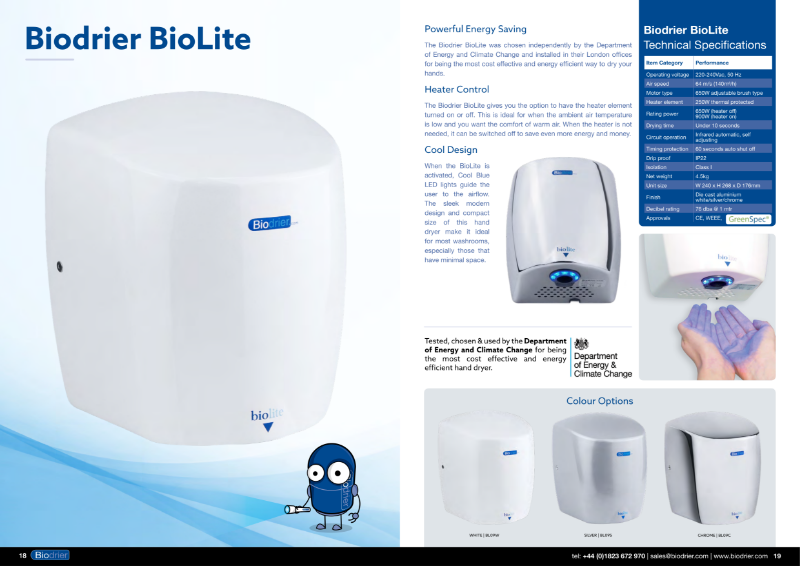

Biodrier Biolite (HD-BL09) Leaflet

Biodrier Biolite (HD-BL09) Leaflet

Biodrier Brochure

Biodrier Brochure

Case studies

Hand Dryer Case Study (Offices) - The Department for Energy and Climate Change

Hand Dryer Case Study (Offices) - The Department for Energy and Climate Change

Hand Dryer Case Study (Supermarket) - Lidl Stores UK

Hand Dryer Case Study (Supermarket) - Lidl Stores UK
