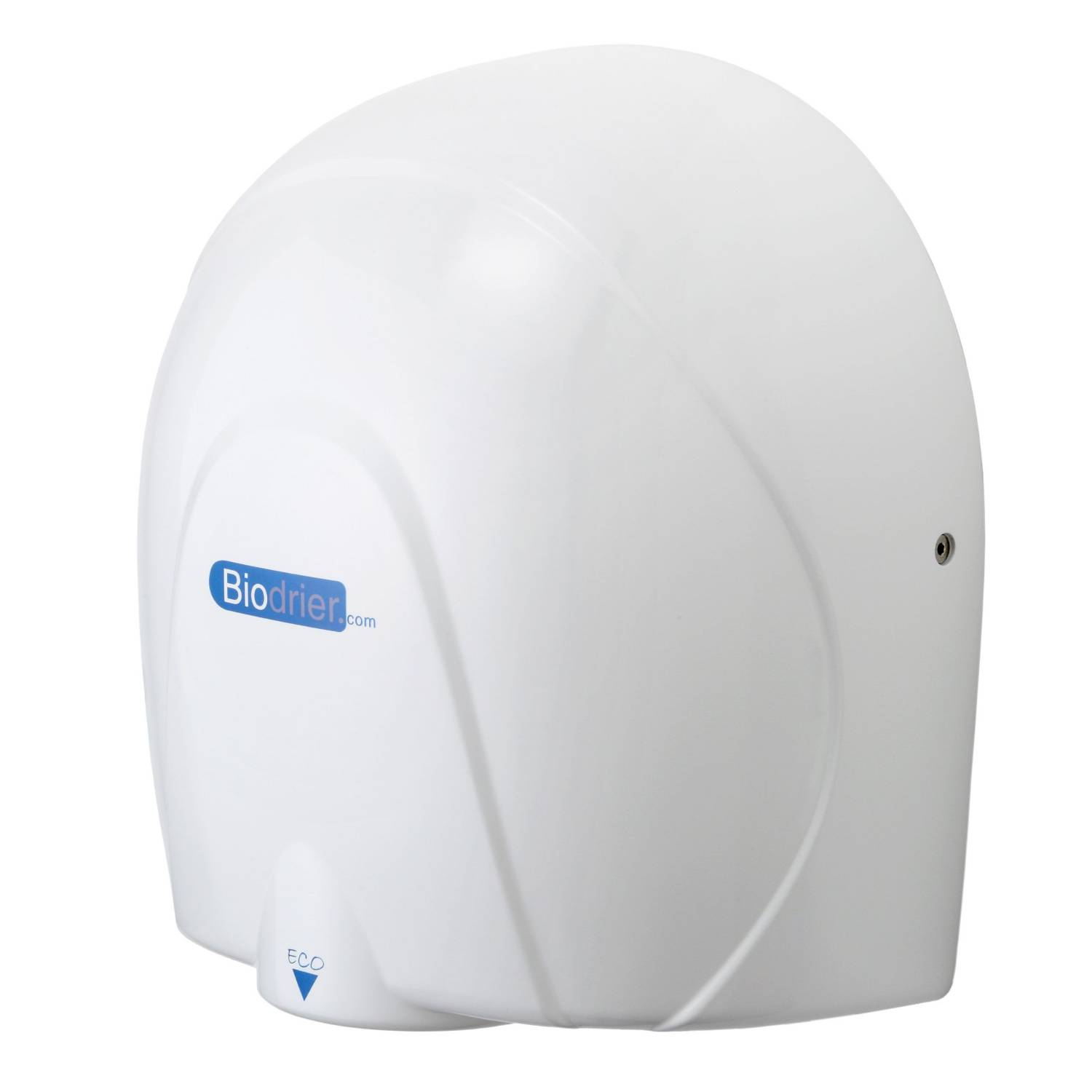

Biodrier Eco Hand Dryer - Compact Jet Hand Dryer

Verified by manufacturer 28 days ago

White - HD-BE08W

FW3 Variant:

Modern, energy-efficient, fast hand dryer, perfect for washrooms.

Jump to:
BOS
+44 (0)1823 672 970 Website

Application

Hand dryer for washrooms, bathrooms and toilets.


  • Suitable for low, medium and high usage.
  • Suitable for the following locations in particular: offices, schools/colleges/universities, bars/restaurants/hotels, hospitality settings, retail settings, airports, and cinemas.

Description

Sleek, modern hand dryer suitable for use in compact washrooms where efficiency is key.


Installed in the world's tallest building, the Burj Khalifa!


Available in white, silver, and chrome.


Features and benefits:

  • Fast drying: under 10 seconds.
  • Low energy: uses just 900 W energy.
  • Guarantee: 5 year warranty with an unrivalled three years rapid-response, on-site breakdown cover.
  • Powerful: a compact jet hand dryer, which is small yet powerful.
  • Low noise: 76 dBA @ 1 metre for this hand dryer.
  • IP22 rating.
  • Modern design: sleek and modern hand dryer - perfect for any style of washroom!
  • High quality: die cast aluminium construction
  • Low maintenance: hand dryer can be easily & swiftly cleaned with a damp cloth, making it ideal for busy environments.
  • Environmentally friendly: All Biodrier hand dryers use 90% less energy than conventional hand dryers.

General information

Color

Silver

Guidance for specification option:

Silver or chrome.

White

Other

Finish

Satin

Chrome

Smooth

Material

Aluminium

Shape

Other

Length

175 mm

Guidance for specification option:

Depth.

Width

280 mm

Height

300 mm

Warranty description

Five year

Guidance for specification option:

3 years on-site warranty.

Uniclass

Pr_40_70_62_37 Hand dryersPrimary

CAWS

N13/64 Hand dryers

N13/472 Hand dryers

Product range

All Products
Hand Dryers / Hands Under Hand Dryers

Specification data - Hand dryers

Form

High-velocity air.

Operation

Automatic.

Guidance for specification option:

Infrared, self-adjusting.

Timer

Fixed.

Guidance for specification option:

60 seconds auto shut-off.

Electrical supply

-

Power rating

0.9 kW.

Rated operational voltage (Ue)

220–240 V a.c.

Frequency

50 Hz.

Final connection

Guidance for specification option:

Insert requirements. Consult manufacturer's installation manual for details.

Body

-

Material

Die cast aluminium.

Finish

Powder-coated.

Colour

White.

Ingress protection (minimum)

IP22.

Guidance for specification option:

Isolation class I.

Dimensions

300 x 280 x 175 mm

Guidance for specification option:

Height x width x depth.

Noise level at 1 m (maximum)

76 dB(A).

Features

Hands only.

Integral accessories

Heater element (250 W thermal protected).

Drying time

<10 seconds.

Air speed

64 m/s.

Weight

4.5 kg.

Motor type

650 W adjustable brush type.

Approvals

UKCA marked; CE marked; UKAS ISO 9001:2008 Quality Management; ETL listed; TÜV approved, SafeContractor approved; WEEE compliant; GreenSpec®.

Sustainability data

Contains Red List materials

No

Country of material origin

China

Country of product manufacture

China

Material

Aluminium

Recyclability

Yes, the plastic can be recycled.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Literature

Biodrier Eco (HD-BE08) Leaflet

Biodrier Eco (HD-BE08) Leaflet

Biodrier Eco (HD-BE08) User Manual

Biodrier Eco (HD-BE08) User Manual

Biodrier Eco (HD-BE08) Installation Template

Biodrier Eco (HD-BE08) Installation Template

Biodrier Brochure

Biodrier Brochure
