Black gas hobs
Verified by manufacturer 5 months ago
T27DS59S0
T27DS59S0

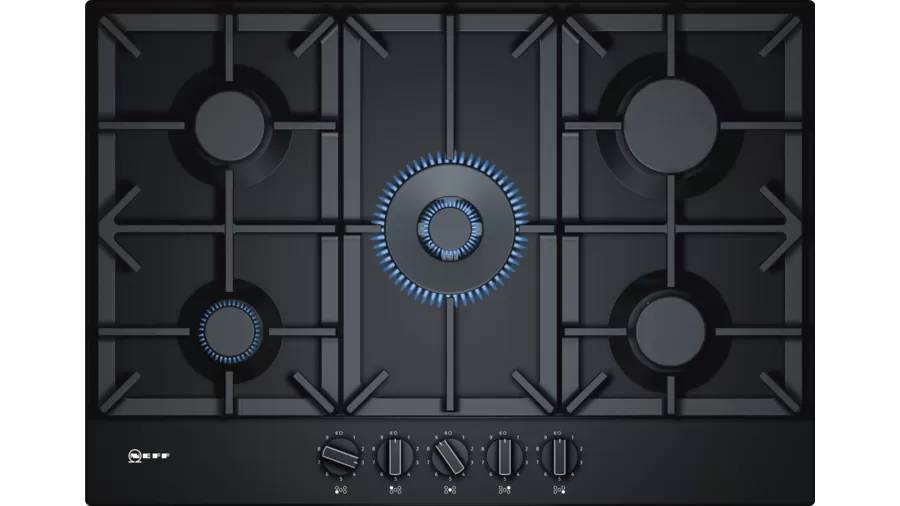

Gas hobs; 60 and 75 cm, black.
Application
Suitable for domestic applications.
Description
A range of black gas hobs in varying sizes.
Features and benefits:
- FlameSelect®: controlled flame.
- Pan supports: continuous cast-iron pan supports for maximum stability and cooking convenience.
- Wok burner: powerful cooking up to 4 kW.
- Sword knobs: a better feel and easier to operate.
General information
Color | Black |
Finish | Enamelled |
Material | Cast iron Rubber Plastic |
Shape | Rectangle |
Length | 520 mm Manufacturer guidanceDepth. |
Width | 582 mm 750 mm |
Height | 53 mm |
Warranty description | Two year |
Uniclass | |
CAWS | N11/40 Appliances N11/360 Appliances |
Specification data - Built-in gas hobs
Hob arrangement | Five burner gas hob with one 1 kW economy burner front left, one 1.75 kW burner rear left, one 4 kW wok burner front center, one 3 kW high speed burner rear right and one 1.75 kW burner front right.Guidance for specification option: Depending on gas type. |
Material and finish | Black enamel. |
Dimensions | |
Width (maximum) | 750 mm. |
Depth (maximum) | 520 mm. |
Type of gas | Natural. |
Electrical supply | 220–240 V, 50/60 Hz. |
Features | FlameSelect with nine steps, design coordinated control dials, ignition via control dials, flame failure safety device, cast iron panel supports. |
Accessories | Not required. Z2480X0. Z32SE10X0. Z32SW11X0. |
Weight | 15.8 kg. |
Sustainability data
Material | Cast iron Rubber Plastic |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
Black gas hobs T26DS49S0, Datasheet
Black gas hobs T27DS59S0, Datasheet
