Blox D Shelter - Timber slatted cycle compound
Verified by manufacturer 5 months ago
BXMW/BLX/D
Health & Safety Accreditation
Certificate type
BBA Agrément Certificate
Certificate type
Health & Safety Accreditation
Certificate type
CQMS
Certificate type
smas WORKSAFE
Certificate type

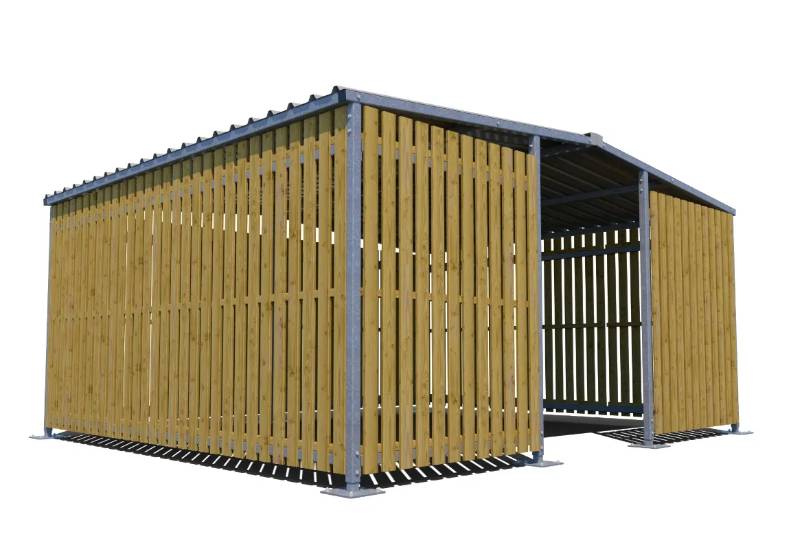

Cycle compound with vertical panned timber slats and galvanized steel frames.
Application
Suitable for providing a covered cycle parking area.
Cycle compounds and lockable cycle shelters provide a designated area with safe, secure bike storage for people to park their bikes. Cycle compounds include lockable gates, providing an enclosed area.
Description
Features and benefits:
- Modular galvanized shelter frame with Colorcoat roof.
- A variety of hardwood and softwood timbers are available.
- Open front entrance.
- 5000mm length and 24 cycle capacity available.

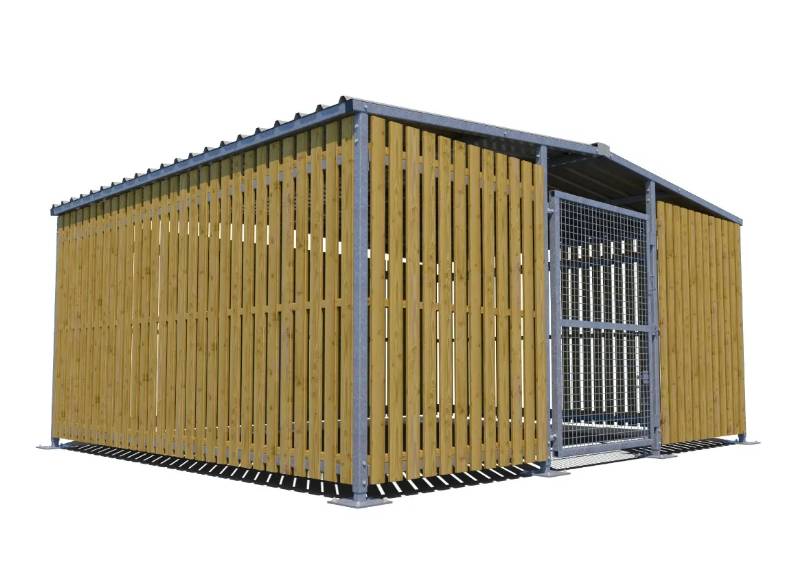

- Mesh clad gates or timber clad gates with hasp and staple lock.
- The modular design allows for larger compounds to be created.
- Powder coated framework.
Options:
- Bespoke Blox cycle shelters also available to accommodate your requirements.
- LED lighting or solar lighting.
- Full installation service.
- Optional Zinc Rich Primer.
General information
Color | Black Blue Green Grey Red |
Finish | Galvanized Powder-coated Guidance for specification option: Polyester powder coated Primed |
Material | Steel Timber |
Length | 4100 mm |
Width | 5000 mm |
Height | 2200 mm |
Uniclass | |
CAWS | B91/340 Cycle shelter B91/385 Shelter |
SKU Code | BX/MW/BLOX/D/41/OF-FSC |
Specification data - Storage shelter systems
Classification data | |
Shelter type | Blox D Shelter |
Method of fixing to ground or base | Adjustable Baseplate. |
Plan size | 4100 x 5000 mm. 5000 x 5000 mm. |
Height | 2200 mm. |
Frame finish | Galvanized. Galvanized and polyester powder coated. Zinc rich primer. Guidance for specification option: Optional. |
Colour | Cobalt Blue RAL 5013. Guidance for specification option: Frame colour. Goose Grey BS 4800 00-A-05. Guidance for specification option: Frame colour. Holly Green BS 4800 14-C-39. Guidance for specification option: Frame colour. Jet Black RAL 9005. Guidance for specification option: Frame colour. Nimbus Grey BS 4800 10 A 07. Guidance for specification option: Frame colour. Sky Blue RAL 5015. Guidance for specification option: Frame colour. Traffic Red RAL 3020. Guidance for specification option: Frame colour. Traffic White RAL 9016. Guidance for specification option: Frame colour. Traffic Yellow RAL 1023. Guidance for specification option: Frame colour. Anthracite Grey RAL 7016. Guidance for specification option: Frame colour. Manufacturer guidancePowder coated to any standard RAL colour |
Colour | Juniper Green 12B29. Guidance for specification option: Sheet roof. Slate Blue 18B29. Guidance for specification option: Sheet roof. Willow 12B17. Guidance for specification option: Sheet roof. Moorland Green 12B21. Guidance for specification option: Sheet roof. Olive Green 12B27. Guidance for specification option: Sheet roof. Ivory RAL9002. Guidance for specification option: Sheet roof. Mushroom 10B19. Guidance for specification option: Sheet roof. Merlin Grey 18B25. Guidance for specification option: Sheet roof. White 00E55. Guidance for specification option: Sheet roof. Pigeon Grey 18B17. Guidance for specification option: Sheet roof. Goosewing Grey 10A05. Guidance for specification option: Sheet roof. Black 00E53. Guidance for specification option: Sheet roof. Buttermilk 10C31. Guidance for specification option: Sheet roof. Bamboo 08C35. Guidance for specification option: Sheet roof. Vandyke Brown 08B29. Guidance for specification option: Sheet roof. Terracotta 04C39. Guidance for specification option: Sheet roof. Wedgewood Blue 18C37. Guidance for specification option: Sheet roof. Ocean Blue 18C39. Guidance for specification option: Sheet roof. |
Accessories | Timber gate. Mesh gate. |
Panels | Equivalent Profiled Steel. Hardwood timber. Softwood timber. Trapezoidal Profile 1000/32. |
Sustainability data
Country of material origin | United Kingdom |
Material | Steel Timber |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Product certifications
Certification type
Health & Safety Accreditation
Alcumus Safe Contractor
BBA Agrément Certificate
CE Marking Certification
Health & Safety Accreditation
Insurance
CQMS
CQMS Safety Scheme
smas WORKSAFE
SMAS Worksafe
Literature
Literature type

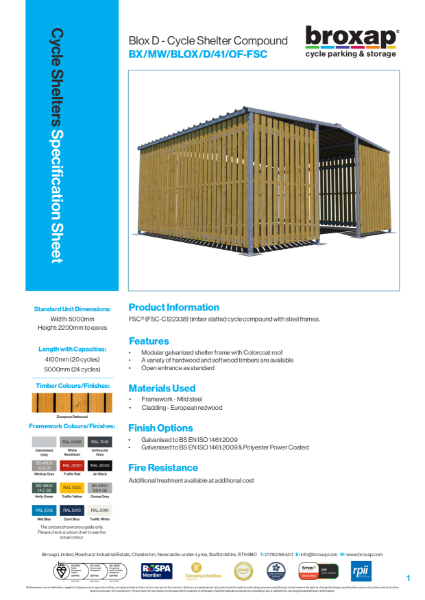

Blox D Shelter Specification Sheet
Broxap Street Furniture Showcase Brochure 2023
Shelters for Schools EYFS, KS1 & KS2 Brochure 2023/24
Shelters for Schools Secondary & Higher Education Brochure 2023/24
