Brass Stair Nosings with Ribbed Treads 2/ 4.6 mm, Gauge and Ramp Tread Profiles. - Stair Edgings
Verified by manufacturer 6 months ago
BN1
BN1
A selection of 2–4.6 mm gauge solid brass stair nosings.
Application
- BN2: For use when butting up to floorings on bull nose steps.
- BN4: For use when butting up to floorings on the step.
- BN67: For abutting to carpet and carpet tiles to finish the nose edge of stairs. Can be rebated to sit flush in wooden steps
- BN7: For use when butting up to floorings on rake back steps.
- BN9: Ribbed tread. Slim design stair nosing for when a subtle and sleek finish is preferred.
- BN9R: Ribbed tread. Slim design rake back stair nosing for when a subtle and sleek finish is preferred.
- BN1SLR: Ribbed tread with ramped back edge, to be fitted directly to the step or on the top of resilient floor coverings.
- BN1SLR-R: Ribbed tread, bevelled back edge for retro fit onto rake back steps.
- BN2SLR: Ribbed tread. Bevelled back edge for retro fit onto floorings.
- BN1SLR15: Ribbed tread. Bevelled back edge for retro fit onto floorings.
- BN1SLR15R: Ribbed tread. Bevelled back edge for retro fit onto rake back steps.
- BN67R: For use when butting up to floorings on rake back steps.
Description
A selection of 2–4.6 mm gauge solid brass stair nosings.
Features and benefits:
Other codes available: BN1; BN67; BN90; BN1SLR (all specified separately).
General information
Color | Manufacturer guidanceBrass base with a range of infill colours available. |
Finish | Polished Guidance for specification option: Brass. Satin Guidance for specification option: Brass. Antiqued Guidance for specification option: Brass and bronze. |
Material | Brass Guidance for specification option: Base. PVC Guidance for specification option: Insert. |
Length | 2500 mm 3200 mm |
Uniclass | |
CAWS | L30/30 Proprietary stairs L30/310 Proprietary stairs L30/590 Applied stair nosings M50/750 Stair nosings and trims M51/550 Stair nosings and trims |
Product range |
Specification data - Rigid stair nosings
Classification data | |
Profile | Solid ribbed tread/ square front. Manufacturer guidanceSquare edged stair nosing shape. |
Base section | |
Material | Brass. |
Finish | Polished brass. Satin brass. Antique brass. Antique bronze. Mill brass. |
Size | |
Rise x going | 26 x 60 mm. |
Gauge | 4.6 mm. |
Inserts | |
Material | PVC. |
Colour | Manufacturer guidanceRange of infill colours available. |
Accessories | Not required. BTI25. Guidance for specification option: Tread extension, 4.6 mm gauge only. BTI52. Guidance for specification option: Tread extension, 4.6 mm gauge only. BNE naplock profile. Guidance for specification option: For use on back edge for carpet installations. |
Installation | To be supplied pre-drilled and countersunk in the channel for concealed fixing and on-site retro fitting of the infill. To be supplied undrilled for adhesive fixing using F. Ball & Co. Ltd Stycco Flex Rapid Curing Flexible Adhesive. |
Length | 3200 mm. Manufacturer guidanceMaximum. |
Sustainability data
Country of material origin | Europe |
Country of product manufacture | United Kingdom |
Material | Brass Guidance for specification option: Base. PVC Guidance for specification option: Insert. |
Recyclability | 100% recyclable at suitable disposal centres |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
Literature
BN1 Polished Brass Technical Datasheet
BN1 Antique Brass Technical Datasheet
BN1 Antique Bronze Technical Datasheet
BN1 Satin Brass Technical Datasheet
BN2 Antique Brass Technical Datasheet

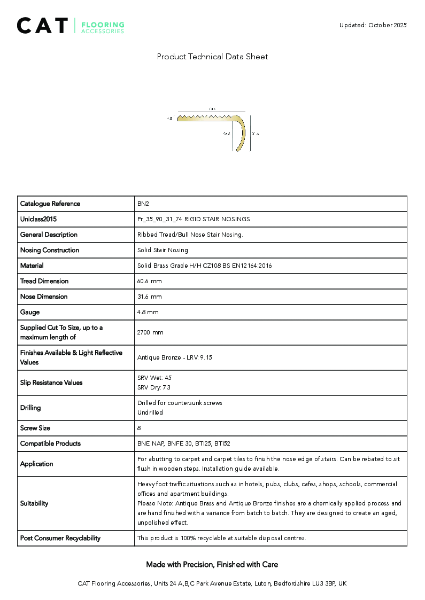

BN2 Antique Bronze Technical Datasheet

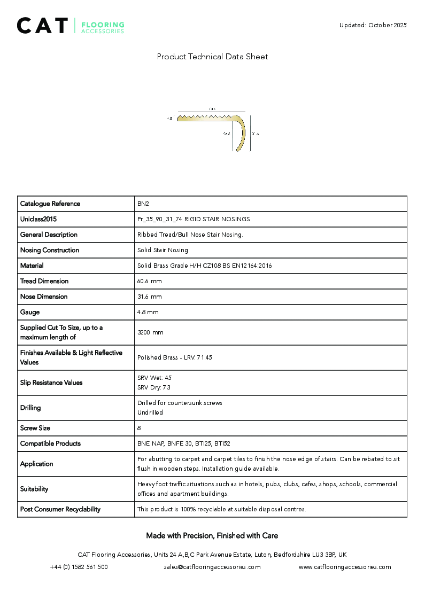

BN2 Polished Technical Datasheet
BN2 Satin Brass Technical Datasheet
BN4 Antique Brass Technical Datasheet
BN4 Antique Bronze Technical Datasheet
BN4 Polished Brass Technical Datasheet
BN4 Satin Brass Technical Datasheet
BN67 Antique Brass Technical Datasheet
BN67 Antique Bronze Technical Datasheet
BN67 Polished Brass Technical Datasheet
BN67 Satin Brass Technical Datasheet
BN7 Antique Brass Technical Datasheet
BN7 Antique Bronze Technical Datasheet
BN7 Polished Brass Technical Datasheet
BN7 Satin Brass Technical Datasheet

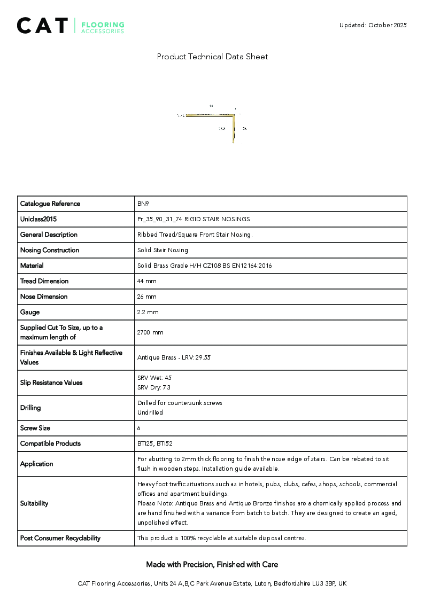

BN9 Antique Brass Technical Datasheet
BN9 Antique Bronze Technical Datasheet

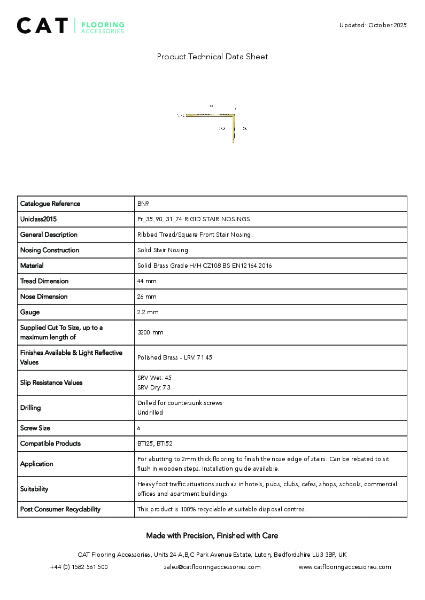

BN9 Polished Brass Technical Datasheet
BN9 Satin Brass Technical Datasheet

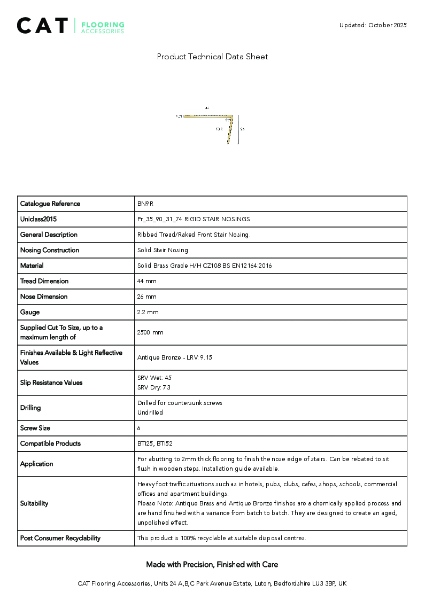

BN9R Antique Brass Technical Datasheet
BN9R Antique Bronze Technical Datasheet
BN9R Polished Brass Technical Datasheet
BN9R Satin Brass Technical Datasheet
BN11 Antique Brass Technical Datasheet

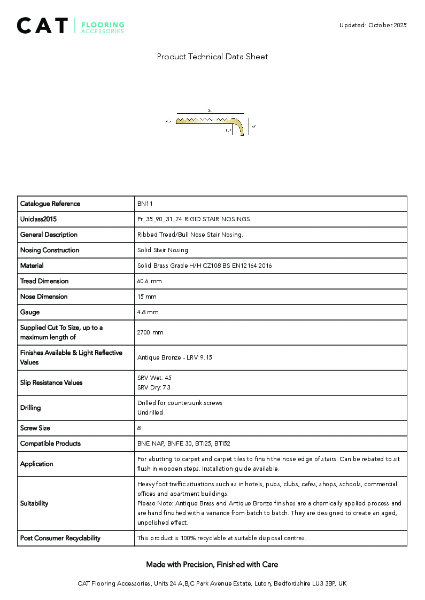

BN11 Antique Bronze Technical Datasheet
BN11 Polished Brass Technical Datasheet
BN11 Satin Brass Technical Datasheet
BN1SLR Antique Bronze Technical Datasheet
BN1SLR Antique Brass Technical Datasheet
BN1SLR Polished Brass Technical Datasheet
BN1SLR Satin Brass Technical Datasheet
BN1SLR-R Antique Brass Technical Datasheet

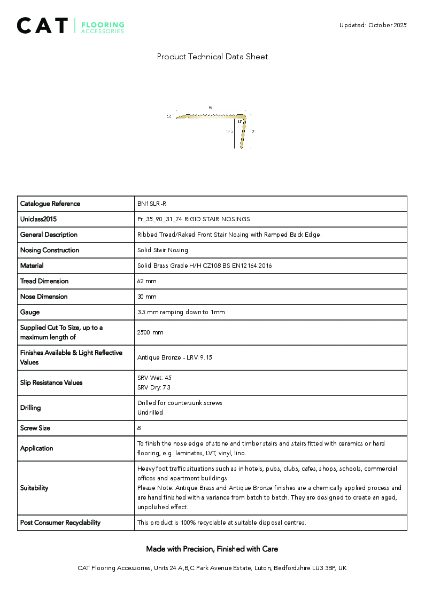

BN1SLR-R Antique Bronze Technical Datasheet
BN1SLR-R Polished Brass Technical Datasheet
BN1SLR-R Satin Brass Technical Datasheet
BN2SLR Antique Brass Technical Datasheet
BN2SLR Antique Bronze Technical Datasheet
BN2SLR Polished Brass Technical Datasheet
BN2SLR Satin Brass Technical Datasheet
BN1SLR15 Antique Brass Technical Datasheet
BN1SLR15 Antique Bronze Technical Datasheet
BN1SLR15 Polished Brass Technical Datasheet

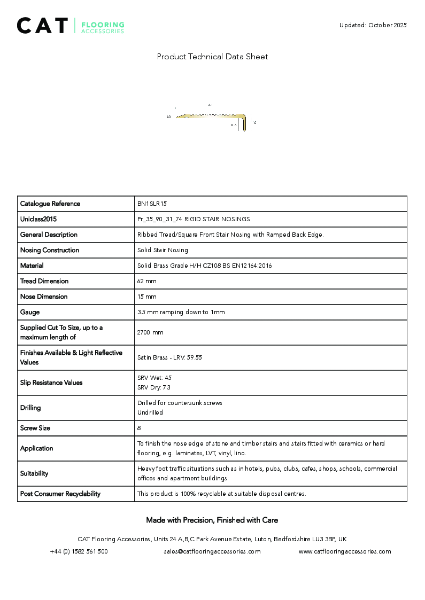

BN1SLR15 Satin Brass Technical Datasheet
BN1SLR15R Antique Brass Technical Datasheet

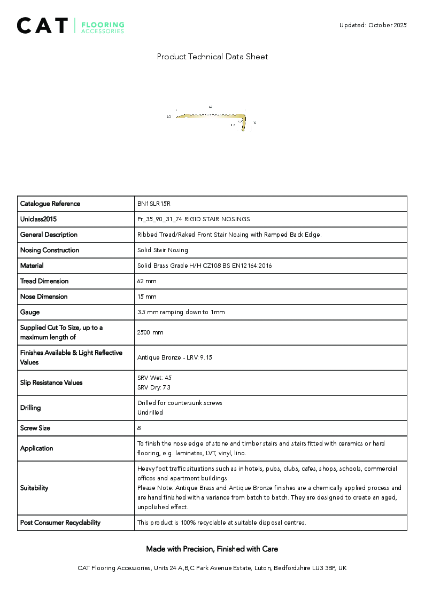

BN1SLR15R Antique Bronze Technical Datasheet
