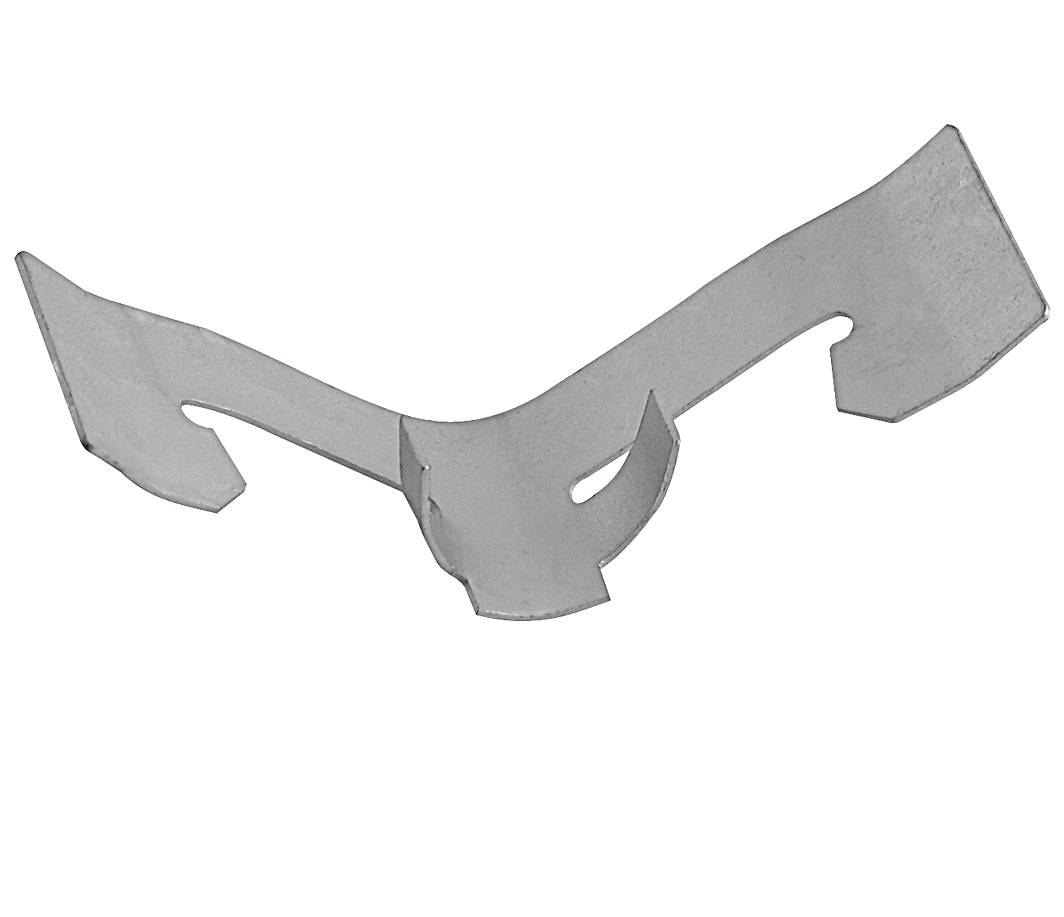

Britclips® - Support Clip
Verified by manufacturer 8 days ago

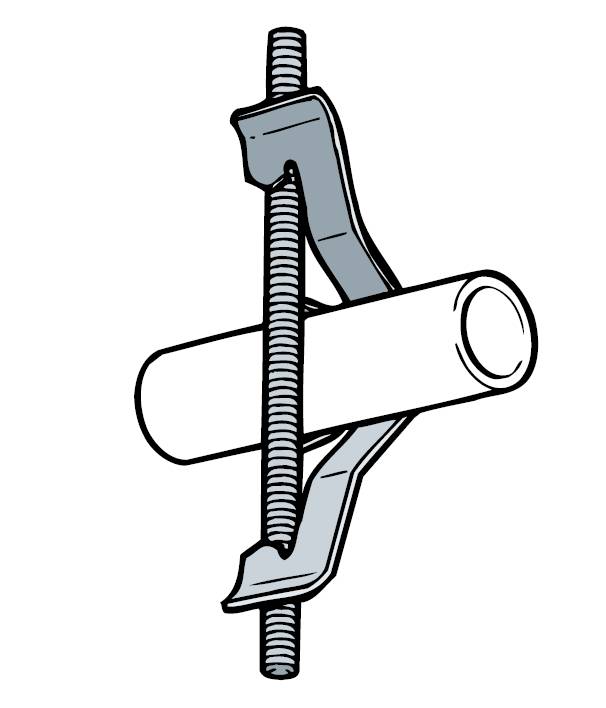

Pipe clips for quick fixing to threaded rods or flanges without welding or drilling.
Application
For quick fixing to threaded rods or flanges without welding or drilling.
For use with static loads only.
Description
Pipe clips for quick fixing to threaded rods or flanges without welding or drilling.
Features and benefits:
- Material: spring steel, type CS70.
- Surface treatment: Delta-Tone 9000 (480 hours).
- Compatible with BIS threaded rod (specified separately).
General information
Color | Silver |
Finish | Guidance for specification option: Delta-Tone 9000 (480 hours). |
Material | Steel |
Uniclass | |
CAWS | P20/30 Proprietary P20/170 Proprietary |
Specification data - Pipe clips
Clip type | One piece. |
Material | Spring steel, type CS70. |
Pipe diameter | 16–20 mm. 25–32 mm. Manufacturer guidanceThreaded rod: M6–M8/ M10. |
Load capacity | 450 N. |
Material/ Finish | Delta-Tone 9000 (480 hours). |
Sustainability data
Country of product manufacture | United Kingdom |
