Built-in Freezer, Single Door Cooling, 82 cm Tall
Verified by manufacturer 5 months ago
Built-under freezer with no frost and door alarm for convenient and worry-free freezing where space is limited.
Application
For domestic applications.
Description

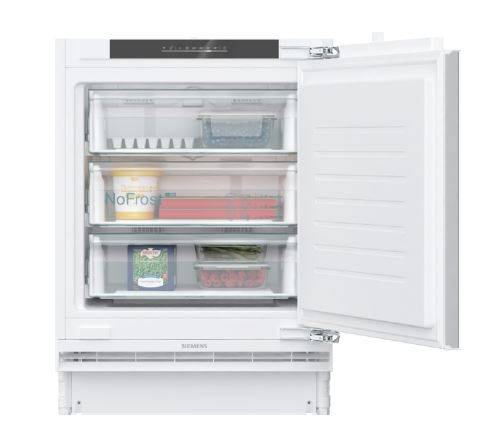

Built-under freezer with freezer section, 82 cm high, flat hinge.
Features and benefits:
- noFrost – eliminating the need to defrost the freezer.
- Three transparent freezer drawers provide plenty of space and an optimum view.
- Home Connect: manage home appliances from anywhere.
Models:
- GU21NVFE0G: 82 x 59.8 cm noFrost built under freezer, super freeze, three drawers, door open alarm, LED electronics, fixed hinge, Home Connect.
General information
Color | White |
Material | Glass Metal |
Shape | Rectangle |
Length | 548 mm |
Width | 598 mm |
Height | 820 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N12/410 Refrigeration and freezer units N12/410 Refrigeration and freezer units |
Specification data - Freezers
Climatic class | SN–T. |
Installation | Built-in. |
Material and finish | White-coated steel. |
Format | Undercounter. |
Dimensions | |
Height (maximum) | 820 mm. |
Width (maximum) | 598 mm. |
Depth (maximum) | 548 mm. |
Net storage | 85 L. |
Freezing capacity | 8 kg/24 h. |
Power cut safe time | 9 hours. |
Drawers | Three, transparent. |
Door arrangement | Reversible. |
Features | Digital temperature display. |
Electrical supply | 220–240 V. |
EU energy label rating (minimum) | E. |
Frequency | 50 Hz. |
Fuse rating | 10 A. |
Noise | 35 dB(A) re 1 pW. |
Integral accessories | One ice cube tray. |
Accessories | Not required. KU20ZSX0: Stainless steel door panel. KF10ZAX0: Door panel with decor frame. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
iQ300, Built-in freezer, 82 x 59.8 cm, flat hinge GU21NVFE0G
