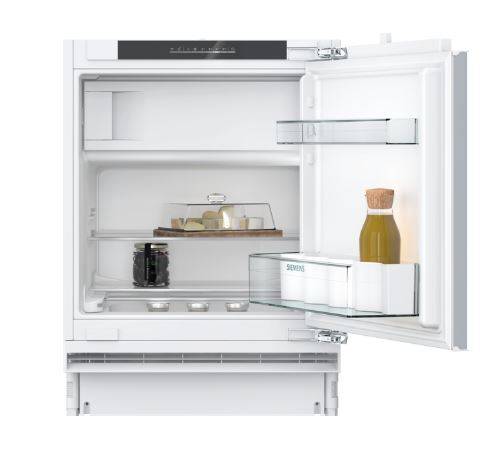

Built-in Fridge with Ice Box, Single Door Cooling, 82 cm Tall
Verified by manufacturer 4 months ago
Built-under fridge with four star freezer section and door alarm for worry-free storage
Application
For domestic applications.
Description
Built-under fridge with freezer section, 82 x 60 cm, flat hinge.
Features and benefits:
- superCooling – faster cooling for fresh food.
- LED light – even lighting throughout the inside of the fridge to keep everything in view.
- Safety glass shelves – extra strong and easy to clean.
- Home Connect – manage home anywhere.
Models:
- KU22LVFD0G: 82 x 59.8 cm under counter fridge with four star ice box, two vegetable drawers, one with sliding lid, three glass shelves, LED light with soft start, fixed hinge, sabbath mode, home connect, bottle wave rack, LED light, three glass shelves, fixed hinge.
General information
Color | White |
Material | Glass Metal |
Shape | Rectangle |
Length | 548 mm |
Width | 598 mm |
Height | 820 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N12/410 Refrigeration and freezer units N12/410 Refrigeration and freezer units |
Specification data - Fridge-freezers
Climatic class | SN–T. |
Installation | Built-in. |
Material and finish | White-coated steel. |
Format | Freezer on top. |
Dimensions | |
Height (maximum) | 820 mm. |
Width (maximum) | 598 mm. |
Depth (maximum) | 548 mm. |
Refrigerator | |
Net storage | 93 L. |
Drawers | Two vegetable drawers. |
Shelves | Three glass safety shelves (two height adjustable). |
Door arrangement | Two door bins. |
Features | Integral LED light. |
Freezer | |
Net storage | 17 L. |
Freezing capacity | 3 kg/24 h. |
Safety rating | Four star. |
Power cut safe time | 9 hours. |
Shelves | One, full width. |
Door arrangement | Reversible. |
Features | Digital temperature display. |
Electrical supply | 220–240 V. |
EU energy label rating (minimum) | D. |
Frequency | 50 Hz. |
Fuse rating | 10 A. |
Noise | 35 dB(A) re 1 pW. |
Integral accessories | One egg tray, one ice cube tray. |
Accessories | Not required. KU20ZSX0: Stainless steel door panel. KSZGGM00. KF10ZAX0: Door panel with decor frame. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
iQ300, Built-under fridge with freezer section, 82 x 60 cm, flat hinge KU22LVFD0G
