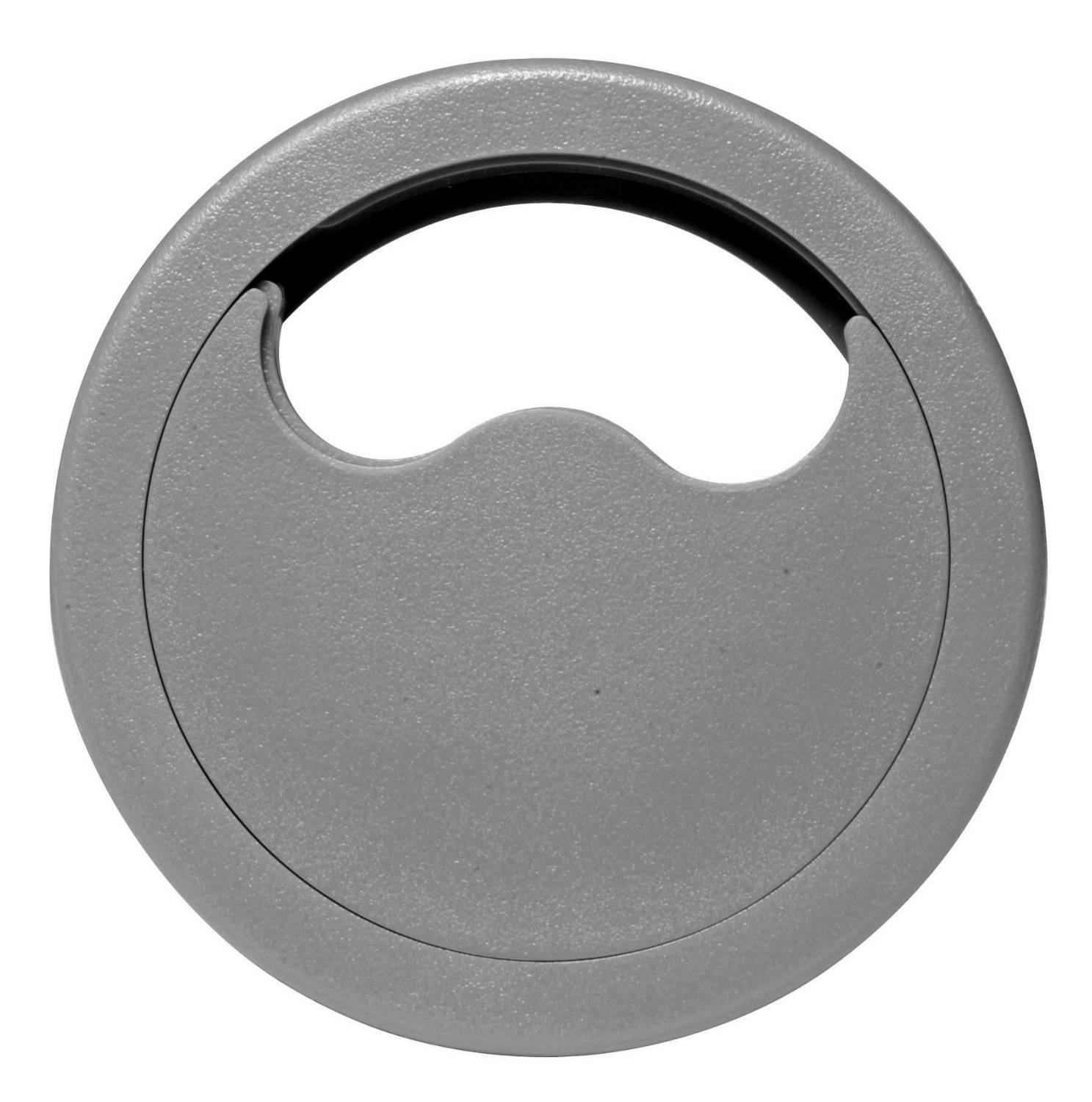

Cable Grommet
Verified by manufacturer 2 months ago
Cable grommets for all cable types, with a simple push down fixing.
Description
Cable grommets that can accommodate all cable types and provide a simple push down fixing.
Features and benefits:
- 127 mm (Also available as 210 mm.
- Manufactured from flame retardant Polycarbonate ABS
- Push down fast fixing.
- Can accommodate 3 x 25 mm metal conduit or 4 x 20 mm conduit.
- ‘Fast-Fit’ installation from floor tile fixing to cable deployment.
- Allows simple access for services underfloor to workstations of all kinds.
- UL 94 VO Flame class rating.
- Integral carpet gripper spikes.
- Floor service unit conforms to IEC-61534-22.
- Cut-out dimensions, Ø127mm -0/+3
General information
Color | Grey |
Finish | Grey |
Material | Polycarbonate ABS |
Shape | Circle |
Length | 140 mm |
Width | 140 mm |
Height | 35 mm |
Warranty description | One year |
Specification data
Colour | Standard grey. Guidance for specification option: (RAL 7031). |
Casework lid finish | Hard Foam. Soft Foam. |
Sustainability data
Contains Red List materials | No |
Country of material origin | China |
Country of product manufacture | China |
Recyclability | 100% |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2016 | 3 |
 IFC | IFC2X3 | 2 |
