Carlisle window Bar C5 (SR3)

Verified by manufacturer 12 days ago

Stafford Bridge Doors Ltd Third party certifications:
  • BRE Certificate

    BRE Certificate

    Certificate type

Stafford Bridge's Carlisle barset sets new security standards for buildings, infrastructure, data centres, and heritage sites. Independently tested to LPS 1175 for protection against forced entry.

Jump to:
BOS
+44 (0)1234 826 316 Website

Application

  • Heritage buildings.
  • Commercial properties.
  • Government buildings.
  • Utilities and substations.
  • Suitable for internal or external installation.
  • Fixing into generic substrate of structural timber or steelwork, blockwork or brickwork/concrete.
  • Modular design for easy installation.

Description

The Carlisle barset from Stafford Bridge raises the standards for security barset configurations across many buildings and facilities including national infrastructure, data centres, and heritage buildings where bespoke arch head solutions are often required. Independently tested and certified to LPS 1175 C5, Carlisle barsets provide protection from deliberate forced entry attacks.


The modular design of the Carlisle barsets allows multiple frames to be installed across a window opening together with a choice of face or reveal fixing, giving flexibility with non-standard window dimensions. Available in a choice of fifty-six powder coat paint colours and manufactured from a choice of mild steel or heavy-duty stainless steel the Carlisle barsets are particularly suited to the Heritage sector where a bespoke, adaptable, and attractive design is paramount.

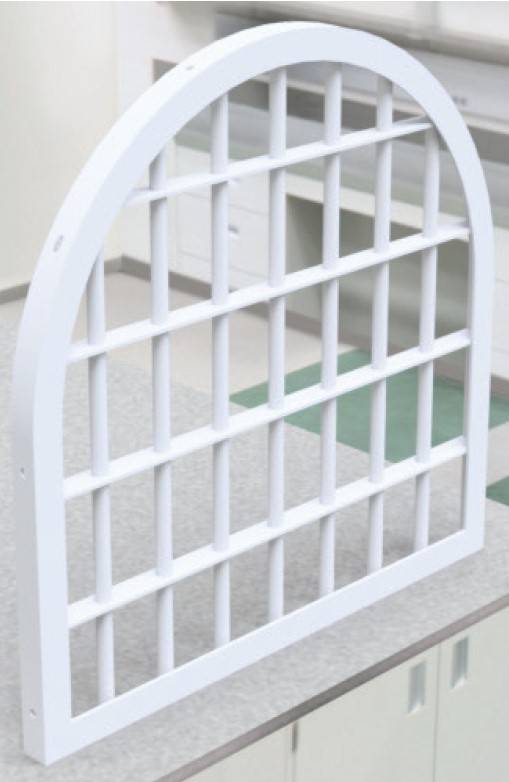

Moreover, Carlisle is available as both standard rectangular and arch head.


Features and benefits:

  • Can be face fixed or reveal fixed.
  • Can be fixed together, either side by side or on top of each other.
  • Suitable for internal or external installations.
  • Available with a range of security fasteners.

General information

Color

Beige

Black

Blue

Bronze

Brown

Show more

Manufacturer guidance

Choice of 56 powder coat paint colours as standard.

Finish

Powder-coated

Material

Carbon steel

Stainless steel

Shape

Rectangle

Square

Manufacturer guidance

Arched

Width

400 mm

Guidance for specification option:

Minimum

6000 mm

Guidance for specification option:

Maximum

Height

400 mm

Guidance for specification option:

Minimum

6000 mm

Guidance for specification option:

Maximum

Warranty description

25 year

Guidance for specification option:

25 year guarantee for stainless steel construction.

Uniclass

Pr_30_59_57_77 Security window screensPrimary

CAWS

L10/60 Security

L10/690 Security

Specification data - Security window screens

Screen

-

Material

Carbon steel.

Stainless steel.

Size

-

Manufacturer guidance

  • Minimum Height/ Width = 400 mm.
  • Maximum Height/ Width = 6000 mm.

Finish

Powder-coated.

Guidance for specification option:

Available in 56 powder coated paint colours as standard. Insert requirements.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

95%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

BRE Certificate

BRE Certificate

Carlisle Security Barsets LPS 1175 Certificate
