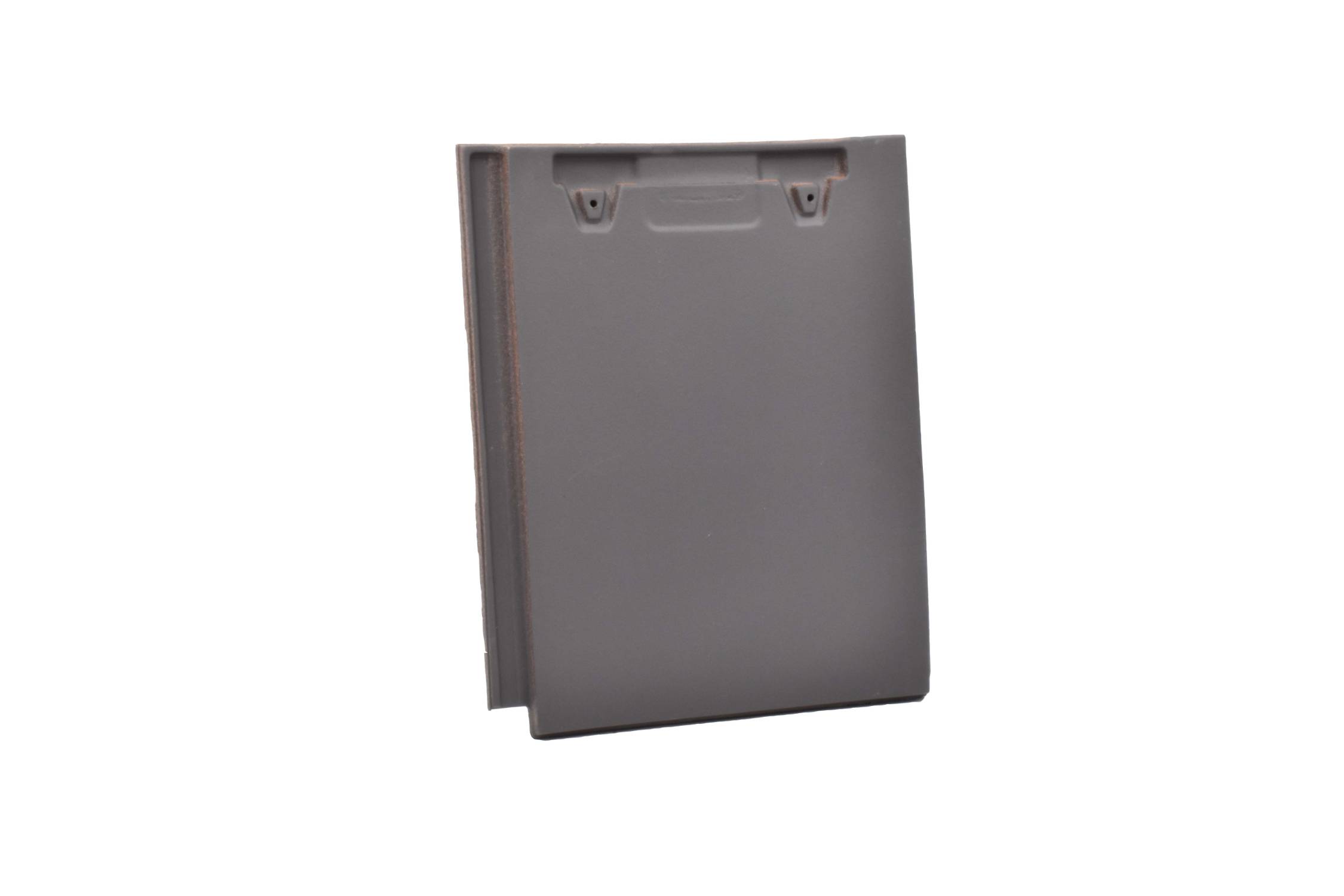

Cassius Antique Slate Clay Roof Tile

Name: Cassius Antique Slate Clay Roof Tile
Brand: Sandtoft Roof Tiles
SKU: hCva5BwqcMGGb1128qjjRg

Verified by manufacturer 5 days ago

Sandtoft Roof Tiles

A large format clay tile with an interlocking design.

Jump to:

+44 (0)161 4918200 Website

Application

Suitable for external roofing - minimum roof pitch 22.5°

Description

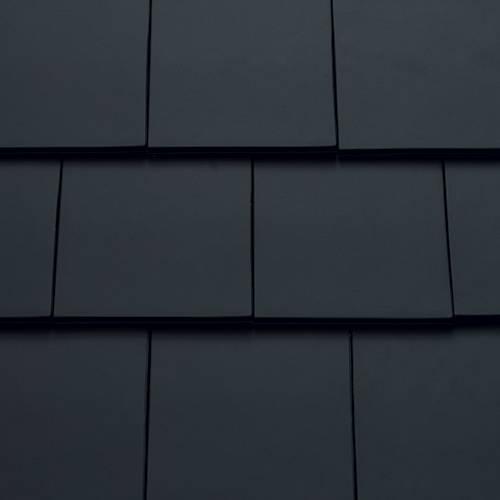

Cassius is a thin leading edge large format tile that creates an attractive natural clay roof, while the large format size and interlocking design reduce material and installation costs.

General information

Color	Grey
Finish	Smooth
Material	Clay
Shape	Rectangle
Length	390 mm
Width	309 mm

Uniclass	Pr_25_93_72_13 Clay plain tilesPrimary
CAWS	H60/105 Clay roof tiling H60/3 Roof tiling

Specification data - Clay plain tiles

Classification data
Standard	To BS EN 1304.
Tile type	Large format interlocking clay roof tile.
Profile	Plain tile.
Colour	Antique slate.
Surface finish	Textured.
Size	418 x 335 mm.
Pitch	Minimum 22.5°.
Head-lap	75–120 mm.
Cover Width	307 mm.
Profile depth	16 mm.
Roof covering	9.5 tiles per m².
Weight	4.04 kg per tile; 38 kg per m² as laid.
Battens	Up to 450 mm rafter centres: 38 x 25 mm. Up to 600 mm rafter centres: 50 x 25 mm. Manufacturer guidance Battens per m²: 2.9 m at 75 mm headlap. Spacing at maximum gauge: 343 mm. Spacing at minimum gauge: 298 mm.
Fixing	For tiles: 45 x 3.35 mm aluminium ring shank clout head. For metal tile clips: 55 x 3.35 mm aluminium ring shank clout head.
