CavityTherm Meter Box Panel - Insulation

Name: CavityTherm Meter Box Panel - Insulation
Brand: Unilin Insulation UK Limited
SKU: 9ZARi7CES66ENyb4kf91aH

Verified by manufacturer 3 months ago

Third party certifications:

Preformed meter box accessory panel.

Jump to:

Application

For areas that require a meter box.

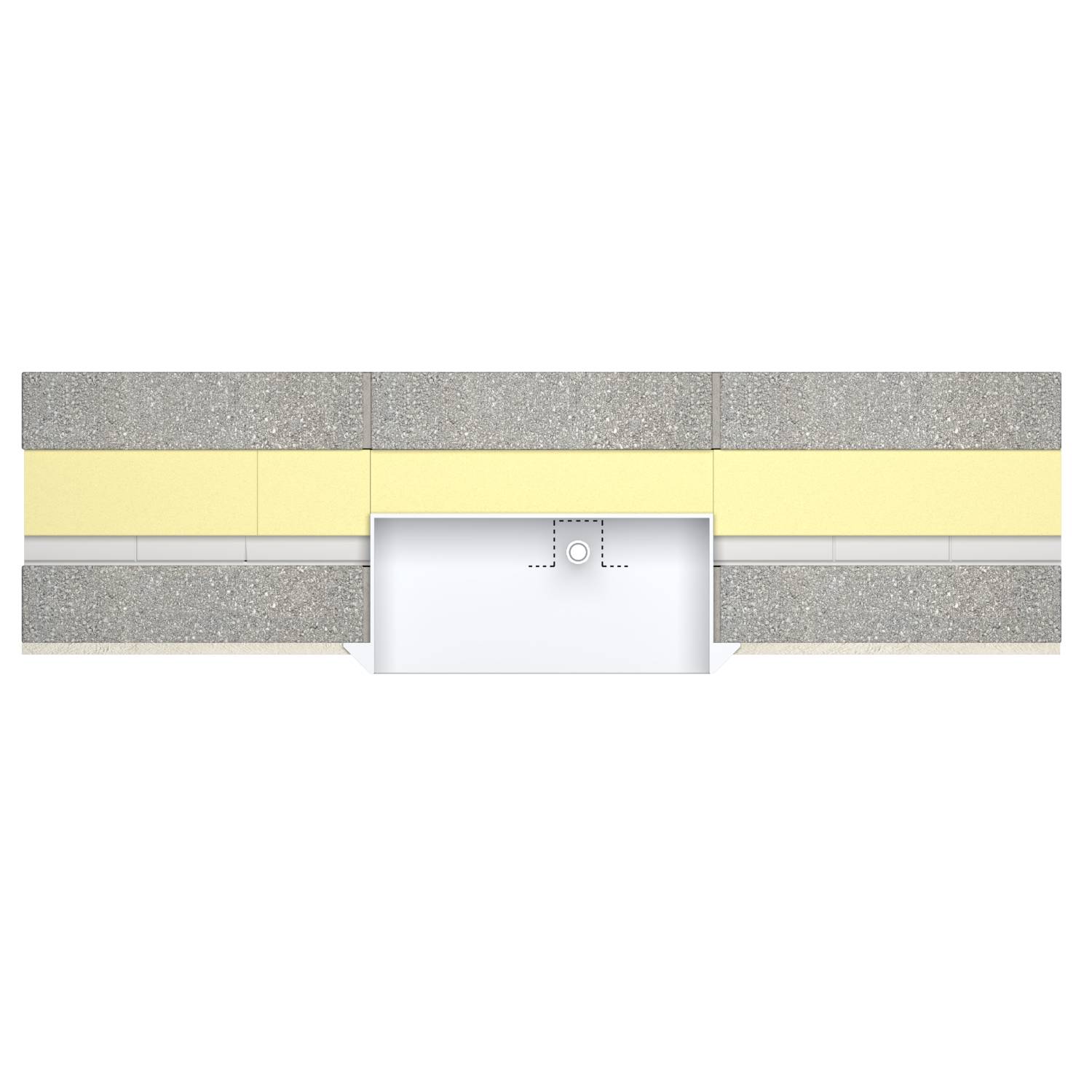

The preformed meter box accessory allows a recess space for placement of a meter box, leaving the insulation to run in a continuous plane.

Composite foil-facing on both sides.

Uniclass	Pr_25_71_63_66 Polyisocyanurate (PIR) foam boardsPrimary
CAWS	F30/10 Full fill cavity insulation F30/150 Full fill cavity insulation

Standard	To BS EN 13165.
Third-party certification	BBA Certificate No. 23/7059.
Fire performance	Euroclass F.
Thermal conductivity (maximum)	0.021 W/mK.
Compressive strength at 10% deformation	>100 kPa.
Cross section	Rectangular.
Thickness (nominal)	50 mm. 75 mm. 100 mm.
Face size (length x width)	1200 x 600 mm.
Density	32 kg m³.
Recycled content	0%.
Facing	Low emissivity composite foil on both sides.
Edges	Square.

Country of material origin	United Kingdom Guidance for specification option: UK and Ireland.
Country of product manufacture	United Kingdom Guidance for specification option: UK and Ireland.
Material	Polyisocyanurate (PIR)
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	10.3 kg CO₂ eq/m²
Recycled content As defined in clause 7.8 of BS EN ISO 14021	0 %
