CAYANO / STAR BS EN 1390 type 2 Steel Enamel Bath - Bath

Verified by manufacturer 7 months ago

Cayano Star 2755 - 1700 x 700 mm

KALDEWEI UK Ltd Variant:
Third party certifications:
  • ISO 14025

    Certificate type

  • Cradle to Cradle Certified

    Cradle to Cradle Certified

    Certificate type

  • UK Conformity Assessed (UKCA)

    UK Conformity Assessed (UKCA)

    Certificate type

  • LEED US

    LEED US

    Certificate type

  • Antislip DIN EN 16165

    Antislip DIN EN 16165

    Certificate type

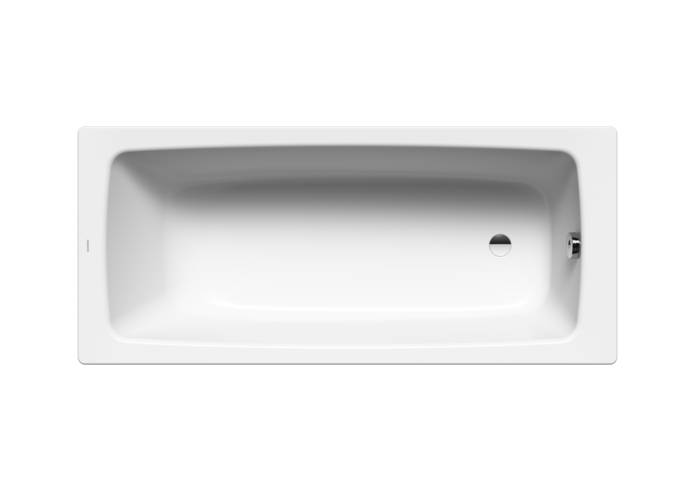

Rectangular bath.

Jump to:
+44 (0)800 840 9770 Website

Application

Suitable for use in any bathroom including hotels, leisure, commercial and domestic bathrooms.

Description

The lines of the CAYONO are deliberately matched to the formal language of modern architecture. Straight lines, small radii and consistent geometry signal clarity, harmony and stringency in an increasingly complex and hectic world.


At the same time, CAYONO is particularly well thought out for everyday use. Steep side walls ensure a generous bathtub interior, even with small external dimensions. The evenly designed bathtub floor offers plenty of space for comfortable showering.


Features and benefits:


  • Single-seat bath with waste positioned at the foot end.
  • Independent anti-slip design.
  • Available with or without grips.
  • Made of KALDEWEI steel enamel.
  • Modern rectangular bathtub with spacious interior of the tub.

General information

Color

White

Black

Beige

Finish

Gloss

Matt

Material

Steel

Shape

Rectangle

Length

1500 mm

1600 mm

1700 mm

1800 mm

Width

700 mm

750 mm

800 mm

Height

410 mm

Warranty description

30 year

Uniclass

Pr_40_20_06_08 BathsPrimary

CAWS

N13/35 Baths

N13/355 Baths

Specification data - Baths

Form

Rectangular.

Materials

Enamelled steel.

Colour

Alpine white.

Gloss black.

Matt alpine white.

Matt warm biege.

Size

1700 x 700 mm.

Volume to overflow (maximum)

180 L.

Water supply, overflow and waste holes

-

Water supply

Two tap holes.

None.

Overflow

Comfort level plus overflow.

Comfort level waste overflow.

Waste

Comfort level waste overflow.

Comfort level plus waste.

Integral accessories

Handgrips, chrome.

Handgrips, alpine white.

Handgrips, gold.

Handgrips, matt chrome.

Handgrips, polished brass.

Weight

48 kg.

Anti-slip finish

To DIN EN 16165, Category B (partial).

To DIN EN 16165, Category C (full).

To DIN EN 16165, Category B (full pattern).

None.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

Germany

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

30 %

BIM objects

Platform Compatible Version
Revit
-

1

Third party certifications

ISO 14025

ISO 14025

EPD in accordance with ISO 14025

Cradle to Cradle Certified

Cradle to Cradle Certified

Luxstainability Report

UK Conformity Assessed (UKCA)

UK Conformity Assessed (UKCA)

UKCA

LEED US

LEED US

LEED

Antislip DIN EN 16165

Antislip DIN EN 16165

Invisible Antislip DIN EN 16165 Annex A- Class C

Antislip DIN EN 16165

Antislip DIN EN 16165

Partial-Full Antislip DIN EN 16165 Annex A- Class B

Literature

Kaldewei 2024 Range Brochure

Kaldewei 2024 Range Brochure

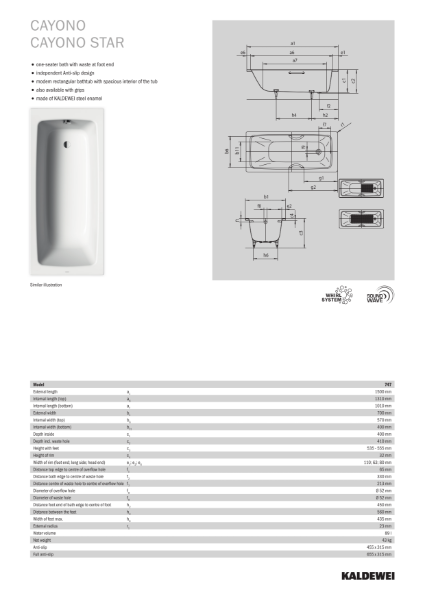

2747_747_Cayono_Technical Data Sheet

2747_747_Cayono_Technical Data Sheet

2748_748_Cayono_Technical Data Sheet

2748_748_Cayono_Technical Data Sheet

2749_749_Cayono_Technical Data Sheet

2749_749_Cayono_Technical Data Sheet

2750_750_Cayono_Technical Data Sheet

2750_750_Cayono_Technical Data Sheet

2751_751_Cayono_Technical Data Sheet

2751_751_Cayono_Technical Data Sheet

2753_753_Cayono STAR Grips_Technical Data Sheet

2753_753_Cayono STAR Grips_Technical Data Sheet

2754_754_Cayono STAR Grips_Technical data Sheet

2754_754_Cayono STAR Grips_Technical data Sheet

2755_755_Cayono STAR Grips_Technical Data Sheet

2755_755_Cayono STAR Grips_Technical Data Sheet

2756_756_Cayono STAR Grips_Technical Data Sheet

2756_756_Cayono STAR Grips_Technical Data Sheet

2757_757_Cayono STAR Grips_Technical Data Sheet

2757_757_Cayono STAR Grips_Technical Data Sheet

KA4001_KA4002_Comfort Level-Comfort Level PLUS Waste

KA4001_KA4002_Comfort Level-Comfort Level PLUS Waste
