Application

For indoor and outdoor applications.

Description

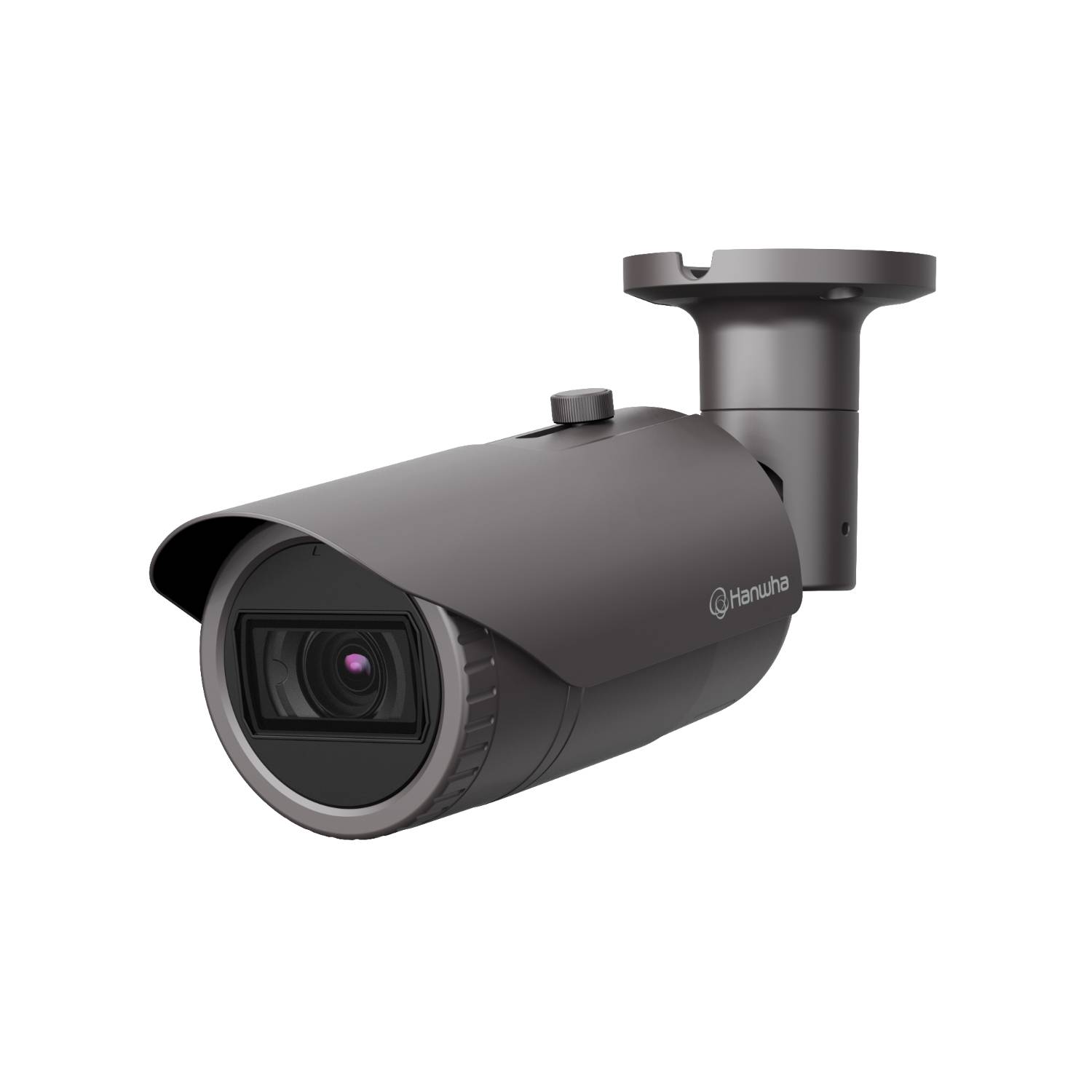

4 MP IR bullet camera.


Features and benefits:

  • Maximum 4 MP resolution.
  • Colour: 0.1 lux (f1.6, 1/30 s), B/W: 0 lux (IR LED on).
  • 3.2–10 mm (3.1x) motorized varifocal.
  • IR viewable length: 30 m (98.42 ft).
  • Day and night (ICR), WDR (120 dB).
  • H.265, H.264, MJPEG, multiple streaming supported.
  • Motion detection, tampering, defocus detection.
  • Hallway view (90°/270°), LDC support.
  • Micro SD/SDHC/SDXC memory slot (128 GB maximum).
  • IP66, IK10.

General information

Color

Grey

Material

Aluminium

Shape

Other

Length

259.8 mm

Width

78 mm

Height

78 mm

Uniclass

Pr_60_75_86_09 Internet protocol (IP) bullet camerasPrimary

CAWS

W90/170 Surveillance CCTV systems

W90/170 Closed-circuit television (CCTV) system

Specification data - Internet protocol (IP) bullet cameras

Image sensor

1/3-inch CMOS.

Spectrum

Colour/ monochrome.

Resolution (minimum)

2560 x 1440.

1920 x 1080.

1280 x 960.

1280 x 720.

800 x 600.

800 x 448.

720 x 576.

720 x 480.

640 x 480.

640 x 360.

320 x 240.

Minimum illumination

Colour 0.1 lux at f1.6 (1/30 s), monochrome 0 lux (IR LED on).

Integrated illumination

Infrared.

Camera functions

-

Focus

Simple focus.

Shutter

Minimum/ Maximum/ Anti-flicker (1/5–1/12000 s).

Automatic gain control

Low/ Middle/ High.

White balance control

ATW/ AWC/ Manual/ Indoor/ Outdoor.

Backlight compensation

BLC, WDR, SSDR.

Wide dynamic range

120 dB.

Day/ night mode switching

Automatic (ICR).

Privacy masks

Six, rectangular zones.

Display type

Camera title displayed up to 85 characters.

Lens

-

Format

Varifocal.

Iris

Automatic, d.c. drive.

Focal length

3.2–10 mm.

Guidance for specification option:

3.1x motorized varifocal.

Aperture range

F1.6–F2.9.

Angle of view

H: 99–30°, V: 53–17°, D: 116–35°.

Video motion detection

Four, polygonal zones.

Power supply

PoE.

12 V d.c.

Network connectivity

10/100BASE-T via RJ-45.

Network protocols

IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP.

Video compression formats

H.265/H.264, MJPEG.

Guidance for specification option:

H.265/H.264: Main/High.

Video streaming

Unicast (6 users)/ Multicast.
Multiple streaming (up to 3 profiles).

Integral memory storage (minimum)

512 MB RAM, 256 MB Flash.

Alarm inputs

One.

Alarm outputs

One.

Camera housing

-

Ingress protection (minimum)

To BS EN 60529, IP66.

Impact protection (minimum)

To BS EN 62262, IK10.

Accessories

Not required.

SBP-302PM.

SBO-100B1.

Guidance for specification option:

Backbox.

SBO-147B.

Guidance for specification option:

Waterproof backbox.
