Application

For indoor and outdoor applications.

Description

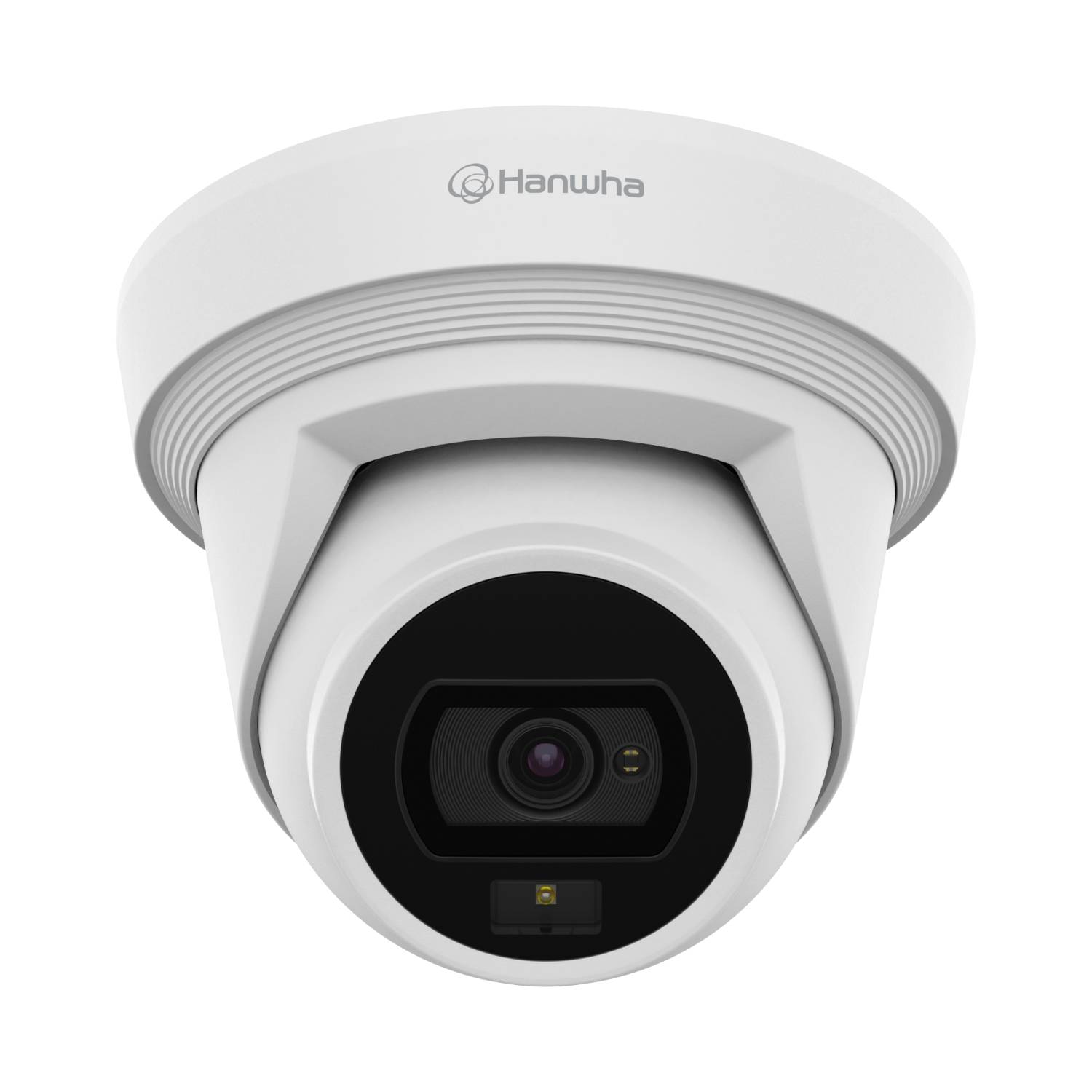

5 MP H.265 IR flateye camera.


Features and benefits:

  • Maximum 5 megapixel (2592 x 1944) resolution.
  • 3.0 mm fixed lens.
  • Colour: 0.022 lux (f1.2, 1/30 s)/ BW: 0.0022 lux (f1.2, 1/30 s, 30 IRE), 0 lux (IR LED on).
  • Maximum 30 fps at 5 MP (H.265/ H.264).
  • H.265, H.264, MJPEG codec, WiseStreamⅢ (based on AI engine), multiple streaming.
  • Day and night, WDR (120 dB), WiseNRⅡ (using AI engine).
  • Object classification, attributes and detection shot.
  • Micro SD/ SDHC/ SDXC memory slot (256 GB maximum).
  • Hallway view, WiseStreamⅢ (based on AI engine).
  • ONVIF Profile S/G/T/M, SUNAPI (HTTP API).
  • LDC, PoE.
  • IR viewable length.
  • White LED: 30 m (98.42 ft).
  • IR: 30 m (98.42 ft).

General information

Color

White

Material

Aluminium

Shape

Circle

Length

140 mm

Width

140 mm

Height

99.6 mm

Uniclass

Pr_60_75_86_65 Internet protocol (IP) high-speed pan-tilt-zoom (PTZ) camerasPrimary

CAWS

W90/170 Surveillance CCTV systems

W90/170 Closed-circuit television (CCTV) system

Specification data - Internet protocol (IP) high-speed pan-tilt-zoom (PTZ) cameras

Image sensor

1/2.8-inch CMOS.

Spectrum

Colour/ monochrome.

Resolution (minimum)

2592 x 1944.

2560 x 1440.

1920 x 1080.

1280 x 960.

1280 x 720.

800 x 600.

800 x 448.

720 x 576.

720 x 480.

640 x 480.

640 x 360.

320 x 240.

Minimum illumination

Colour 0.022 lux at f1.2 (1/30 s), black and white 0.0022 lux at f1.2 (1/30 s, 30 IRE), 0 lux (IR LED on).

Integrated illumination

Infrared.

Camera functions

-

Focus

Fixed.

Iris

Fixed.

Shutter

Minimum/ Maximum/ Anti flicker (1/5–1/12000 s).

Automatic gain control

Low/ Middle/ High.

White balance control

ATW/ AWC/ Manual/ Indoor/ Outdoor.

Backlight compensation

BLC, WDR, SSDR.

Wide dynamic range

120 dB.

Day/ night mode switching

Automatic (ICR).

Privacy masks

32, four point quadrangle zones.

Display type

Camera title displayed up to 85 characters.

Lens

-

Focal length

3.0 mm.

Aperture range

F1.2.

Angle of view

H: 97°/ V: 53°/ D: 113°.

Pan-and-tilt function

-

Pan angle

0–350°.

Tilt angle

0–75°.

Image flip

Required.

Video motion detection

Eight, eight point polygonal zones.

Power supply

PoE.

Network connectivity

10/100BASE-T via RJ-45.

Network protocols

IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP (TCP, UDP Unicast), MQTT.

Video compression formats

H.265/H.264: Main/ high, MJPEG.

Video streaming

Unicast (20 users)/ Multicast.
Multiple streaming (Up to 5 profiles).

Integral memory storage (minimum)

2 GB RAM, 1 GB Flash.

Camera housing

-

Ingress protection (minimum)

To BS EN 60529, IP66.

Impact protection (minimum)

To BS EN 62262, IK10.

Mounting arrangement

Ceiling.

Corner wall.

Pole.

Wall.

Manufacturer guidance

See Accessories for mounts.

Accessories

Not required.

SBP-140HMW.

Guidance for specification option:

Hanging mount (dome).

SBV-140BW.

Guidance for specification option:

Backbox.

SBP-300CMW1/900CMW.

Guidance for specification option:

Ceiling mount.

SBP-150CMI/300CMI.

Guidance for specification option:

Ceiling mount.
