NEFF Home Appliances

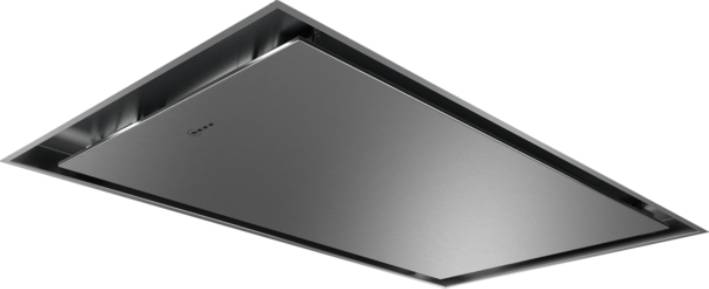

N 50, ceiling cooker hood, 90 cm, stainless steel.

Jump to:
BOS
0344 8929021 Website

Application

For domestic applications.

Description

N 50, ceiling cooker hood, 90 cm, stainless steel.


With hob hood control, remote control, LED lights and Home Connect. Optional long life regenerative recirculation module (stainless steel): Z52JCD0N0.


Features and benefits:

  • Cooktop-based hood control: adjust the hood's extraction level and lighting.
  • Dimmer function: dim the LED light with the button on the remote control.
  • Remote control: control the ceiling hood with a remote.
  • Efficient drive motor: quiet and energy-efficient hood motor.
  • Intensive speed setting: increases the extraction rate.

General information

Color

Silver

Material

Stainless steel

Shape

Rectangle

Length

500 mm

Width

900 mm

Height

300 mm

Warranty description

Two year

Uniclass

Pr_60_65_94_46 Kitchen extractor hoodsPrimary

CAWS

N11/360 Appliances

N11/40 Appliances

Specification data - Kitchen extractor hoods

Operation

Extraction.

Recirculation.

Guidance for specification option:

For recirculated extraction CleanAir recirculating kit (accessory) needed.

Installation

Ceiling-mounted.

Material and finish

Stainless steel.

Dimensions

-

Width (maximum)

900 mm.

Depth (maximum)

500 mm.

Height

299 mm.

Capacity (minimum)

459 m³/h.

Controls

Electronic control, three-speed plus two intensive, hob hood control, infrared remote control.

Features

LED display, four 3 W LED lights, two metal grease filter cassettes.

Rating

174 W.

Electrical supply

220–240 V, 50/60 Hz.

Noise level at 1 m (maximum)

56 dB(A).

Accessories

Not required.

Z50XXP0X0 Long Life odor filter (replacement).

Z52JCC1N6 Clean Air Plus recirculation kit external inox.

Z52JCC1W6 Clean Air Plus recirculation kit external white.

Z52JCD0N0 Long Life recirculation kit external inox.

Z52JCD0W0 Long Life recirculation kit external white.

Z53XXB1X6 Clean Air Plus odor filter (replacement).

Energy rating

A.

Sustainability data

Material

Stainless steel

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Literature

N 50, Ceiling cooker hood, 90 cm, Stainless steel
I95CAQ6N0B

N 50, Ceiling cooker hood, 90 cm, Stainless steel I95CAQ6N0B
