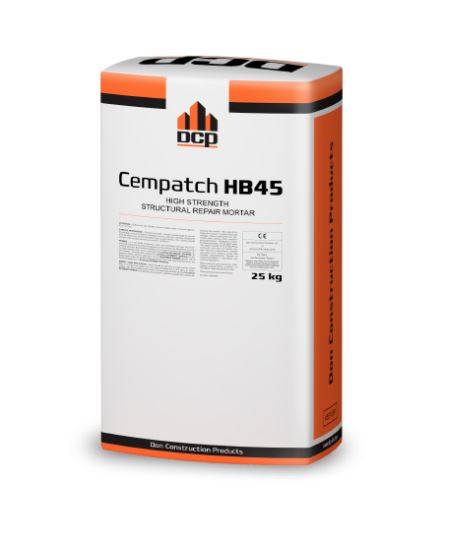

Cempatch HB45 - Reinstatement Mortar
Verified by manufacturer 12 hours ago
High strength R4, fibre-reinforced concrete reinstatement mortar.
Application
Suitable for the repair of all types of structural concrete where high strength and extremely low shrinkage properties are required, including:
- Vertical and overhead elements.
- Structural elements in buildings.
- Water retaining structures.
- Industrial plants.
- Bridges.
Deep pockets can be filled in a one application depending on the shape of the pocket and the volume of exposed reinforcement.
Description
High-build, hand/ wet-spray applied, one component polymer-modified and fibre-reinforced structural repair mortar.
Cempatch HB45 is a thixotropic mortar made up of dry powders, selected aggregates, polymers and fibres, which when mixed with water, allows it to be used vertically and overhead.
Features and benefits:
- Provides extremely low permeability to water, carbon dioxide and chlorides.
- Shrinkage compensated, providing long-term dimensional stability.
- Easy to apply. Single component, requires only the addition of water.
- High bond strength, ensuring monolithic performance of the repair.
- Can be spray applied efficiently by the wet spray technique.
- Thixotropic properties allowing extra high build for vertical and overhead applications.
- Contains no chlorides.
- Suitable for internal and external application.
- Water vapour permeable.
- Suitable for use in contact with potable water.
- Easy to finish.
- Cost effective, hand or wet spray applied, and no formwork is required.
- Suitable for use with cathodic protection systems.
- Extremely low permeability, which retards chemical attacks in aggressive environments.
- Non-flammable.
- Complies with BS EN 1504-3, Class R4.
Consult manufacturer's datasheet for detailed preparation, priming and mixing instructions.
General information
Color | Grey |
Finish | Smooth |
Material | Cement Polymer-modified cement Fibre-reinforced |
Shape | Formless |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
Uniclass | |
CAWS | C42/315 Protective coating to reinforcement C42/310 Repair mortar |
Specification data - Concrete repair mortars
Standard | To BS EN 1504-3.Guidance for specification option: Complies with Highways England, Standards for Highways, Specifications for Highways Works, clauses 5703, 5704, 5716 (Repair Mortar). |
Mortar type | Cement-based polymer-modified fibre-reinforced. |
Performance requirement class | R4.Guidance for specification option: For repair principles 3.1, 3.3, 4.4, 7.1, and 7.2. |
Density | 2.15 g/cm³. Guidance for specification option: +/- 0.10. Manufacturer guidanceFresh wet density. |
Working time | 20–30 minutes. |
CompressiveStrength | To BS EN 12190, ≥50 N/mm² (after 28 days). |
Flexural strength | To BS 6319-3, ≥9 N/mm². |
TensileStrength | To BS 6319-3, ≥3 N/mm². |
Adhesion bond strength | To BS EN 1542, ≥2.25 N/mm². |
Capillary absorption | To BS EN 13057, ≤0.2 kg/m²/h^0.5. |
Application thickness | 80 mm (maximum). Guidance for specification option: Can be applied in a single application of up to 80 mm thickness in vertical applications and up to 60 mm thickness in overhead applications. When larger thicknesses are necessary, sections can be built up in stages or with the use of formwork. |
Mix | 25 kg powder: 3.5 L water. |
Application temperature | 5°C (minimum). |
Chloride Ion content | To BS EN 1015, ≤0.04%. |
Freeze/ Thaw Resistance | To BS EN 13687, ≥2 N/mm². |
Reaction to fire | To EN 1504-3, Class A1. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Cement Polymer-modified cement Fibre-reinforced |
Manufacturing plant location | |
Expected Life | 100 year |
