Ceramic Tiled Access Panel (EX08) - Beaded Frame - 1 Hour Fire Rated - Tiled Access Panel
Verified by manufacturer 2 months ago
Metal Access Panel Tray with moisture board infill for tiling, 1 Hour Fire Rated, Beaded Frame, 3 Point Locking System.
Application
- Suitable for use in jointless plasterboard wall systems.
- Suitable for tiling.
Description

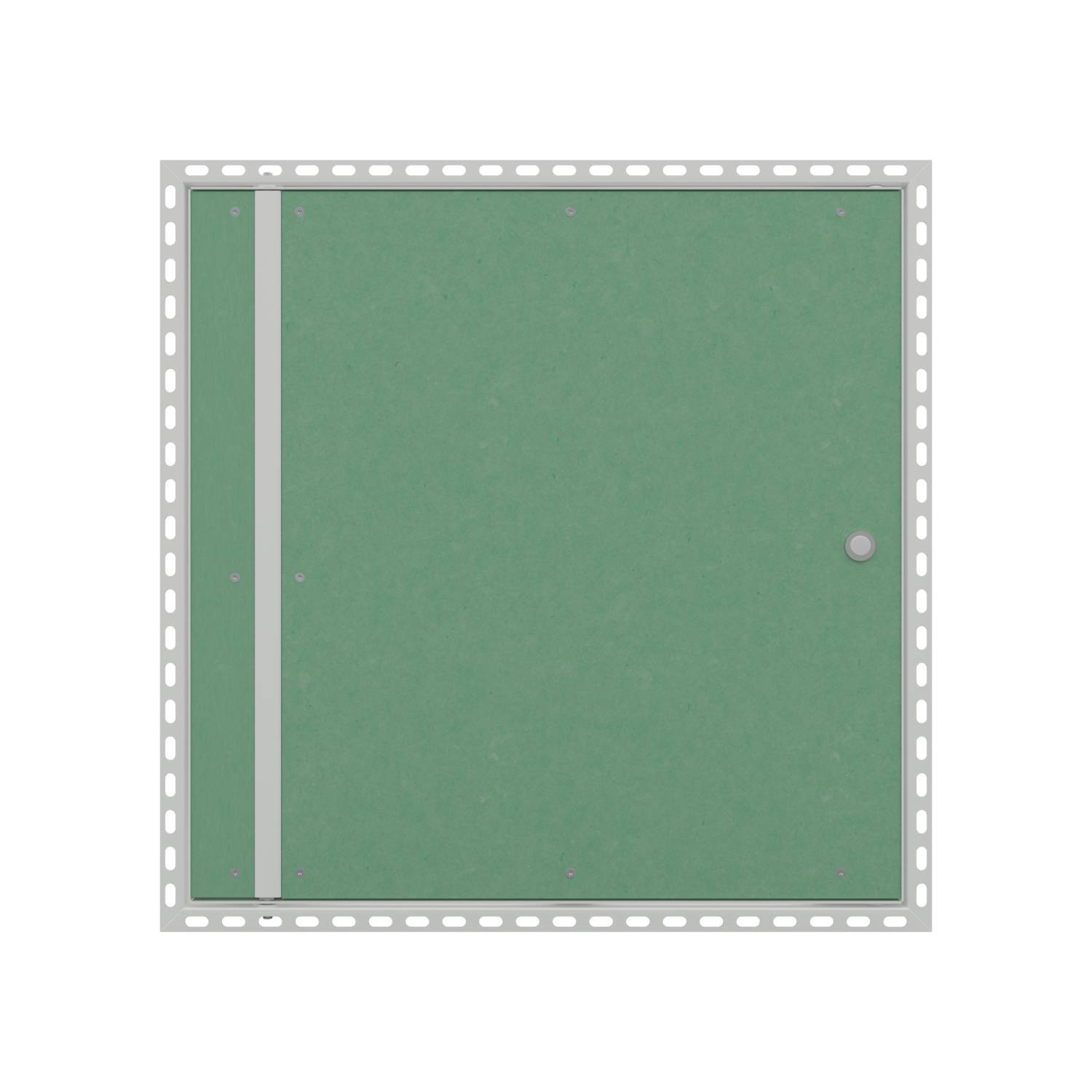

This panel is designed to fit into a structural membrane of a jointless plasterboard wall system. It is manufactured with a perforated frame for tiles to adhere to. The panel has a moisture board faced door for applying ceramic tiles. The door leaf is locked in place via mini touch catches as standard. Other lock options are available upon request. The panel is powder-coated RAL 9010 30% gloss. Other colours available upon request.
Features and benefits:

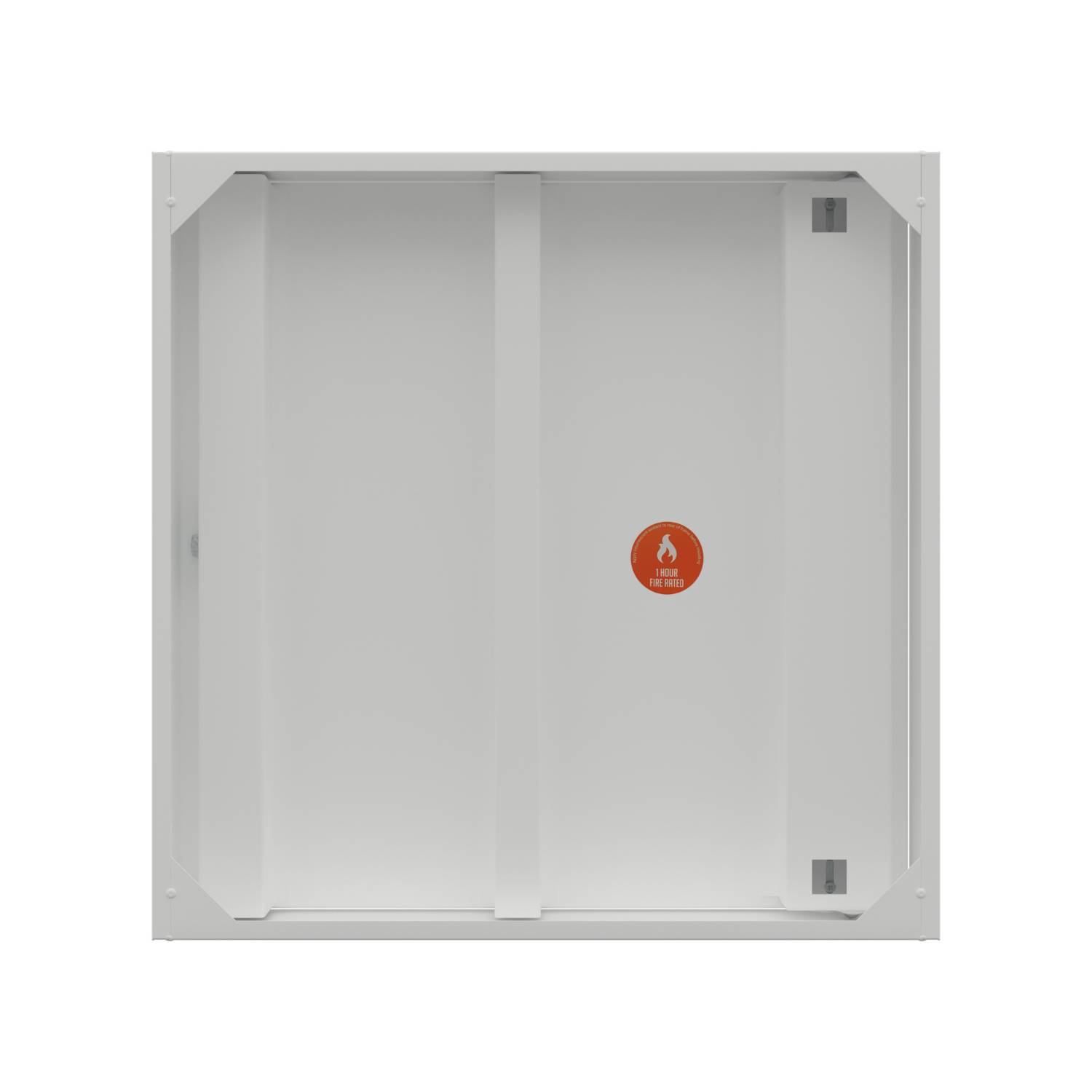

- One hour fire rated for integrity up to 1800 x 600 mm in a wall application.
- Manufactured from Zintec steel with a 1.5 mm thick door and a 1.5 mm frame.
- The door leaf is hinged by a fixed pivot hinge system.
General information
Color | White |
Finish | Powder-coated |
Material | Steel Plasterboard |
Shape | Square Rectangle |
Length | Manufacturer guidanceThis product is manufactured in the UK and can be made to any bespoke size between 150 x 150 mm (minimum) and 1800 x 600mm (maximum). The average lead time is 3–5 working days. Insert requirements. |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
Uniclass | |
CAWS | K10/430 Access panels |
Specification data - Access panels
Fire performance | |
Fire resistance | 60 minutes to BS 476-22:1987.Guidance for specification option: Up to 1800 x 600 mm. |
Position | Wall-mounted. |
Size | Manufacturer guidanceThis product is manufactured in the UK and can be made to any bespoke size between 150 x 150 mm (minimum) and 1800 x 600mm (maximum). The average lead time is 3–5 working days. Insert requirements. |
Frame | Perforated for tiling. |
Panel | |
Material | Steel with moisture board infill. |
Integral finish | Powder-coated. |
Latch or lock type | Three-point locking system.Low Level Security 3 Way Lock.Medium Level Security IP65 - Key Retaining Tamper proof Lock.High Level Security 3 Way Euro Profile Cylinder Lock.Other.Guidance for specification option: Other lock options are available on request. Consult manufacturer and insert requirements. |
Operation | Concealed hinges, outward opening. |
Colour/ Finish | RAL 9010, 30% gloss. Other. Guidance for specification option: Other colours are available on request. Consult manufacturer and insert requirements. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
Fitting Instructions - EX08 Tile Door Range
Datasheet - Tiled Access Panel (Range 8) - Beaded Frame - 1 Hour Fire Rated
