CFS-TTS E Firestop Top Track Seal
Verified by manufacturer 19 days ago
European Technical Approval (ETA)
Certificate type
UK Technical Assessment (UKTA)
Certificate type
Firestop Smoke and Sound Top Track Seal
Application
- Approved for head-of-wall joints to provide excellent acoustic performance and reliability.
- CFS-TTS is designed for a perfect friction fit with all common track sizes
- CFS-TTS ES is designed for a flexible solution for partition walls and various track applications
- Nominal joint width of max. 25mm, compression only.
- Range of approved applications publicly present in 3rd party documents: ETA-21/0754 and ETA-20/1236 as well as UKTA 22/0051.
Description

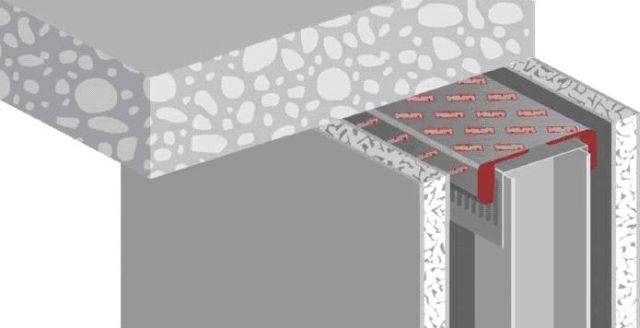

Fast, simple, and clean firestop preformed solution for top-of-wall drywall joints and deflection heads.
Features and benefits:
- Fast installation – fewer working steps (one and done).
- Sealing properties designed for real jobsite conditions – forms a more reliable sound and smoke barrier even on imperfect concrete.
- Friction fit with all common track sizes.
- Makes inspection easier.
- Increased worker safety – minimises the need to work at height.
- Versatile solution for any drywall track size.
General information
Color | Red Silver |
Material | Polyurethane |
Length | 3060 mm |
Width | 50 mm Guidance for specification option: CFS-TTS E5. 62 mm Guidance for specification option: C E6FS-TTS. 74 mm Guidance for specification option: CFS-TTS E7. 95 mm Guidance for specification option: CFS-TTS E9 and CFS-TTS ES. |
Uniclass | |
CAWS | P12/160 Linear gap sealing |
Specification data - Intumescent protective castings
Material | Polyurethane foam. |
Fire performance | To EN 1366-4. |
Period of resistance (minimum) | 120 minutes. |
Colour | Red and silver. |
Application temperature | -5 to 50°C. |
Temperature resistance | -10 to 50°C. |
VOC emissions | 22 g/L. |
Bacteria resistance (to EN846) | Class 0. |
Third party certifications
European Technical Approval (ETA)
ETA-20/1236 CFS-TTS E Firestop Top Track Seal
UK Technical Assessment (UKTA)
UKTA22 0051 CFS-TTS E Firestop Top Track Seal
