Charisma Rose Sash Window - PVC-U Sash Window
Verified by manufacturer 3 months ago
U-value 1.5 W/m²K (standard)
U-value 1.5 W/m²K (standard)

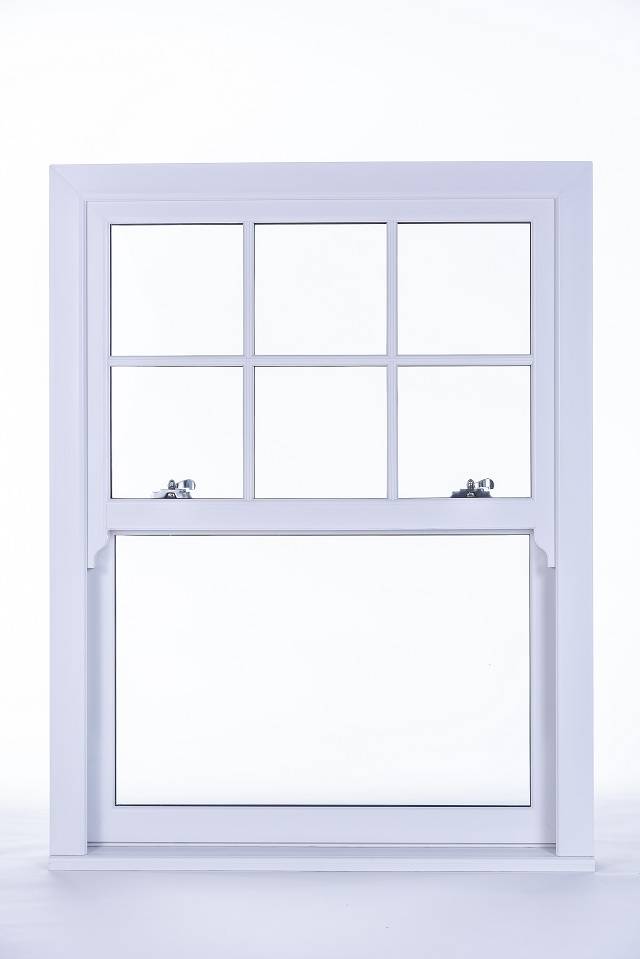

PVC-U sash window.
Application
Suitable for all applications, from traditional to new-build.
Description
Unplasticized polyvinyl chloride (PVC-U) sash window which merges traditional ovolo detailing with the performance benefits of modern materials and manufacturing techniques, resulting in an all-round performer that’s suitable for any type of property.

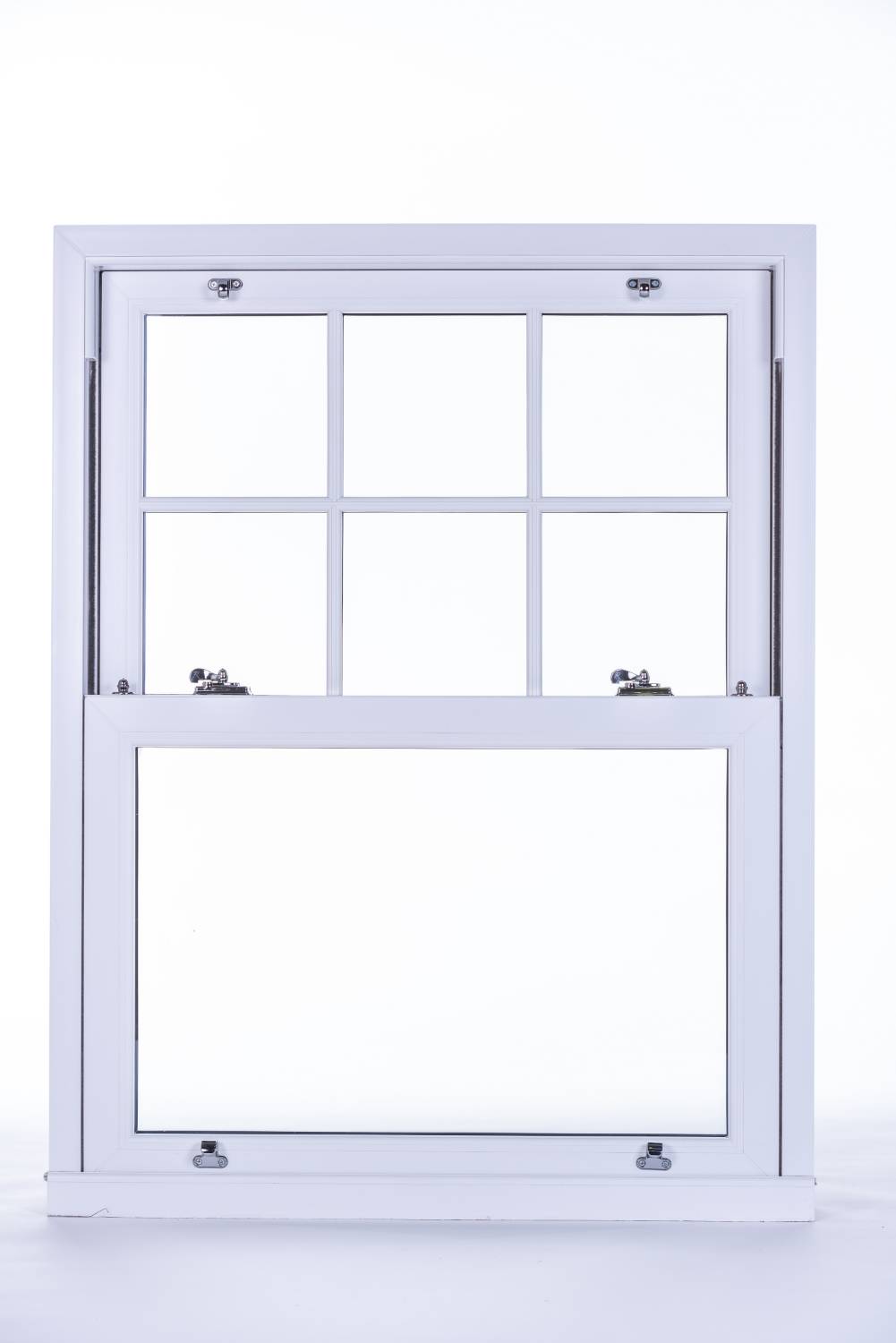

It is supplied with a range of premium features, including inward tilting sashes as standard, allowing the user to clean the outsides from the inside. There’s also a discreet aluminium anti-jemmy bar to enhance security, triple brush seals for excellent weather performance, clip-on or run-through horns and a wide range of Eurocell trims and add-ons, making it versatile and simple to fit.
Features and benefits:
- Profile detail: Ovolo sculptured.
- Corner detail: Welded.
- Meeting stile: 60 mm.
- Decorative horns.
- Smooth or woodgrain finish
- Welded joints.
- Traditional furniture.
- Torsion balances.
- ‘A’ rated thermal efficiency.
- Flush cill.
- Anti-jemmy bar.
- Optional features:
- Run-through horns.
- No horns.
- Deep bottom rail.
- Painted finish (any RAL colour on woodgrain).
- Projecting sub-cills (180 integrated and 210 mm extender).
- Secured by Design.
U-value options:
- 1.5 W/m²K as standard.
- 1.4 W/m²K with upgraded glass (Planitherm One).
General information
Color | White Cream Green Grey Black Manufacturer guidanceWhite, cream, Irish oak, Golden oak, Rosewood. Chartwell green, Anthracite. Painted finish (any RAL colour on smooth or woodgrain). |
Finish | Smooth Woodgrain |
Material | Glass PVC-U |
Shape | Rectangle Manufacturer guidanceSash window with ovolo detailing |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
Uniclass | |
CAWS | L10/30 PVC-U windows L10/350 PVC-U windows |
Product range |
Specification data - Unplasticized polyvinyl chloride (PVC-U) window units
Standard | CE marked BS EN 14351-1:2006+A1:2010. |
Third-party certification | BlueSky Acoustic.Guidance for specification option: To Secured by Design standard. |
Dimensions and configurations | Guidance for specification option: Size (w x h): 320-1500 x 700-3000 mm. Midrail: 60mm, Frame depth: 125 mm, Bottom rail: 68 mm, Deep bottom rail: 100 mm, Cill depth: 150 mm, Projecting cill depth: 210 mm. |
Product performance | |
Fire performance | |
Fire egress | Option. |
Weather performance | |
UK exposure category | 1600 Pa. |
Air permeability | Class 3. |
Watertightness | Class 8A. |
Resistance to wind load | Class A4. |
Safety | |
Security level | To PAS 24:2016.To Secured by Design standard and PAS 24:2016. |
Environmental | |
Background ventilation | Guidance for specification option: Cross-reference requirements in Building Regulations according to jurisdiction as appropriate. Typically, habitable rooms require 8000 mm² equivalent area, with 4000 mm² required for kitchens, bathrooms, utility and sanitary rooms. Insert, e.g. 8000 mm² equivalent area. See also BS EN 13141-1, which contains methodology for determining the equivalent area for background ventilators. Add requirements for purge ventilation. BS 5925 can assist in determining opening sizes. Details should be scheduled or shown on drawings. Manufacturer guidanceSee also Ventilator below for trickle vent options. |
Thermal | |
Whole window U-value | 1.5 W/m²K. |
British Fenestration Rating Council Window Energy Rating | A. |
Frame | |
Profile | Ovalo sculptured Eurocell. |
Reinforcement | Steel/ aluminium (sash only). |
Colour and texture | Cream woodgrain on smooth white.Anthracite woodgrain on smooth white.Chartwell woodgrain on smooth white.Jet black woodgrain on smooth white.Cream woodgrain.Guidance for specification option: Both sides. |
Ventilator | Not required.Concealed overhead trickle vent.Through sash trickle vent. |
Glazing or infill | |
Requirements | 24 mm integrated glazing unit (IGU).Guidance for specification option: Standard glazing. |
Hardware | Zinc Hardex coated. |
Operation | |
Type | Manual. |
Fixing features | Direct fix.Fixing brackets. |
Deep bottom rail | Not required. Required. Guidance for specification option: Optional extra. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Glass PVC-U |
Literature

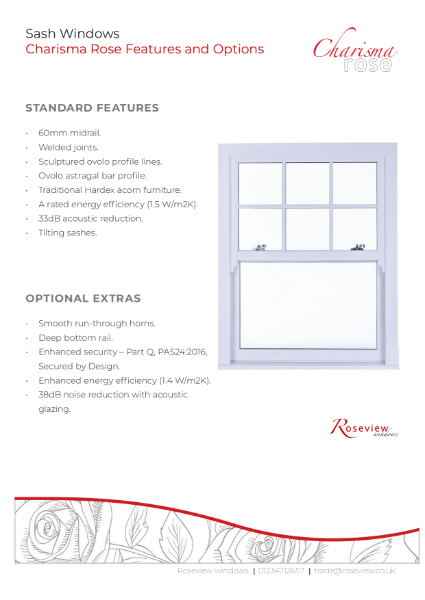

Charisma Rose - Product sheet
Charisma Rose - Technical drawing

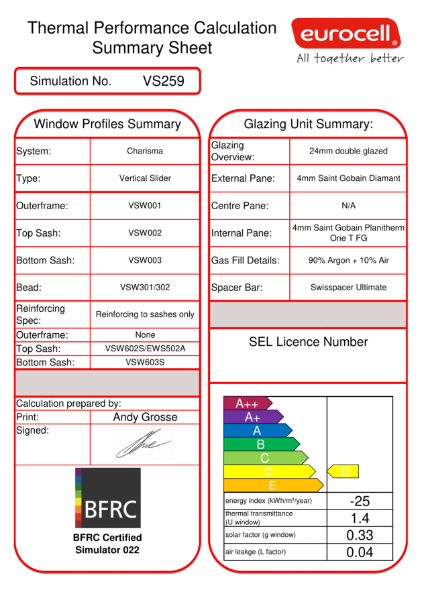

Charisma Rose 1.4 U-Value Energy Report

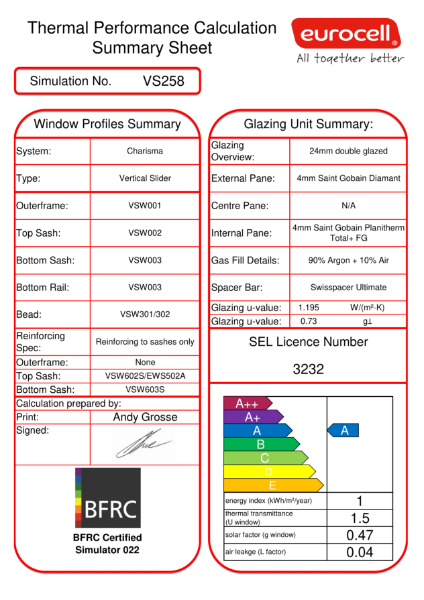

Charisma Rose 1.5 U-Value Energy Report
Case studies
Charisma Rose - Lincolnshire Arches
Charisma Rose - Surrey Style
Charisma Rose - Georgian New Build
