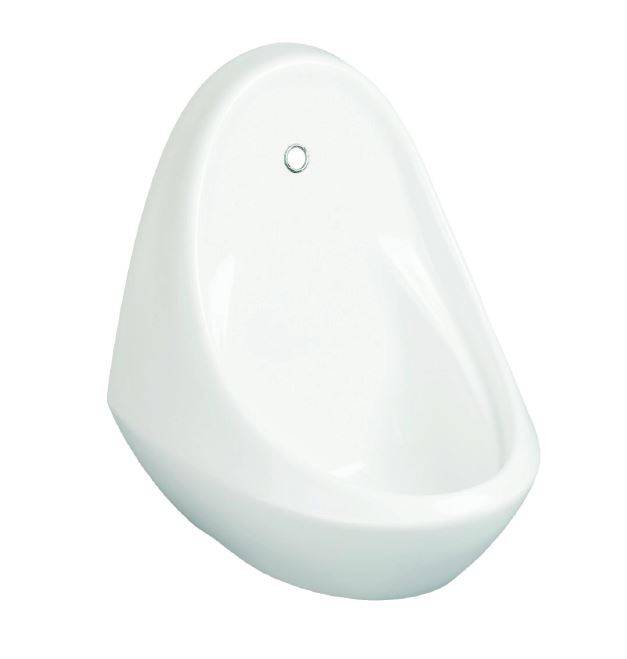

Chartham Exposed Trap Urinal
Verified by manufacturer 5 months ago
Exposed trap urinal with complete clean bowl design.
Application
Suitable for all sectors.
Description
SanCeram Chartham exposed trap urinal with complete clean bowl design.
Features and benefits:
- Easy clean design.
- Exposed bottle trap design.
- Entry level range.
- Can be mounted at lower height.
General information
Color | White Guidance for specification option: Alpine white. |
Finish | Smooth Guidance for specification option: Alpine white. |
Material | Vitreous china Guidance for specification option: To BS 3402. |
Length | 330 mm Manufacturer guidanceDepth |
Width | 355 mm |
Height | 445 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | N13/315 Urinals and auto-flushing cisterns N13/15 Urinals and cisterns |
Specification data - Wall-hung urinals
Urinal type | IV. |
Flushing device | B. |
Form | Bowl. |
Materials | |
Body | Vitreous china to BS 3402. |
Finish and colour | Alpine white. |
Water supply, overflow and waste holes | |
Water supply | Top supply hole. |
Overflow | None. |
Waste | URIN116: Bottom outlet, 1 ½” domed urinal waste.C10R: Bottom outlet, 1 ½” resealing bottle trap. |
Urinal Spreader | CHUR105: Top inlet. Guidance for specification option: Chartham top inlet spreader (for exposed cistern). MDUR102: Back inlet. Guidance for specification option: Back inlet spreader (for concealed cisterns). |
CisternCapacity | URIN104: 4.5 L 'Dudley D'. Guidance for specification option: Exposed auto cistern and fittings. URIN105: 9 L 'Dudley D'. Guidance for specification option: Exposed auto cistern and fittings. URIN106: 4.5 L 'Tri-shell'. Guidance for specification option: Exposed auto cistern and fittings. URIN107: 9 L 'Tri-shell'. Guidance for specification option: Exposed auto cistern and fittings. |
Urinal Flushpipes | URIN113: One bowl. Guidance for specification option: Flush pipes for one bowl setup. URIN114: Two bowl. Guidance for specification option: Flush pipes for two bowl setup. |
Flushing arrangement | URIN101: 4.5 L. Guidance for specification option: Concealed urinal auto cistern 4.5 L (1–2 urinal bowls). URIN102: 9 L. Guidance for specification option: Concealed urinal auto cistern, 9 L (3 urinal bowls). URIN103: 13 L. Guidance for specification option: Concealed urinal auto cistern 13 L (4–5 urinal bowls). |
Fixings | CHUR106: Hanging bracket. |
Weight | 10 kg. |
