CLAD-LINE CL1 Framing System
Verified by manufacturer over a year ago
Rainscreen framing system. For panel systems using face fixings or discrete mechanical fixings.
Application
For panel systems using face fixings or discrete mechanical fixings.
Description
CL1 is CLAD-LINE’s vertical subframe system suited for a wide range of face fixed and discrete fixed cladding applications including metal rainscreen panels, Rockpanel, fibre cement, high pressure laminate (HPL) and ACM.

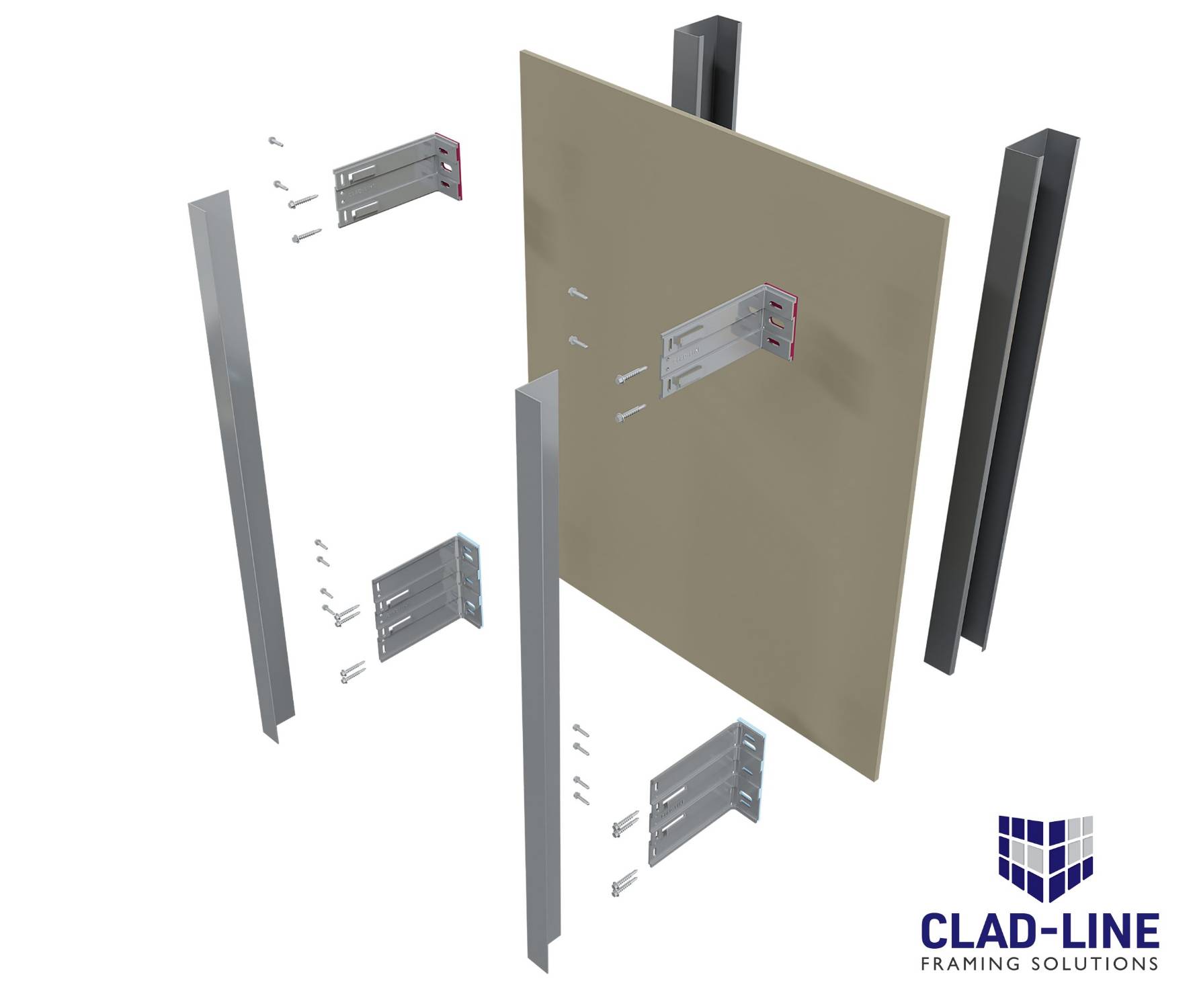

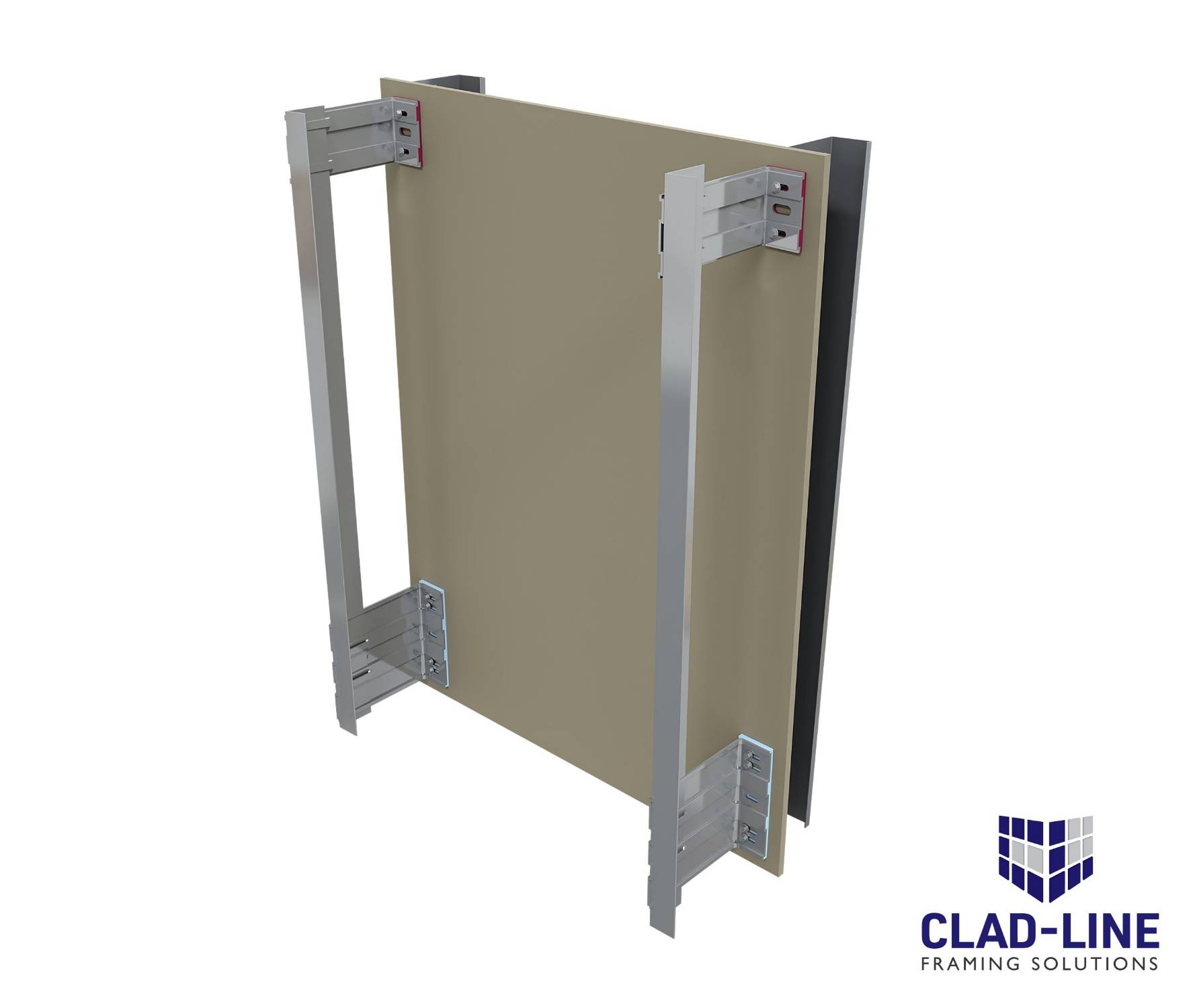

CLAD-LINE’s T and L profiled rails are fixed using the CL range of support brackets. Fixed Point (dead load) brackets are designed to absorb vertical dead loads while the Sliding Point brackets allow for expansion and contraction and designed to absorb wind loads. CLAD-LINE’s range of support brackets comes pre-fitted with a thermal isolation pad. This reduces installation time on site as well as improving the thermal performance of the bracket.
Features and benefits:
- Lightweight
- Durable
- Suitable for use with metal rainscreen, Rockpanel, fibre cement, HPL and ACM
- Non-combustible
- Suitable for new build and refurbishment
- Vertical cladding rails
- Horizontal adaptor available
- Quick and easy to install
- Can be fixed back to both stud and masonry
- 100% recyclable aluminium
- Pre-fitted thermal isolator pad to brackets
- A2 thermal pads available on request
- Powder coated or anodized finishes available on request
- Tested to CWCT standards.
General information
Color | Silver |
Finish | Anodized Mill Powder-coated |
Material | Aluminium |
Shape | Rectangle |
Length | 3000 mm 6000 mm |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | H92/120 Rainscreen cladding |
Specification data - Aluminium carrier rails
Brackets | Single Bracket 40 mm – CLSB40 45-75 mm. Single Bracket 60 mm – CLSB60 65-95 mm. Single Bracket 90 mm – CLSB90 95-125 mm. Single Bracket 120 mm – CLSB120 125-155 mm. Single Bracket 150 mm – CLSB150 155-185 mm. |
Rails | L Rail 60 x 40 3000 mm CL1-60x40L/3000. L Rail 60 x 40 6000 mm CL1-60x40L/6000. T Rail 100 x 60 3000 mm CL1-100x60T/3000. T Rail 100 x 60 6000 mm CL1-100x60T/6000. T Rail 100 x 40 3000 mm CL1-100x40T/3000. |
Fixings | Manufacturer guidanceInsert requirements. A range of fixings are available. All fixings can be colour matched. |
Accessories | Double A2 Isolator Pad [CL-DOUBLEPAD/A2]. Double Isolator Pad [CL-DOUBLEPAD]. Horizontal Adaptor 86mm [CL1-HA/86]. Single A2 Isolator Pad [CL-SINGLEPAD/A2]. Single Isolator Pad [CL-SINGLEPAD]. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | Fully recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 65 % |
