Clear Secure Screen - Modular Glazing
Verified by manufacturer 12 days ago
BRE Certificate
Certificate type

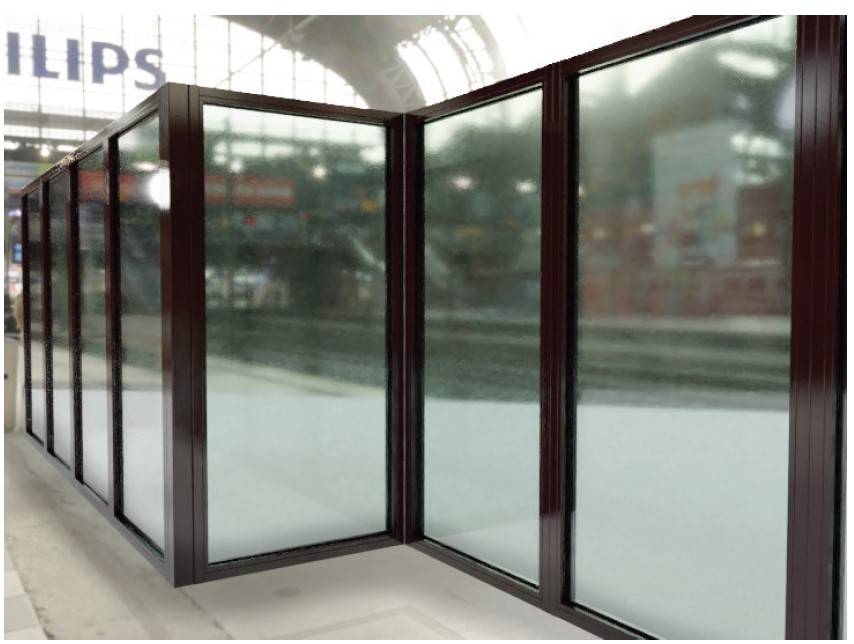

Developed by Stafford Bridge, Clear Secure is a lightweight, adaptable modular glazing system that gives your facility the protection needed to resist a determined opportunistic attack.
Application
Modular glazed secure screen suitable for use in facilities that need protection to resist a determined opportunistic attack.
Description
Developed by Stafford Bridge, Clear Secure is a lightweight, adaptable modular glazing system that gives your facility the protection needed to resist a determined opportunistic attack.
Clear Secure offers an ideal solution where vision and illuminating light are important, yet the physical security of individuals or assets is also required. Independently tested and certified to LPS 1175 Issue 8 B3 (SR2) Clear Secure is proven to withstand determined attacks using tools such as hammers and cutters for up to 3 minutes.
Features and benefits:
- Tested and certified to LPS 1175 Issue 8 B3 (SR2).
- Form barriers or guided walkthroughs.
- Flexible: Option of self-supporting or anchored to an existing wall.
- Adaptable: Pass around obstacles using 90° turns.
- Light weight box section construction.
- Available in brushed stainless steel or painted finish to agreed BS or RAL colour.
- Panels can be fixed together to form a standalone system or attached to an existing structure.
- Allows natural sunlight into the building.
- Offers a discrete secondary layer of security.
- Flexible and modular design suits most applications.
General information
Color | Clear Beige Black Blue Bronze |
Finish | Powder-coated Brushed Satin |
Material | Steel Stainless steel Glass |
Shape | Rectangle Square |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | One year |
Uniclass | |
CAWS | K30/130 Relocatable partition system K30/10 Relocatable partition system |
Specification data - Partition panels
Unit size | |
Thickness | Manufacturer guidanceProfile Depth: Minimum - 80 mm, maximum - 200 mm. Profile Thickness: Minimum - 40 mm, maximum - 100 mm. |
Partition height (nominal) | Manufacturer guidanceSizes are measure for the overall frame dimension, an additional 10 mm will need to be added to the sizes listed below for the structural opening sizes:
Panels can be fixed together, either side by side or on top of each other. Panels fixed together using stainless steel (A2) M10 minimum bolts and stainless steel (A2) M10 minimum nuts and Loctite. |
Width (nominal) | Manufacturer guidanceSizes are measure for the overall frame dimension, an additional 10 mm will need to be added to the sizes listed below for the structural opening sizes:
Panels can be fixed together, either side by side or on top of each other. Panels fixed together using stainless steel (A2) M10 minimum bolts and stainless steel (A2) M10 minimum nuts and Loctite. |
Panel partition type | Glazed. |
Framing, fixing points and joints | Carbon steel.Stainless steel. |
Glazed panels | |
Type | Polycarbonate double pane construction, 36 mm thick – Tested to LPS 1175 Issue 8 A5.DCT 24 monolithic glazing unit, 24 mm thick - Tested to LPS 1175 Issue 8 B3.DCT 24 monolithic glazing unit, 26 mm thick - Tested to LPS 1175 Issue 8 B5. |
Other features | Anchored to an existing wall.Packers.Self-supporting. |
Finish: | Powder-coated. Guidance for specification option: Powder coated to any BS or RAL colour available. Insert requirements. Brushed. Guidance for specification option: Brushed for stainless steel option. Satin. Guidance for specification option: Satin finish for stainless steel option. Manufacturer guidanceSteel frame |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom Guidance for specification option: Glass |
Country of product manufacture | United Kingdom |
Recyclability | 95% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications
BRE Certificate
Clearsecure Modular Glazing LPS 1175 Certificate
Literature
Clear Secure Screen
