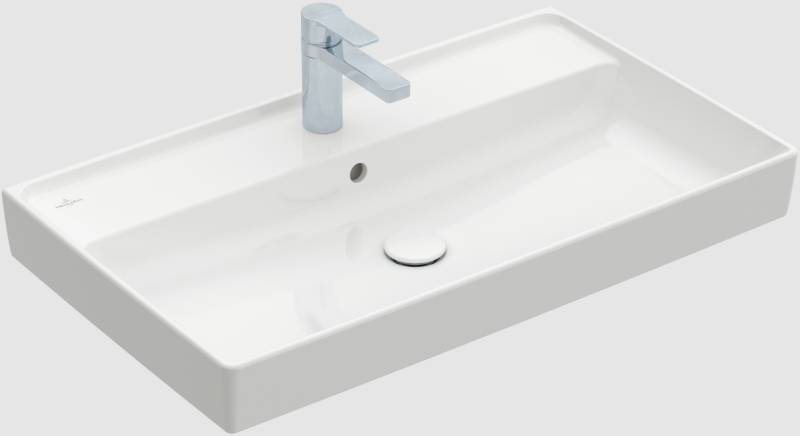

Collaro Vanity Washbasin 4A338G
Verified by manufacturer 8 months ago
4A338G01
4A338G01
Rectangular vanity washbasin.
Application
Surface mounted.
Description
Rectangular vanity washbasin.
Features and benefits:
- Registered design.
- Ground underside.
- TitanCeram.
- Complies with EN 31 and EN 14688.
- Optionally available: Outlet valve with ceramic cover.
General information
Color | White |
Finish | Gloss Matt |
Material | Ceramic |
Shape | Rectangle |
Length | 800 mm |
Width | 470 mm |
Uniclass | |
CAWS | N13/341 Vanity tops with formed washbasins N13/335 Washbasins N13/30 Washbasins |
Specification data - Integral washbasins and vanity tops
Form | Single bowl. |
Materials | |
Basins | |
Body | Sanitary ceramic. |
Finish and colour | White Alpin, gloss. |
Size | |
Basins | 800 x 470 mm. |
Water supply, overflow and waste holes | |
Water supply | One tap hole, centre.Guidance for specification option: Suitable for 3-hole tap fittings, central tap hole punched out. |
Overflow | Overflow hole.Guidance for specification option: With overflow. |
Waste | Pop up, one per basin. |
Integral accessories | Not required.Closable valve 6810 00.Easy Access siphon 9219 88.Cap (overflow cover) 7901 00.Push-to-open valve 8L03 34. |
Weight | 21 kg. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 OBJ | - | 1 |
 3Ds Max | - | 1 |
 Revit | - | 1 |
 ARCHICAD | - | 1 |
 SketchUp | - | 1 |
