Colonnade Aluminium Cast Collar Circular Downpipe

Name: Colonnade Aluminium Cast Collar Circular Downpipe
Brand: Aluminium Roofline Products Ltd
SKU: oJp13tpJsQbBJMK34D8GRC

Verified by manufacturer 19 days ago

Aluminium Roofline Products Ltd

A range of downpipes manufactured from aluminium.

Jump to:

+44 (0)116 289 4400 Website

Application

Suitable for any property, from modern to traditional and equally suited for refurbishment of heritage or listed properties.

Description

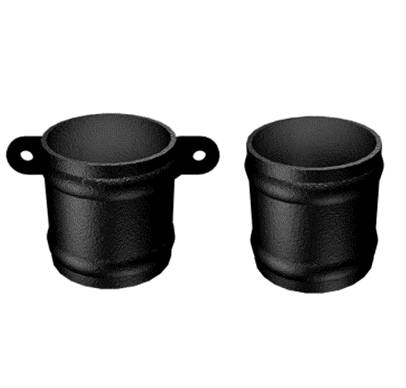

Colonnade circular cast collared rainwater pipes are available in various dimensions and are supplied with a complete range of fittings such as bends, branches, offsets and brackets.

Features and benefits:

Made from aluminium extrusion 6060 T4 to BS 1474:1972.
100% recyclable.
Lightweight and low maintenance.
Special fittings can be provided.
Supplied mill finished (uncoated) or polyester powder-coated in RAL or BS standard colours.

General information

Color	Black Other
Finish	Mill Powder-coated
Material	Aluminium
Shape	Circle
Length	3000 mm 2500 mm 2000 mm 1500 mm 1000 mm 500 mm Show more
Width	63 mm 76 mm 101 mm 150 mm

Uniclass	Pr_65_52_03_04 Aluminium rainwater pipes and fittingsPrimary
CAWS	R10/370 Aluminium pipework R10/30 Aluminium pipework

Specification data - Aluminium rainwater pipes and fittings

Form	Extruded.
Section	Round with ears. Round without ears.
Size (nominal)	63 mm. 76 mm. 101 mm. 150 mm.
Finish and colour	-
Finish	Mill finish. Powder coating.
Colour	- Manufacturer guidance Polyester powder-coating is available in RAL or BS standard colours. Consult manufacturer and insert requirements.
Integral accessories	92.5° Bend. 112° Bend. 135° Bend. 92.5° Branch. 112° Branch. 135° Branch. Water Butt Rainwater Diverter. Shoe with Ears. Small 1 Part Swan Neck. Large 1 Part Swan Neck. Adjustable 2 Part Swan Neck. Plinth OffSet. Access Pipe. Loose Collar with Ears. Loose Collar without Ears. Flush-fit Pipe Clip. 30mm Stand-off Pipe Clip. Adjustable Stand-off Pipe Clip.

Sustainability data

Contains Red List materials	No
Country of product manufacture	United Kingdom
Material	Aluminium
Manufacturing plant location	Meridian Business Park, 2 Vitruvius Way, Meridian Business Park, Leicester LE19 1WA, UK
Recyclability	100% recyclable
Expected Life	30 year

Literature

Colonnade Circular Cast Collar Pipe Data Sheet

Case studies

Round House Radius Gutters - Bespoke Aluminium Rainwater Goods

Easton Square Luxury Housing Development
