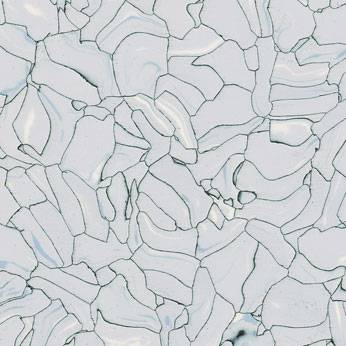

Colorex® EC - Conductive tile floor covering
Verified by manufacturer 1 month ago
Certificate of Conformity
Certificate type
Permanently electro-conductive tile floor covering.
Description
A high-performance, permanently conductive, homogeneous pressed tile floor covering.
Features and benefits:
- The low plasticizer content in Colorex ensures low emissions and outgassing.
- Colorex is available in tile format, a prerequisite for raised access floors found in many commercial environments such as data centres and server rooms.
- Permanently conductive flooring.
- The dense construction of Colorex provides a pore-free surface, ensuring the highest hygiene properties.
- The dense construction of Colorex provides excellent resistance to heavy loads, making it an ideal solution for commercial and industrial environments.
- Designed for full and unconditional ESD/EMI control and well as for contamination sensitive clean room applications.
Adhesive:
- Eurocol 641 Eurostar Special EL:
A superior conductive acrylic dispersion very low VOC-emitting (EC1) with a high initial grab.
- Eurocol 801 Copper-Strip:
A static conductive copper earth strip.
General information
Color | Blue Grey Green Yellow Purple |
Material | PVC |
Shape | Square Rectangle |
Length | 6150 mm |
Width | 6150 mm |
Height | 2 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | M50/110 Resilient floor tiling M50/10 Resilient floor tiling |
Product range |
Specification data - Polyvinyl chloride (PVC) tiles
Standard | EN ISO 10581 and ASTM 1700. |
Use class | Classes 34 and 43. |
Slip potential | |
Slip resistance value (SRV) (minimum)/ Pendulum test value (PTV) (minimum) | BS EN 13893: ≥0.30, DIN 51130: R9, PTV Dry: >50. |
Thickness | 2 mm.Guidance for specification option: Standard. 3 mm.Guidance for specification option: Special order. |
Colour and pattern | EC 250201 Everest.EC 250204 Montblanc.EC 250205 Adula.EC 250207 Quartz.EC 250263 Massif.EC 250262 Nebo.EC 250206 Moonstone.EC 250213 Sahara.EC 250264 Meru.EC 250219 Assuan.EC 250268 Pelion.EC 250234 Twilight.EC 250225 Kiwi.EC 250221 Pacific.EC 250222 Niagara.EC 250265 Blue ridge.EC 250266 Fuji.EC 250267 Montserrat.EC 250240 Etna.EC 250299 Glow. |
Weight | 3.2 kg/m². |
Reaction to fire (to BS EN 13501) | Bfl-s1, G, CS. |
Thermal conductivity (to BS EN 12524) | 0.25 W/(m·K). |
Impact sound reduction | 2 dB. |
Lightfastness (to ISO 105-B02) | ≥6. |
Dimensional stability (to BS EN ISO 23999) | ≤0.05%. |
Chemical resistance (to EN ISO 2698) | Excellent. |
Clean room particle emission | ISO 2. |
Electrostatic (to IEC 61340-5-1) | Compliant. |
Electrical resistance (to IEC 61340-4-1 and ESD STM7.1) | 5 x 10^4 ≤ R ≤ 10^6 Ω. |
Electrical resistance in combination with ESD control footwear (to IEC 61340-4-5, ESD STM97.1) | R <3.5 x 10^7 Ω. |
Body voltage generation, in combination with ESD control footwear (to IEC 61340-4-5) | Standard: <100 V. Typical value: ~ 20 V. |
Sustainability data
Contains Red List materials | Yes |
Country of material origin | Switzerland |
Country of product manufacture | Switzerland |
Material | PVC |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 5.97 kg CO₂ eq/m² Self declared |
Recyclability | 100% Manufacturer guidanceCan be recycled. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 26 % |
Third party certifications
Certificate of Conformity
SA8000 Management System Certification Certificate
Literature
Forbo Product Portfolio 2022
Forbo Colorex LRV and DSDC Accreditation Overview
Forbo Colorex Brochure
Forbo Adhesive Guide
