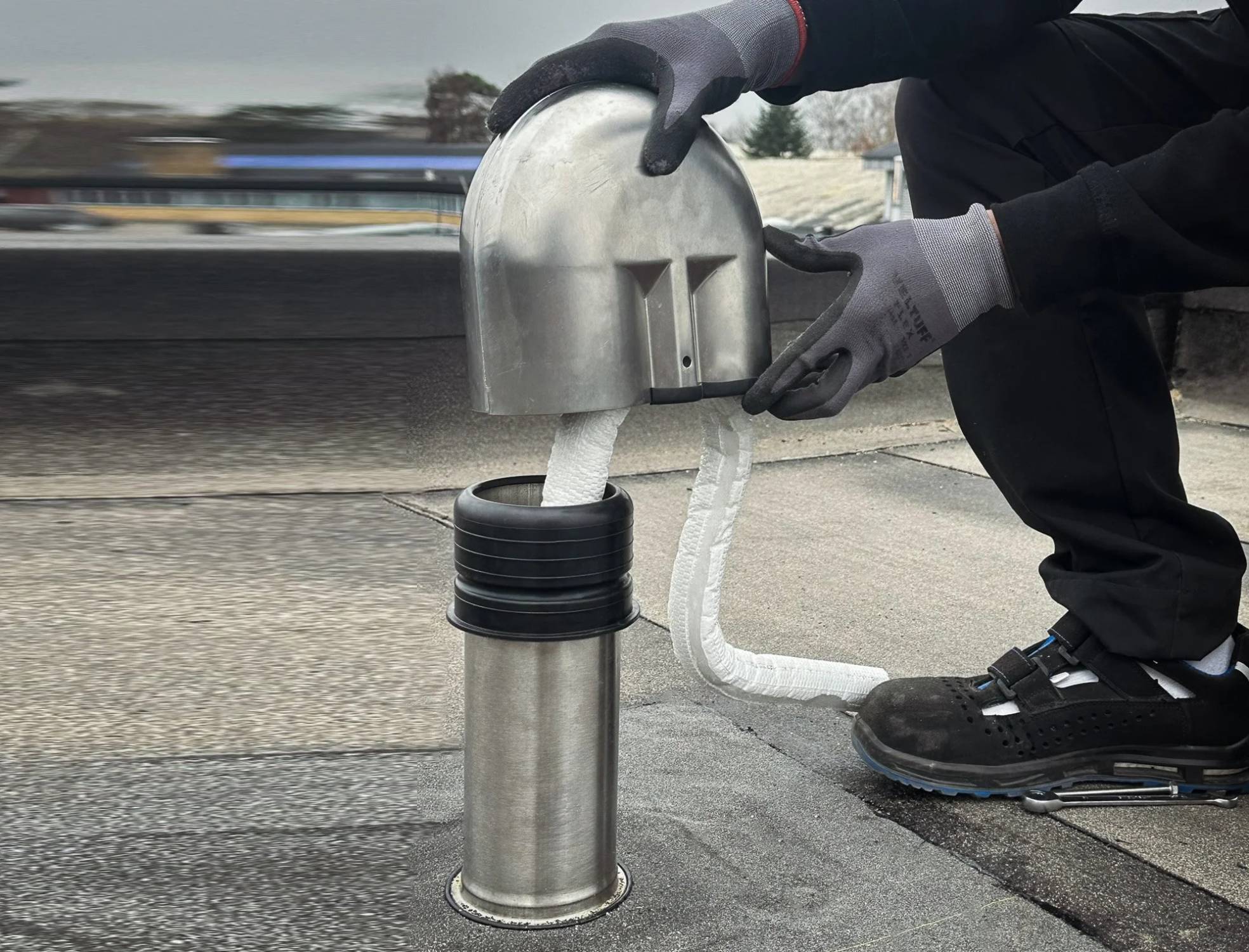

Commercial Cable Entry
Verified by manufacturer 2 days ago
Cable entry flashing and detachable top, available in EPDM, SBS and Fast Flash® Base.
Application
Flat roofing applications
Description
Cable Flashing Ø90 with Detachable Top for leading cables etc, through flat roofs with bitumen or foil membranes.
The cable flashing has a detachable top, which makes it possible to finish the process of installing and adjusting cables etc., and then mount the top on the pipe afterwards. Can be delivered with a pipe below the flange e.g., for lead through in the roof’s insulation layer.
General information
Color | Black Grey |
Finish | Matt |
Material | EPDM Styrene butadiene |
Shape | Square |
Length | 400 mm 500 mm |
Width | 400 mm 500 mm |
Uniclass | |
CAWS | P30/30 Pipeducts P30/320 Pipeducts |
Specification data - Pipe sleeves
Classification data | |
Material | EPDM. Fast Flash® Base. SBS. |
Form | Cable flashing Ø90 with detachable top. Cable flashing Ø90 with detachable top and with pipe below the flange. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Denmark |
Country of product manufacture | Denmark |
Manufacturing plant location | |
Material | EPDM Styrene butadiene |
Expected Life | Ten year |
Literature
Literature type
Flat Roofing
Commercial Cable entries 32mm to 160mm
