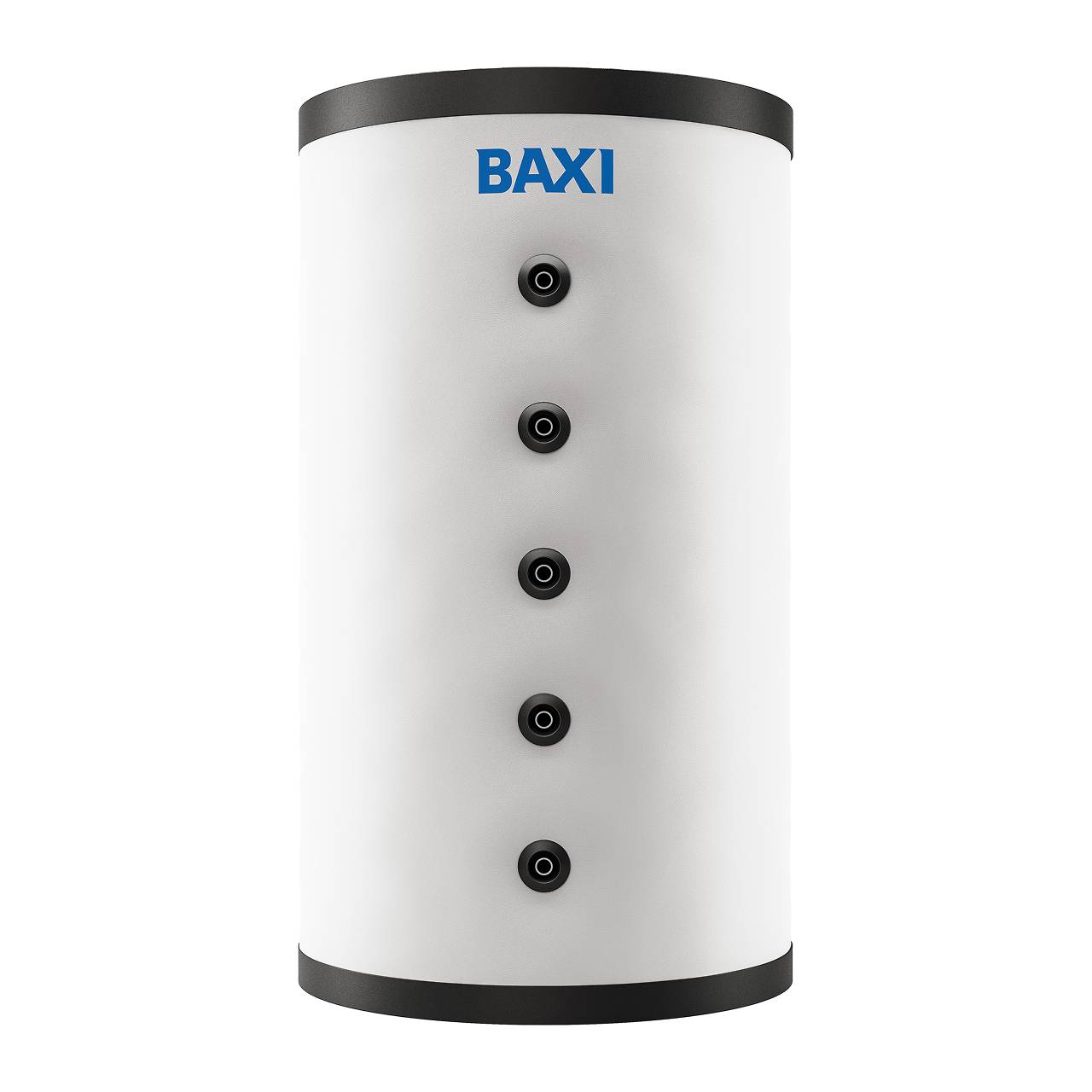

Commercial Thermal Stores
Verified by manufacturer 2 days ago
1000 L
1000 L
Commercial thermal stores available in capacities from 750 to 5000 L.
Application
Suitable for commercial applications.
Description
The Baxi range of Commercial Thermal Stores is designed to form part of both hybrid and all electric installations. The range is available in capacities from 750 to 5000 L. The entire range is manufactured with eight flow and return connections, allowing it to be operated with hybrid systems, alongside providing heat to a domestic hot water module. The connections are up to 4" to accommodate the high flow rates.
Features and benefits:
- Capacities from 750–5000 L.
- Removable Insulation jackets provided.
- Up to 4" connections to manage high system flow rates.
- Eight flow and return connections for use with hybrid systems.
- Two year parts and labour warranty.
- High performance insulation to minimise heat loss.
- Optional 10 kW heating element (7871395).
- Tested in accordance with BS EN 12897.
General information
Color | White |
Finish | Powder-coated |
Material | Steel PVC Polyethylene Polystyrene |
Shape | Circle |
Width | 1010 mm 1130 mm 1280 mm 1320 mm 1470 mm |
Height | 1765 mm 2075 mm 2245 mm 2565 mm 2360 mm |
Warranty description | Two year Guidance for specification option: Parts and labour warranty. |
Uniclass | |
CAWS | S90/140 Direct hot water storage supply S90/370 Direct hot water storage cylinders |
SKU Code | 7897087 |
Specification data - Buffer vessels
Classification data | |
Material | Carbon steel. |
Arrangement | Vertical. |
Duty | |
Capacity | 1000 L. |
Working temperature | 95℃ (maximum). |
Working pressure | 6 bar (maximum). |
Accessories | Not required. 10 kW heating element - 7871395. |
Finish | Powder-coated, RAL 9010. |
Insulation material | Polyethylene (PE) and polystyrene (PS). |
Insulation thickness (minimum) | 110 mm. |
Casing | White PVC shell roll. |
Weight | 1115 kg (full); 115 kg (empty). |
Height | 2140 mm. |
Diameter | 1130 mm (insulated). |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Steel PVC Polyethylene Polystyrene |
Recyclability | Manufacturer guidanceThe units are largely recyclable:
|
Expected Life | 25 year |
Literature

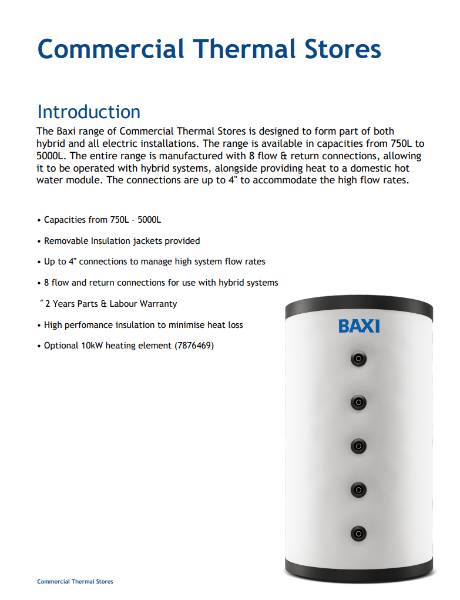

Commercial Thermal Stores Specification Guide
