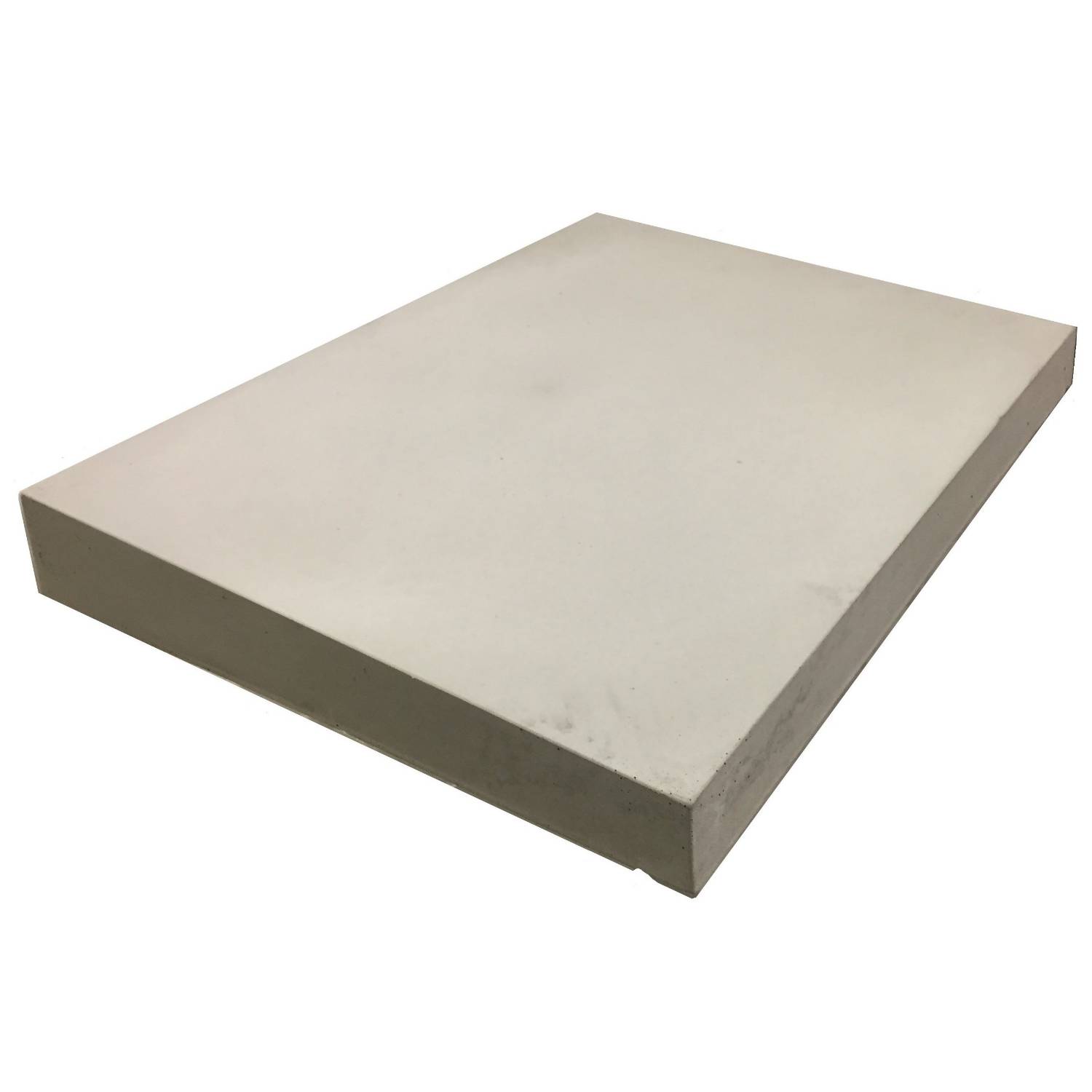

Concrete Coping Stones
Verified by manufacturer 3 months ago
Fibre reinforced concrete coping stones.
Application
Suitable for use on garden walls, parapet walls and flat roof applications.
Description
Includes single weathered (designed to shed rainwater to one side of the wall), twice weathered and flat coping stones (sheds water to both sides).
- Drip checks on both sides 20 mm in from edge.
- Available in a range of colours, sizes and thicknesses.
- Coping Stone adhesive is available, consult manufacturer for details.
General information
Color | Grey Beige |
Finish | Smooth |
Material | Sand Granite Cement |
Shape | Rectangle |
Length | 600 mm |
Width | 175 mm 230 mm 300 mm 375 mm 450 mm |
Height | 50 mm |
Warranty description | Five year |
Uniclass | |
CAWS | F31/105 Precast |
SKU Code | 00272 |
Product range |
Specification data - Concrete coping units
Classification data | |
Appearance | To match existing. |
Coping type | Single weathered. Twice weathered. Flat. Manufacturer guidancePlease consult manufacturer's literature for compatible sizes with each type. |
Dimensions | 175 x 600 mm. 230 x 600 mm. 300 x 600 mm. 375 x 600 mm. 450 x 600 mm. |
Material: | Silica sand, high strength granite aggregate and high strength 52.5 N cement. |
Colour | Dark grey. Light grey. Buff. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Sand Granite Cement |
Recyclability | 0 |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
Literature
Literature type
Cope Stone Adhesive - Data
Cope stone - Fasteners - Data
Concrete Coping Stone - Data
Coping Stone - Fastners - Install Guide
