Continuous Removable Doorstop

Verified by manufacturer 1 month ago

RDS-01

Intastop Ltd Variant:

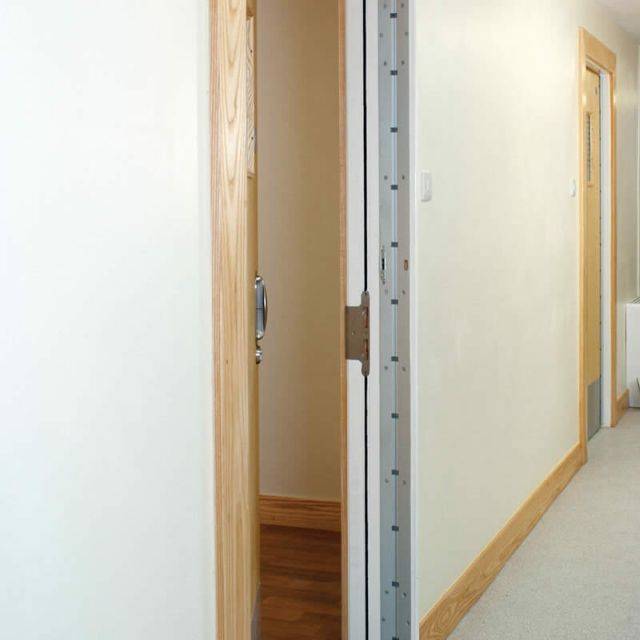

Continuous Removable Doorstop provides quick emergency outward opening.

Jump to:
+44 (0) 1302 364 666 Website

Application

Suitable for pivot or floor sprung hinges as well as Intastop’s Double Swing Hinge.

Description

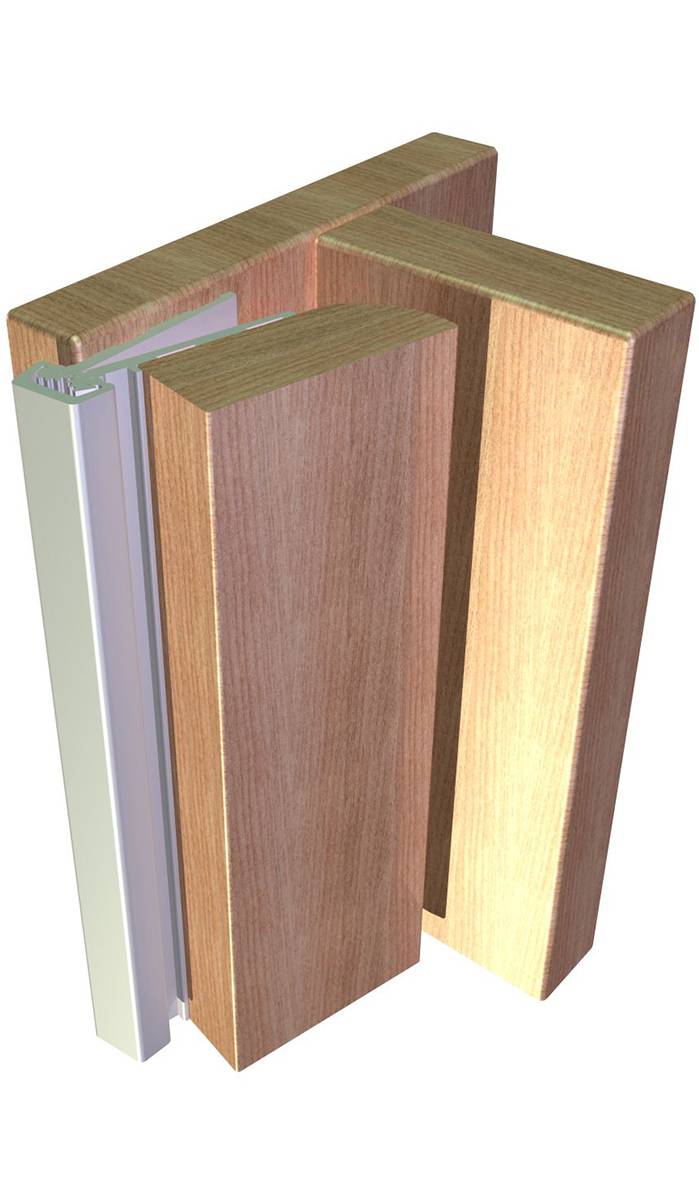

The Removable Doorstop provides quick emergency outward opening operation of doors that normally open inwards, helping to resolve a number of problem areas including the elimination of barricade situations. This full-length, fire rated doorstop is ideal for bedroom and ensuite doors in psychiatric accommodation, nursing homes and many disabled facilities including toilet doors. Based upon Intastop’s experience in the reduced ligature market and designed in conjunction with a leading Mental Health Trust, the Removable Doorstop is suitable for pivot or floor sprung hinges as well as Intastop’s Double Swing Hinge.


Features:

  • Secure dual point locking system.
  • Anti-ligature tested to DHF TS 001: B4 (0.5 mm test wire).
  • Fire tested to BS 476-20 and -22 for 30 minutes.
  • Achieved severe duty impact rating DD171.
  • Greater radius/ curved backing to allow door to open under extreme force.
  • Secure design; stop section permanently attached to the hinge.


Benefits:

  • Easy access in the event of a barricade.
  • Helps reduce patient suicide.
  • Reduces on overall maintenance and lifecycle costs.
  • Fast/ safe response in an event of a barricade.


Disclaimer: Please note that Intastop offers a range of measures designed to reduce the risk of self-harm or suicide, and does not offer any guarantee that it will not take place. The solutions have been designed as a deterrent only.

General information

Finish

Satin

Material

Aluminium

Guidance for specification option:

Hinge.

MDF

Guidance for specification option:

Timber stop.

Length

2100 mm

2400 mm

Uniclass

Pr_30_36_33_24 Door stopsPrimary

CAWS

L20/410 Wood doorsets

L20/420 Wood doorsets

L20/430 Wood doorsets

L20/480 Doorsets

L20/55 Doorsets

P21/50 Door stops

P21/720 Door stops

Product range

Doorstops

Specification data - Door stops

Form

4 mm spindle, primed tulipwood.

Length

2100 mm.

2400 mm.

Material/ Finish

Satin anodized aluminium (SAA).

Guidance for specification option:

Primed tulip wood, other hardwood timbers available on request.
