Corporate® W20 Windows

Verified by manufacturer over a year ago

Bottom hung

Crittall Windows Ltd Variant:

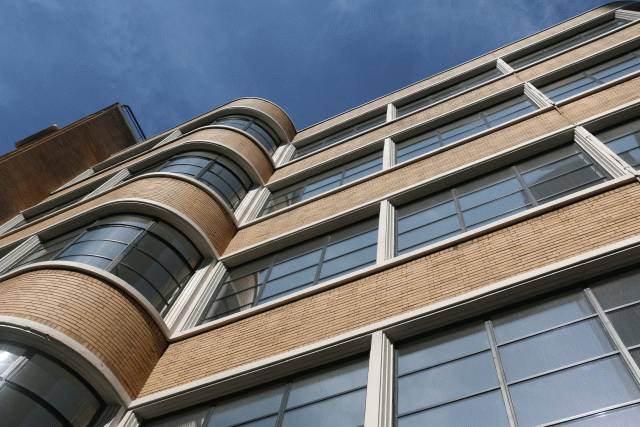

A window and door range that offers great versatility in size and shape. The extensive range of profiles allows the creation of many styles including elaborate coupled assemblies.

Jump to:
+44 (0)1376 530800 Website

Application

Particularly suitable for use in conservation areas.

Description

A range of purpose made windows, manufactured from W20 steel sections which offers versatility in both size and shape.


Features and benefits:

  • The ability to reflect older styles - and the slim frame members - make this range particularly acceptable for use in conservation areas.
  • Matching doors are available in the Corporate® W20 range to provide a total system solution - hot-dip galvanized and polyester powder coated doors match the slim sightlines of the windows.
  • If not direct fixed, fixing brackets are designed to be bolted to frame and screw fixed to structure.
  • Fixing brackets, screws and bolts, etc. are supplied by Crittall as part of the window frame.
  • The type of bracket will be determined by the manufacturer after receipt of order, in consultation with the main contractor and architect.
  • Glazing up to 16.4 mm thick can be accommodated.
  • Delivered unglazed for site glazing. Crittall can also supply glazing units.
  • The thickness of glazing units will determine the types of gaskets and beads supplied.

General information

Color

-

Manufacturer guidance

Available in a wide range of RAL and BS colours.

Finish

Galvanized

Powder-coated

Guidance for specification option:

Duralife polyester powder coated, available in gloss, matt or satin finish.

Material

Steel

Guidance for specification option:

Hot rolled mild steel.

Shape

Square

Rectangle

Circle

Other

Guidance for specification option:

Curved on plan, curved on elevation, raked head.

Width

1300 mm

1525 mm

1700 mm

1800 mm

1830 mm

Show more

Manufacturer guidance

All maximum sizes are given for guidance purposes only. They assume the use of standard hardware specified for each type. Maximum sizes may not be achievable when heavy glass is used. Consult Crittall for advice.

Height

1200 mm

1500 mm

1700 mm

1830 mm

2440 mm

Show more

Manufacturer guidance

All maximum sizes are given for guidance purposes only. They assume the use of standard hardware specified for each type. Maximum sizes may not be achievable when heavy glass is used. Consult Crittall for advice.

Uniclass

Pr_30_59_98_83 Steel window unitsPrimary

CAWS

L10/310 Steel windows

L10/20 Steel windows

Specification data - Steel window units

Dimensions and configurations

Bottom hung.

Frame

-

Material

Hot rolled mild steel.

Finish as delivered

-

Coating

Galvanized and Interpon D36 polyester powder coated.

Colour

Guidance for specification option:

RAL and British Standard colours as standard, insert requirements

Glazing or infill

-

Requirements

Delivered unglazed for site glazing.

Crittall can also supply glazing units.

Hardware

Guidance for specification option:

A range of casement handles and stays to suit window opening configurations.

Fixing features

Guidance for specification option:

The thickness of glazing units will determine the types of gaskets and beads supplied,.

Size

Guidance for specification option:

Insert requirement:

  • Maximum width – 1800 mm.
  • Maximum height – 1200 mm.
  • Maximum perimeter – 6000 mm.

Manufacturer guidance

All maximum sizes are given for guidance purposes only. They assume the use of standard hardware specified for each type. Maximum sizes may not be achievable when heavy glass is used. Consult Crittall for advice.

Glazing

Single glazed.

Guidance for specification option:

Up to 16.4 mm thick.

Double glazed.

Guidance for specification option:

Up to 16.4 mm thick.

Texture

Matt (standard).

Gloss.

Satin.

Manufacturer guidance

Galvanized and Interpon D36 polyester powder coated in a range of colours in matt finish. Satin or gloss finishes can be supplied.

Accessories

Coupling bars.

Guidance for specification option:

 Designed to suit frame size and wind load.

Integral glazing bars.

Pressed metal sill.

Thumb-latch.

Trickle ventilator.

Ironmongery

Guidance for specification option:

A range of casement handles and stays to suit window opening configurations. Consult manufacturer and insert requirements.

Sustainability data

Contains Red List materials

No

Country of material origin

Switzerland

Guidance for specification option:

Steel.

Country of product manufacture

United Kingdom

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

kg CO₂ eq/unit

Self declared

Guidance for specification option:

No data available.

Recyclability

100%

Guidance for specification option:

Recyclable steel.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

90 %

Guidance for specification option:

90% plus.
